STM32F103ZET6 512K Flash Development Board   3.2
  • STM32F103ZET6 512K Flash Development Board   3.2
  • STM32F103ZET6 512K Flash Development Board 3.2" TFT LCD

  • SKU:14779
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 6
  • Price:$60.66
  • Price in reward points: 607
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $59.45 $58.23 $56.41 $53.99 Contact US

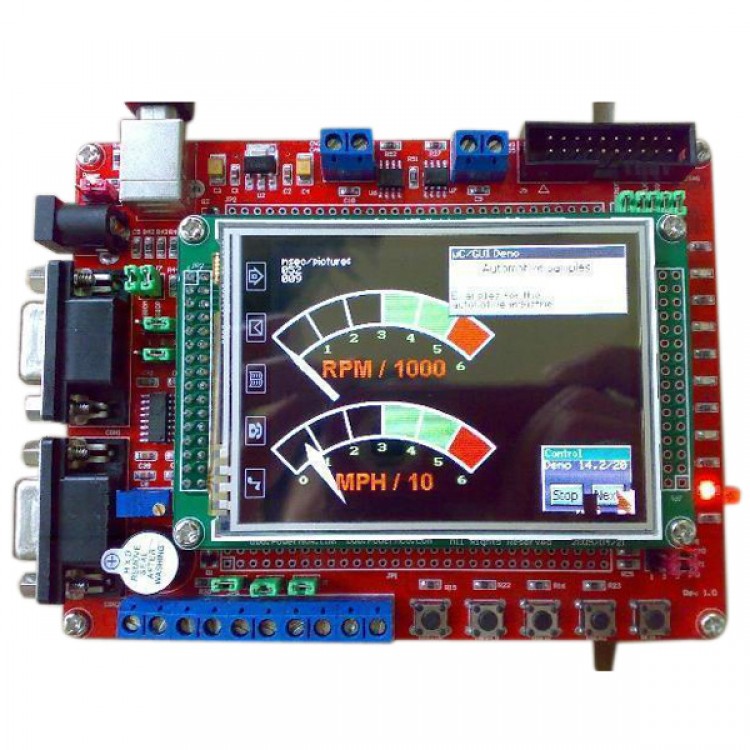

STM32F103ZET6 development board + 3.2" TFT LCD

STM32 development board based on STMicroelectronics (ST) has introduced the highest series of ARM CortexM3 chip
configuration as the core component STM32F103ZET6


 *CPU: STM32F103ZET6; (LQFP144-pin, on-chip integrated 512K flash, 64KRAM, 12Bit A / D, D / A; PWM, CAN, USB,
SDIO, FSMC and  other resources)
 *Outside the expanded board 512K SRAM, 2M NOR FLASH (on-board support for the largest 1024k SRAM, 16M of NOR FLASH) to meet
 the large capacity data acquisition, processing and analysis requirements
 Board outside 256M NAND FLASH expand to meet the rich color of the picture storage, data storage form, document management
 applications and so on
*With a 2.8-inch TFT true color touch screen module or true color 3.2 inch TFT touch screen module (the user to choose from), FSMC
 control, color touch module configuration ADS7843(or RSM1843 instead) controller, support for a SD card (SPI mode) can be used to store pictures, in support
 of AT45DBxxx of a DATA FLASH (can be used for storage)
* All the way CAN communication interface, the drive chip SN65VHD230
* Two-way RS232 interface
*All the way RS485 communication interface
* An SD card connector SDIO control
* A I2C memory interface, the standard 24LC02 (EEPROM)
*A SPI memory interface, the standard AT45DB161D (DATA FLASH)
* All the way adjustment potentiometer ADC input
* Three-way leads to ADC input terminals
* Two-way terminal block PWM output leads
* Two-way leads to DAC output terminals
* A buzzer, the five users LED lights, a power indicator light, a USB communication indicator, four user keys, a system reset button
* Power Select jumper to support the external 5V power supply, USB power supply or power supply by JLINK
*Board Size: 13CM X 10CM
* All I / O port through the standard pitch leads 2.54MM

Rich in routines Not only functional modules MDK-board test-source: LED lights into the water six examples, RTC, according to health, PWM,
 buzzer, USB, SD card, ADC, DAC, 12C, RS232, RS485 pass, CAN, touch-screen test, TFT LCD screen test .....
but also there are successful transplantation UCOS2, UCGUI a number of routines can be directly applied to industrial control equipment or
 hand-held instrument of human computer interface design, so that your product from the monotony of black and white, into the colorful world! Inspire your design inspiration

Package includes:
1.STM32F103ZET6 development board *1
2.3.2" TFT Touch Screen LCD*1
3.DB9 Serial Converter *1
4.USB Cable *1
5. CD*1
