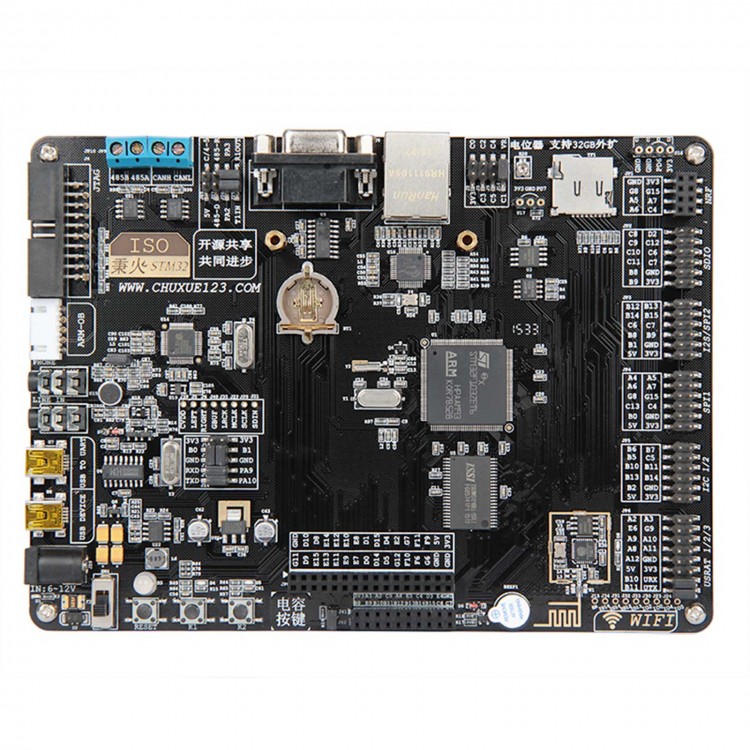

STM32 Development Board ARM Board M3F103 WIFI Module Phone APP Control 51 SCM DIY

STM32 Development Board ARM Board M3F103 WIFI Module Phone APP Control 51 SCM DIY

Specifications:
- Size: 17*13cm
- PCB: 4 layers
- CPU: STM32F103ZET6,144PIN,512K FLASH,64K RAM
- WIFI: ESP8266, UART interface
- Ethernet:W5500, integrated TCP/IP
- Bluetooth: For external HC05 bluttooth module
- Antenna: External 2.4G wireless NRF24L01 module
- SRAM: IS62WV51216BLL-55TLI,1M bytes(8Mbit)
- FLASH: W25Q64, capacity 8M bytes
- EEPROM: AT24C02, capacity 256 bytes
- SD card: External expansion up to 32 Gb TF card
- RTC: 1*CR1220 battery mount
- Power input: Support DC6-12V, USB 5V input
- Power output: LDO: AMS1117-3.3, can output 3.3V and 5V
- Fuse: 1*500MA self recovery fuse
- MP3: VS1053, support playing and recording
- Buzzer: 1* Active buzzer
- 1* 100K Potentiometer
- 1* Reset key,2* key,1*capacitor key
- 1* RGB LED,1*power LED,1*WIFI LED,2*LED
- Can connect to external 3.2"/5" RGB LCD Screen
- 1 channel USB to seriel port (CH340), 1 channel 232 DB9 seriel port (MAX3232)
- 1 channel UB -device interface for USB communication
- CAN: 1 channel TJA1050
- 485: 1 channel MAX485

- Camera: Can be external expansion 30W color OV7725 camera module
- Temperature an dhumidity: for DHT11 module
- Can connect to HS0038 infrared RECEIVER
- GPIO: SDIO,SPI1/2,I2C1/2,USART1/2/3, UART4/5

Download:
- 2 download port: 1* SWD interface,1*JTAG interface
- Support simulator like DAP/JLINK/ULINK2/ST-LINK/ARM-OB
- Support sereil ISP download by oen button

TIPS: Not include Screen.

Package list:
- 1 x STM32 Development Board
- 1 x CD
- 1 x USB cable
