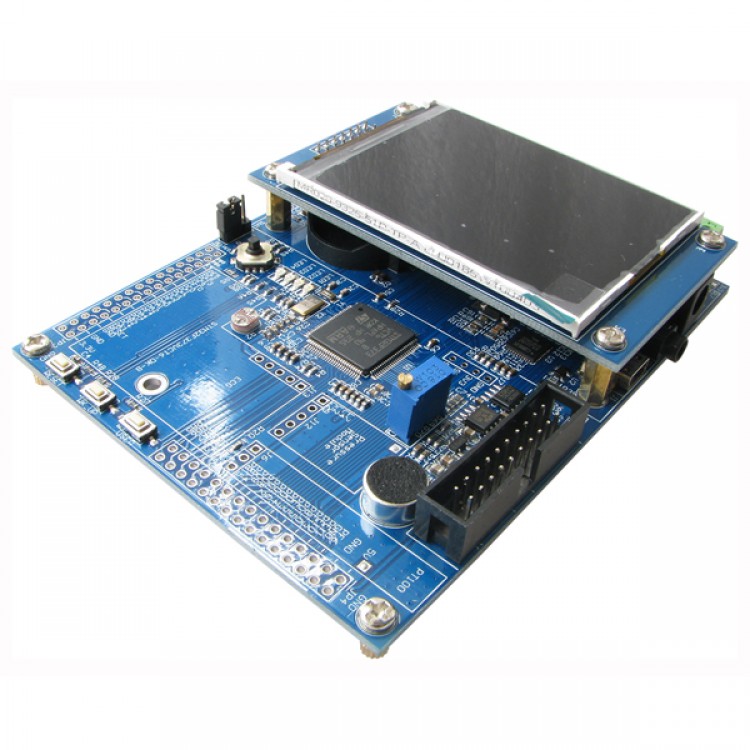

STM32F373 Development Kit Cortex M4 STM32F373VCT6 with 2.8 inch TFT LCD Screen
  • STM32F373 Development Kit Cortex M4 STM32F373VCT6 with 2.8 inch TFT LCD Screen
  • STM32F373 Development Kit Cortex M4 STM32F373VCT6 with 2.8 inch TFT LCD Screen
  • STM32F373 Development Kit Cortex M4 STM32F373VCT6 with 2.8 inch TFT LCD Screen
  • STM32F373 Development Kit Cortex M4 STM32F373VCT6 with 2.8 inch TFT LCD Screen
  • STM32F373 Development Kit Cortex M4 STM32F373VCT6 with 2.8 inch TFT LCD Screen
  • STM32F373 Development Kit Cortex M4 STM32F373VCT6 with 2.8 inch TFT LCD Screen
  • STM32F373 Development Kit Cortex M4 STM32F373VCT6 with 2.8 inch TFT LCD Screen
  • STM32F373 Development Kit Cortex M4 STM32F373VCT6 with 2.8 inch TFT LCD Screen

  • SKU:26074
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 7
  • Price:$73.90
  • Price in reward points: 739
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $72.42 $70.94 $68.73 $65.77 Contact US

STM32F373 Development Kit Cortex M4 STM32F373VCT6 with 2.8 inch TFT LCD Screen

Description
 - ARM 32-bit Cortex-M4 CPU
 - 72 MHz max. frequency, 1.25 DMIPS/MHz
 - FPU (floating-point unit)
 - MPU (memory protection unit)

Memories
 - 256 Kbytes Flash memory
 - 32 Kbytes SRAM with HW parity check



Clock management
 - 4 to 32 MHz crystal oscillator
 - 32 kHz oscillator for RTC with calibration
 - Internal 8 MHz RC with x 16 PLL option
 - Internal 40 kHz oscillator

Calendar RTC
 - Alarm, periodic wakeup from Stop/Standby
Reset and supply management
 - 2.0 to 3.6 V
 - POR, PDR and PVD



Low power
 - Sleep, Stop, and Standby modes
 - VBAT supply for RTC and backup registers

Debug mode
 - serial wire debug (SWD), JTAG
 - Cortex-M4 ETM

DMA
 - 12-channel DMA controller
 - Peripherals supported: timers, ADCs, SPIs, I2Cs, USARTs and DACs
- Up to 3 x 16-bit Sigma Delta ADC, up to 19 single/ 10 diff channels
- 1 x 12-bit, 1 us ADC with separate analog supply from 2.4 V to 3.6 V
- Up to 2 fast rail-to-rail analog comparators

Temperature sensor
- Up to 3 x 12-bit DACs
- Support for up to 18 capacitive sensing keys
- Up to 84 fast I/O ports
- mappable on external interrupt vectors
- several 5 V-tolerant 14 timers
 - 2 x 32-bit timer and 3 x 16-bit timers
 - 2 x 16-bit timers with up to 2 IC/OC/PWM or pulse counter
 - 4 x 16-bit timers with up to 1 IC/OC/PWM or pulse counter
 - 2 x watchdog timers (independent, window)
 - SysTick timer: 24-bit downcounter
 - 3 x 16-bit basic timers to drive the DAC

Communication interfaces
 - CAN interface (2.0B Active)
 - USB 2.0 full speed interface
 - 2 x I2C with 20 mA current sink to support Fast mode plus
 - Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control).
 - Up to 3 SPIs, with muxed I2S
 - CRC calculation unit, 96-bit unique ID
 - CEC bus interface

Package list:
- STM32F373VCT6 Development board x1
- 2.8inch TFT lcd x1
- Serial port extension cord x1
- Mini USB Cable
- USB to DC2.1power xable x 1
- CD  x 1
