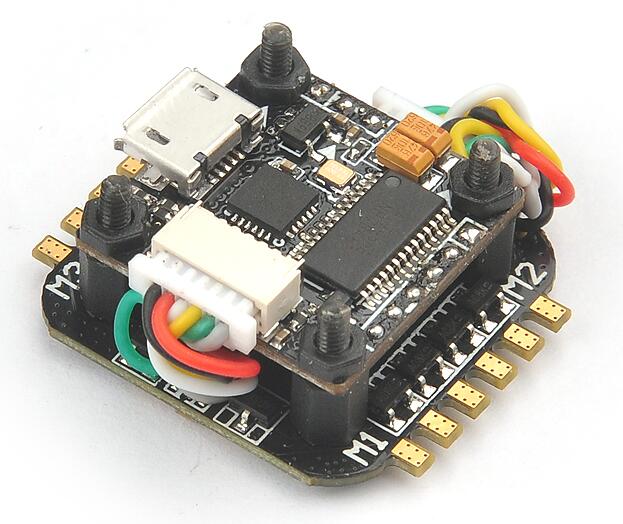

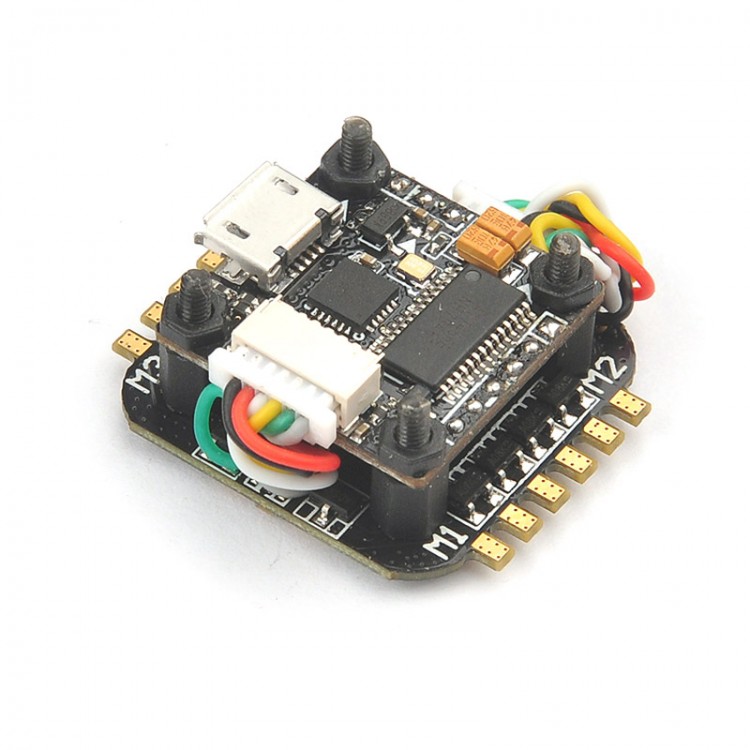

Super_S F4 Flight Controller Board Built-in Betaflight OSD 4 In 1 6A BS06D BLHeli_S ESC
  • Super_S F4 Flight Controller Board Built-in Betaflight OSD 4 In 1 6A BS06D BLHeli_S ESC
  • Super_S F4 Flight Controller Board Built-in Betaflight OSD 4 In 1 6A BS06D BLHeli_S ESC
  • Super_S F4 Flight Controller Board Built-in Betaflight OSD 4 In 1 6A BS06D BLHeli_S ESC
  • Super_S F4 Flight Controller Board Built-in Betaflight OSD 4 In 1 6A BS06D BLHeli_S ESC
  • Super_S F4 Flight Controller Board Built-in Betaflight OSD 4 In 1 6A BS06D BLHeli_S ESC

  • SKU:54163
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 3
  • Price:$32.43
  • Price in reward points: 324
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $31.78 $31.13 $30.16 $28.86 Contact US

Super_S F4 Flight Controller Board Built-in Betaflight OSD 4 In 1 6A BS06D BLHeli_S ESC

Product Description:
- Super_S F4 flight controller Intergrated OSD Blheli_S Four in One ESC 2S brushless FPV
Omnibus F4 flight controller,use STM32F405RGT6 processor,high efficiency,quick calculation,
- Intergrated Betaflight OSD with MPU6000,faster acceleration response,support DSHOT,Oneshot125,quip with 16mmx16mm BLHELI_S Four in One ESC.

Flight controller:
- Item name: Super_S F4 flight controller board Built-in Betaflight OSD
- Size: 20*20mm
- Mounting hole: 16*16mm
- Diameter: 2mm
- Weight: 2.3g
- Processor: STM32F405RGT6
- Sensor: MPU-6000 ( connected by SPI)
- Firmware version: betaflight_3.1.7_OMNIBUSF4SD
- Built-in ESC: 5V/0.5A
- Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
- Power supply: 2S lipo battery ( 6.5V-8.4V)
- Suitable for 60mm-80mm mini brushless FPV Quadcopter frame

ESC:
- Item name: Super_s 4 In 1 6A BLHeli_S ESC
- Size: 25x29mm (includes solder pad)
- Mounting holes: 16x16mm, φ2mm
- Weight: 3g
- Input voltage: 2S lipo
- Con. Current: 6A
- Peak Current: 10A (5S)
- Firmware: BLHELI_S
- Processor: SILABS EFM8BB21F16G
- BEC: NO
- Driver: 3 in 1 MOS
- Supports Dshot Oneshot multishot

Features:
- Support programmable LED Sprit (turn off transponder before using)
- Support BLheli/BLHELI_S suite Pass-through ready
- Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Default Dshot600
- Built-in voltage detection, alarm
- Built-in Betaflight-OSD

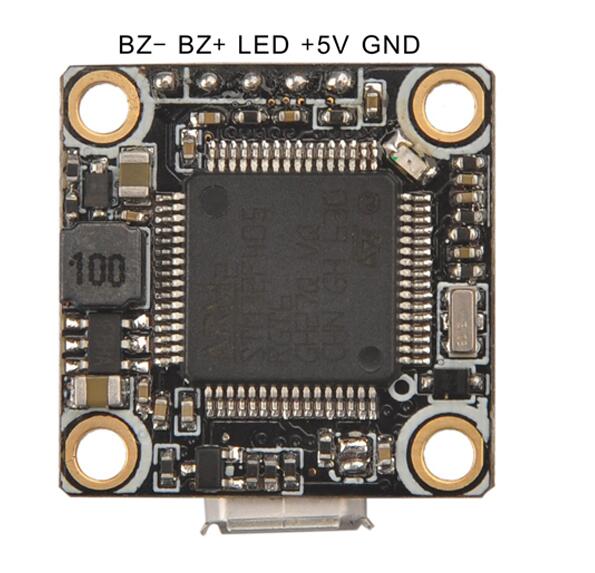

- Buzzer solder pin
- LED_STRIP connector

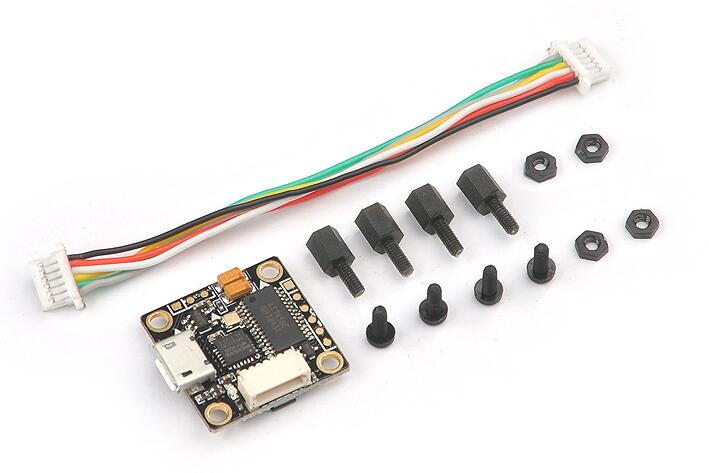

Package included:
- 1 x Super_S F4 flight control board
- 1 x Super_S BS06D 6A 4in1 ESC
- 1 x Connection wire
- 8 x M2*5+5 Nylon column
- 8 x M2 Nuts
- 8 x M2 Screw
