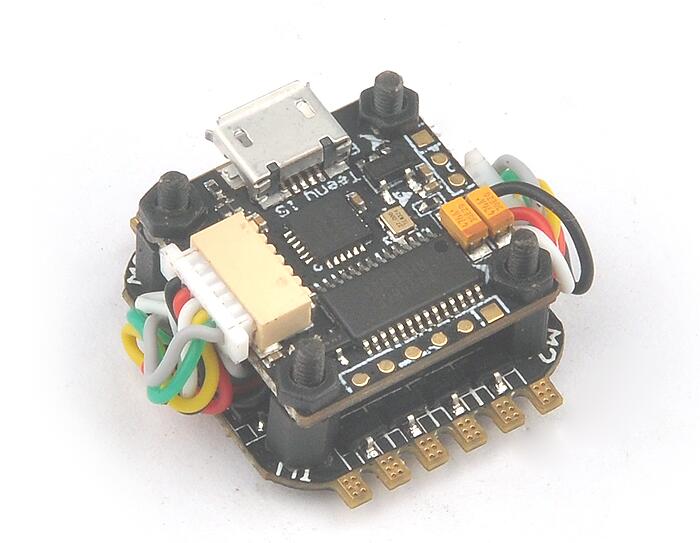

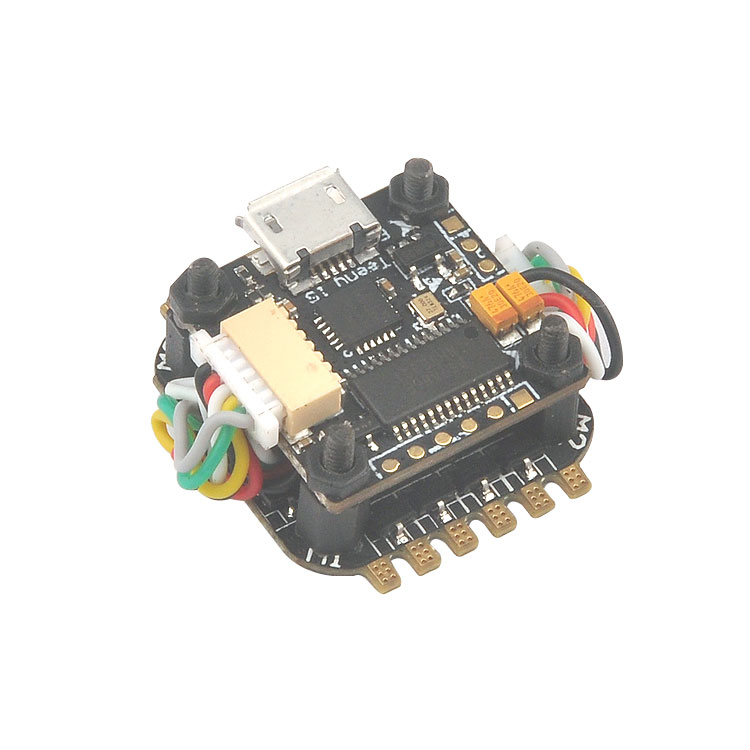

Teeny1S F4 Flight Control Board Integrated OSD Blheli_S Brushless 1S ESC for FPV Quadcopter

Teeny1S F4 Flight Control Board Integrated OSD Blheli_S  Brushless 1S ESC for FPV Quadcopter

Product Description:
- Mini Omnibus F4 Flight Control Board,STM32F405RGT6 processor,more efficient and faster calculation
- Integrated Betaflight OSD MPU6000,support DSHOT

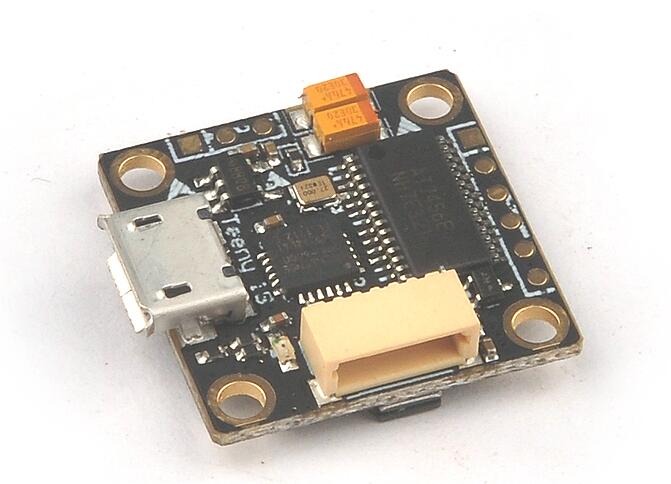

Flight controller:
- Item name: Teeny1S F4 flight controller board Built-in Betaflight OSD
- Size: 20*20mm
- Mounting hole: 16*16mm
- Diameter:2mm
- Weight: 2.2g
- Processor: STM32F405RGT6
- Sensor: MPU-6000 ( connected by SPI)
- Firmware version: betaflight_3.1.7_OMNIBUSF4SD
- Built-in SBEC: 5V/0.5A
- Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
- Power supply: 1S lipo battery ( 3.3V-4.35V)
- Suitable for 60mm-80mm mini brushless FPV Quadcopter frame

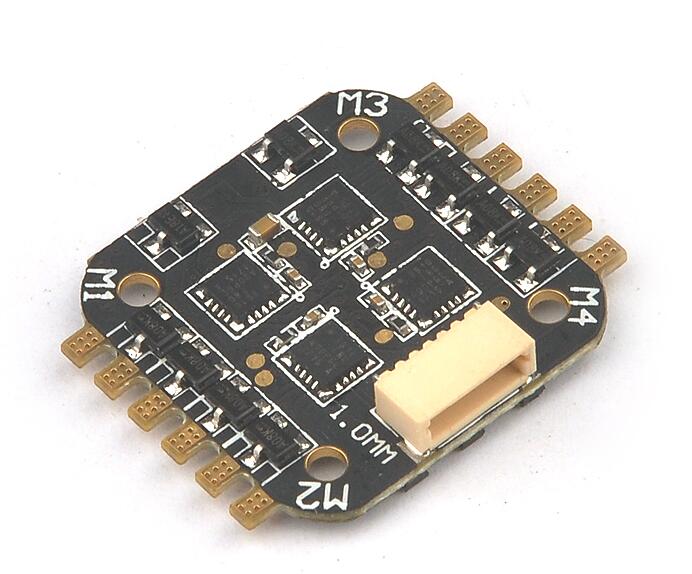

- ESC
- Item name: Teeny1s 4 In 1 6A BLHeli_S ESC
- Size: 23x28mm (includes solder pad)
- Mounting holes: 16x16mm, φ2mm
- Weight: 2g
- Input voltage: 1S lipo or 1S HV-LIPO
- Con. Current: 6A
- Peak Current: 7A (5S)
- Firmware: BLHELI_S
- Processor: SILABS EFM8BB10F8G
- BEC: NO
- Driver: 3 in 1 MOS
- Supports Dshot150 Dshot300 Dshot600 Oneshot125 Multishot PWM

Features:
- Support programmable LED Sprit (turn off transponder before using)
- Support BLheli/BLHELI_S suite Pass-through ready
- Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Default Dshot600
- Built-in voltage detection, alarm
- Built-in Betaflight-OSD
- Buzzer solder pin
- LED_STRIP connector

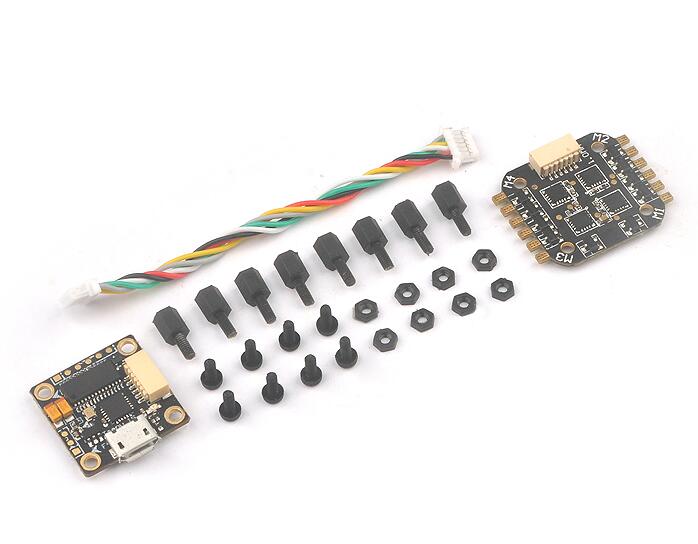

Package included:
- 1 x Teeny1S F4 flight control board
- 1 x Teeny1S BS06D 6A 4in1 ESC
- 1 x Connection wire
- 8 x M2*5+5 Nylon column
- 8 x M2 Nuts
- 8 x M2 Screw
