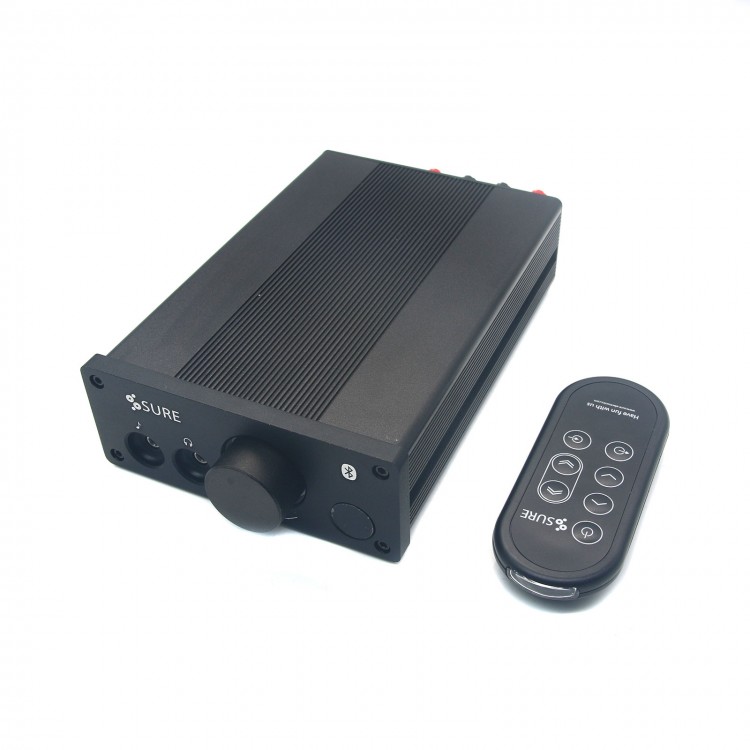

TDA7498 Class D 2x100W Bluetooth Amplifier Digital Amp Support Optical Fiber RCA Earphone Bluetooth w/Adapter

Availability: In stock, usually dispatched in 1 business day

  • Price:$162.20
  • Price in reward points: 1622 Reward Points: 16
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $158.96 $155.71 $150.85 $144.36 Contact US
Quantity:

TDA7498 Class D 2x100W Bluetooth Amplifier Digital Amp Support Optical Fiber RCA Earphone Bluetooth w/Adapter

Specification:
- Weight:1450g
- 2x100W TDA7498 DThe whole class audio amplifier
- Amplifier Machine size : 8.3 × 4.9 × 1.9inch / 211mm × 124mm × 48mm ± 2mm
- Gain:37.6 dB
- Power supply::12V ~ 36V
- Crosstalk: 70dB 1 kHz
- Total quiescent current: Typical 40mA
- Frequency response:22Hz ~ 22KHz
- The total input noise :< 50μVf = 22 Hz ~ 22 kHz
- High power output :
  100W THD = 10%, 6 Ω 36 V
  80W THD = 10%, 8 Ω 34 V
- Operating temperature range: 0~ 50 deg C
- Storage temperature range: -20~ 85 deg C
- USB card,better chip


Adapter:
- Model: WXY-PD2405
- Input: 100-240VAC 50 / 60Hz 1.5A
- Output: 24V 5A
- Weight: 304g
- Size: 150 * 65 * 38 (mm)

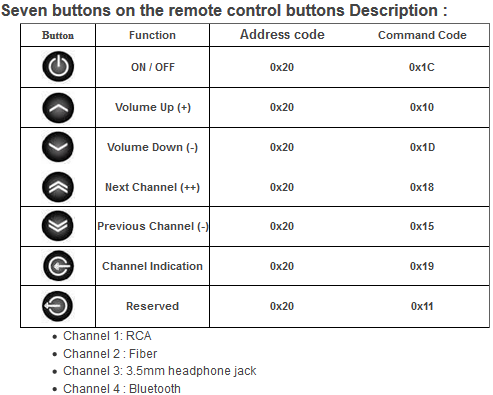

Custom seven key remote control:
- Size : 110.00 (L) × 45.00 (W) × 18.30 (H) ± 0.20mm
- Compact, rugged
- Black
- Used by two 1.5V AA batteries
- Long service time : 3 years
- Linear Transmission Distance: 8 m
- You can use buttons 100.000 times
- Low Power

Package included:
- 1 x Amplifier
