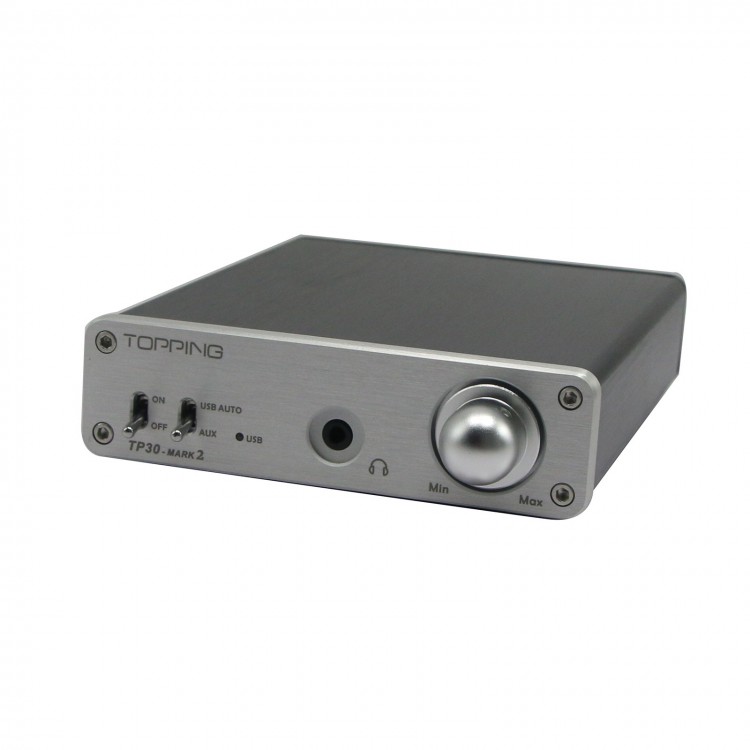

Topping TP30 MARK2 MK II USB DAC Headphone Amp TA2024 T-Amp Amplifier Upgrade Version of TP30
Topping TP30 MARK2
- The new generation from classic TP-30, TP30 MARK2. It is originated from the classic TP30, it is not just a DAC, but also an amplifier & headphone amp. There's also improvement on the design and contrl.
Headphone Output:
- impedance range 16-300Ω
- Maximum output power 140mW (RL = 32Ω, THD + N = 1%)
- The output voltage swing 10Vpp
- Minimum distortion 0.001% (RL = 32Ω, Pout = 50mW)
- Typical Distortion (/ 1kHz) 0.03%
- Frequency response flatness of 20-20kHz ± 1.2dB
- Input Sensitivity 1.0Vrms
- Noise floor <10μV
- Gain ( 1kHz) 6.5dB
Parameter:
- impedance range 4-8Ω
- Maximum output power 16.3W (RL = 4Ω, THD + N = 10%)
- 9.7W (RL = 8Ω, THD + N = 10%)
- Output Impedance 0.2Ω
- Minimum Distortion 0.003%
- Typical Distortion ( 1kHz) 0.012%
- Frequency response 20-20kHz ± 0.6dB
- Input sensitivity 390mVrms
- Noise floor <1mV
- Gain ( 1kHz) 28dB
Technical Specification:
- Analog audio input RCA * 1 (one stereo input)
- USB digital audio input interface
- Amplifier output banana jacks, BTL output
- Amp output interface 3.5mm headphone seat
- Median decoder 16bit sampling
- Decoder sampling frequency 48kHz
- Single Weight Approximately 530g
- Size (including protruding parts) deep about 17.7CM * 12.2CM * 3.8CM width height
Package Included:
- TP30-MARK2 x1
- 12V3A power adapter x1
- USB line x1
- Instructions Manual x1
