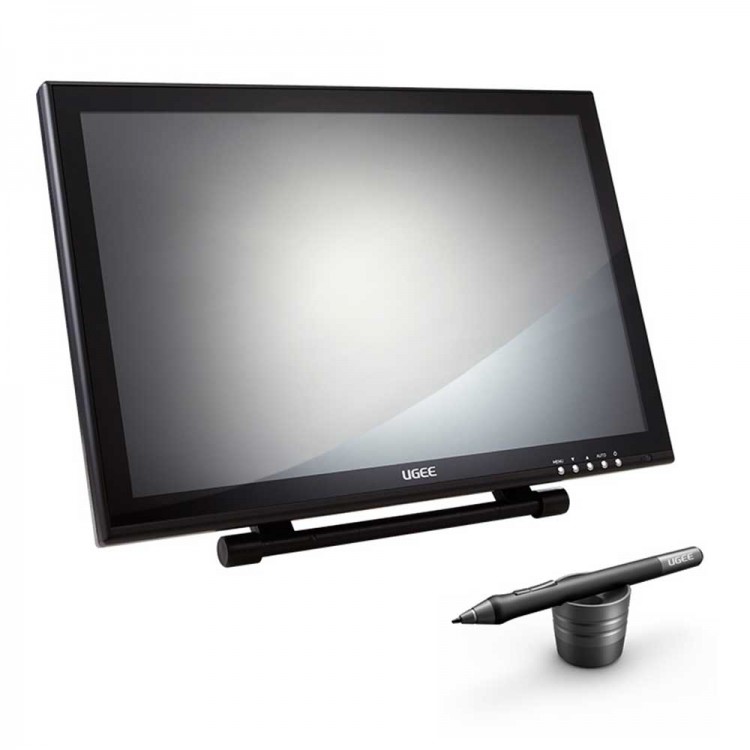

UGEE 1910B Graphic Tablet 19" Monitor Hand Written Panel LCD Screen Art Design Drawing

UGEE 1910B Graphic Tablet 19" Monitor Hand Written Panel LCD Screen Art Design Drawing

Desription:
19" LCD tablet monitor applies the new mirror design with smooth, quiet and graceful 16MS TFT LCD panels, bringing not only high brightness and contrast, but also great sense of depth and vivid visual experience.

UG-1910Badopts the technology of electromagnetic pressure sensitivity, 2048 higher levels means the excellent sensitivity and produces the best result. When you press the tips harder or ligher,it shows thicker or thinner lines accordingly.
In this way, artists control the line thickness and density easily. This UG-1910B professional graphic tablet is also an ideal assitant of multimedia teaching, it works on the same principle as a stick of chalk, while completely breaking the traditional blackboard, the platform, the school desk fixed educational teaching mode. Through displaying various resource of digitalized information instantly and editing them flexibly and simultaneouly, the multimedia teaching becomes more convenient and intuive.

Features:
- 5MS TFT LED panels, bringing high definition and high brightness visual experience
- Electromagnetic pressure sensitivity, control line thickness, color, transparency convinently
- Ideal kit for multimedia education, say goodbye to tradition education of chalk and desk forever
- Multi angle adjustable stand, flexibly setting the operation angle freely,fits various habits and needs of different artisits
- LCD is well protected by high strength touchened glass, anti-scratch and shockproof
- There are rubber covers on base and bracket, anti-skid and stable
- Low power consumption and radiation, environmental friendly

TIPS:  The charging pen needs to charge for 2 hours before its first use in case of influencing your trying.

Specification:

LCD Display
- Display Area: 402mmx255mm
- LCD Dimension: 446mm X 295mm X 60mm
- Resolution: 1440 X 900
- Response Time: 5ms
- Pixel Pitch: 0.294mm(per one triadH) x 0.294mm(V)
- Electrical Interface: Dual channel LVDS
- Support Color: 16.7M(RGB 6-bit data + HiFRC data)
- Contrast Ratio: 800:1
- Backlight Unit: 4 replaceable CCFL edge-light(top/bottom)
- Brightness: 300（cd/m2）@7.5mA
- Viewing Angle: -80°ï½ž80°ï¼ˆH）,-80°ï½ž80°ï¼ˆV）（Typical）
- Power Consumption: Working: 24.71 Watt;Standby:1 Watt
- Power Source: AC100-240V Universal
- I/O Connectors: DC power in;VGA 15-pin D-sub IN;VGA 15-pin D-sub OUT;DVI IN;USB-connector

Tablet Parameters
- Active Area: 402mm X 255mm
- Technology: Electromagnetic
- Pressure Sensitivity: 2048 levels
- Report Rate(rps): 220 reports/per second
- Resolution: 5080 LPI
- Accuracy: 0.25mm
- USB Connection Type: Integrated
- Reading Height: 15mm(Max.)
- Power Voltage: +5 Voltage
- Power Consumed: 0.05A(0.25 Watts) Max.
- Data Interface: USB Port 1.1
- Data Report Rate: 220 reports/per second
- Button of Pen: 1.Left (Pen tip) ; 2.Right(barrel backward) ; 3.Middle(barrel forward)

System Requirements:
- Operation system(Windows 2000/XP/Vista/Windows 7/8 Mac OS 10.2.6 above)
- Pentium 233MHz processor or above
- 64MB of Ram(128MB recommended)
- 128MB setup Hard disk space
- 4x Speed CD ROM or above
- An available USB port

Package contents:
- 1× UG-1910B Graphic Tablet
- 1x Power Adapter
- 1x USB Cable
- 1x P50S Pen
- 1x Pen Charging Cable
