ES121V Motion Control Mini Electric Screwdriver Cordless Repair Tool Kit 380rpm CW CCW OLED

ES121V Motion Control Mini Electric Screwdriver Cordless Repair Tool Kit 380rpm CW CCW OLED

Description:

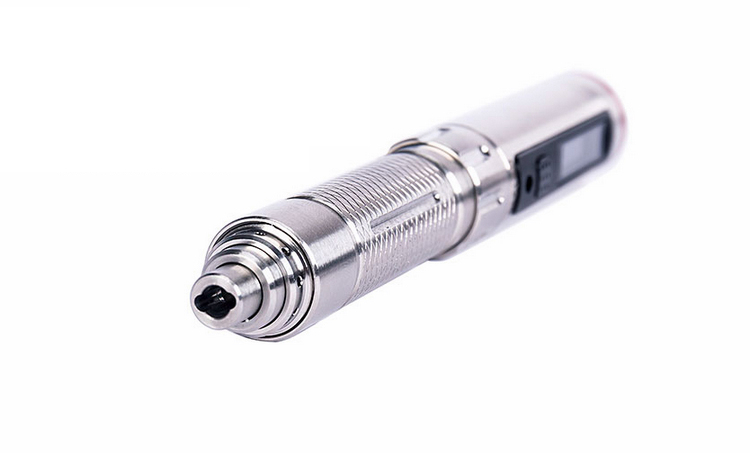

Portable high-precision 800 electric screwdriver, industrial-grade customized quality, used for mobile phone/notebook/digital electronic product maintenance and disassembly. The head socket is 800 electric head size (that is, the bottom of the head is a round 4MM with ears).

ES121V motion sensing precision electric screwdriver.

ES121V screwdriver size: full length about 131MM, diameter about 18MM. Product weight is about: 214g.

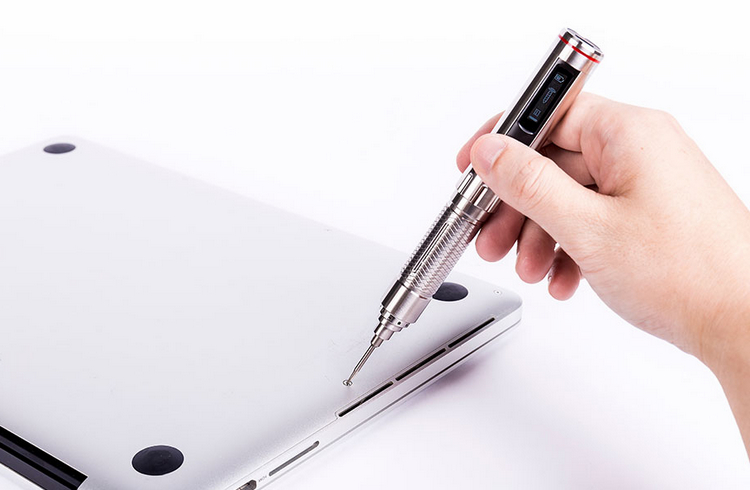

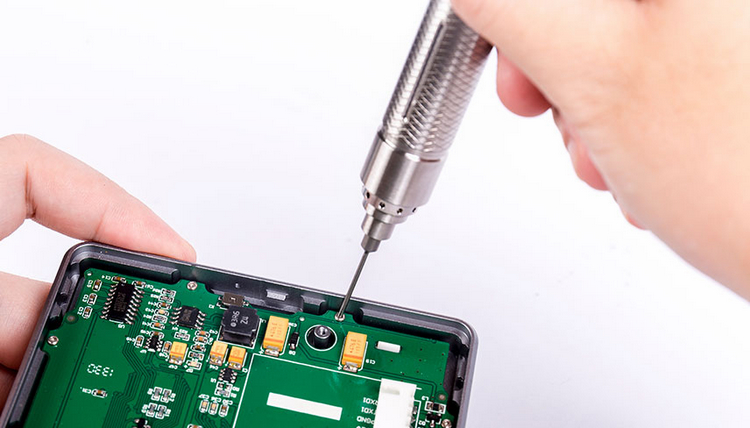

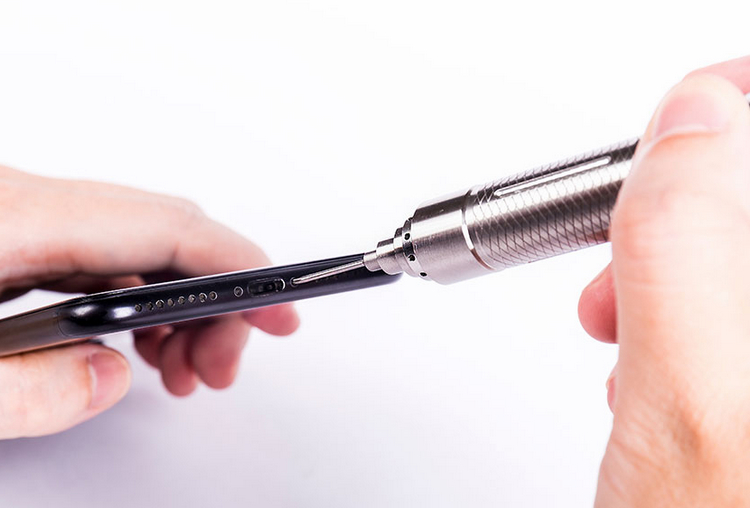

ES121V design positioning is very clear. High speed, small and medium torque, for the disassembly and assembly of screws within 2 mm and 2 mm (non-tapping screws). According to its design positioning, it is very suitable for the maintenance use of mobile phones, digital, tablet, cameras, notebooks, glasses, toys, electronic digital products and so on. Fast speed, small and medium torque can be set, to avoid twisting small screws, safe and practical.

Electric Screwdriver Operation:
Press and hold working button, and then swing your hand to the left/right to start CW and CCW rotation. Press the working button three times in succession to enter different torque gear settings, and set torque gear to meet your needs.

Features:
- The body is designed with 304 stainless steel, with strong texture, good hand feeling, exquisite workmanship, and strong durability.

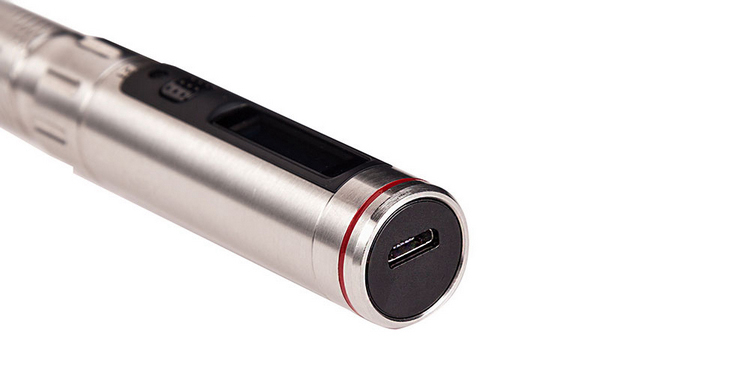

- Rechargeable via Micro-USB and can be used while charging. Fully charged in 45 minutes.
- Manual and automatic integrated protection design: Safely self-locking design, as long as the screwdriver is manually twisted, the internal self-locking will automatically open to avoid damage to motor. Electric and manual can be operated independently or simultaneously.
- 4-gear fixed torque + A automatic gear design to meet the torque requirements of small and medium-sized screws in different equipment.
- Equipped with a motion sensing chip, which controls CW and CCW rotation according to the swing direction of gesture. In A automatic transmission, speed and torque can be automatically controlled by swing speed and angle.
- Adopt high-speed motor, about 380 rpm, enough to meet the speed and efficiency requirements of mobile phone, digital products, notebook repair customers (the speed of similar electric screwdrivers is about 100 rpm).
- Electric maximum torque 1.5kgf.cm, manual torque 30kgf.cm.
- Internal firmware can be upgraded. You can download firmware in the official forum to update the latest version. Users with programming ability can increase torque and adjust torque. Open source design, very user-friendly. (The specific operation of updating the firmware, both the manual and the panel.) Update the firmware forum address: link for http://minidso.com/
- STM32 main control chip.
- 25000 rpm carbon brush motor.
- Angle speed sensor.
- Two-way overrunning clutch.
- OLED Screen: Can display torque gear, electricity, torque image value, and disassembly and assembly screw image pattern.

Package Included:

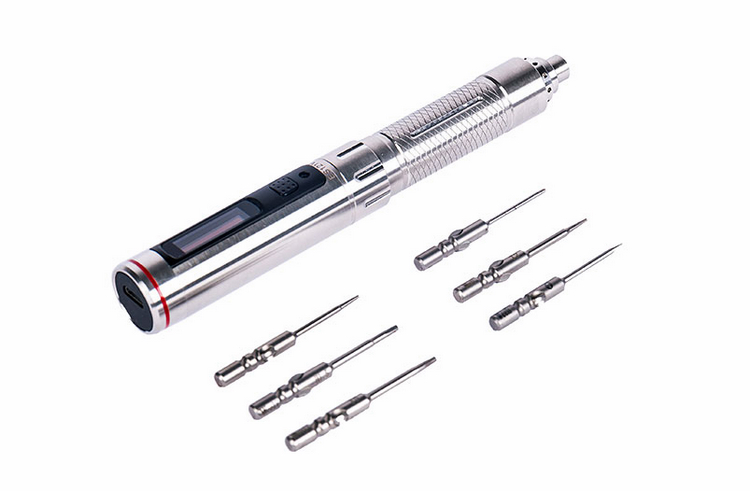

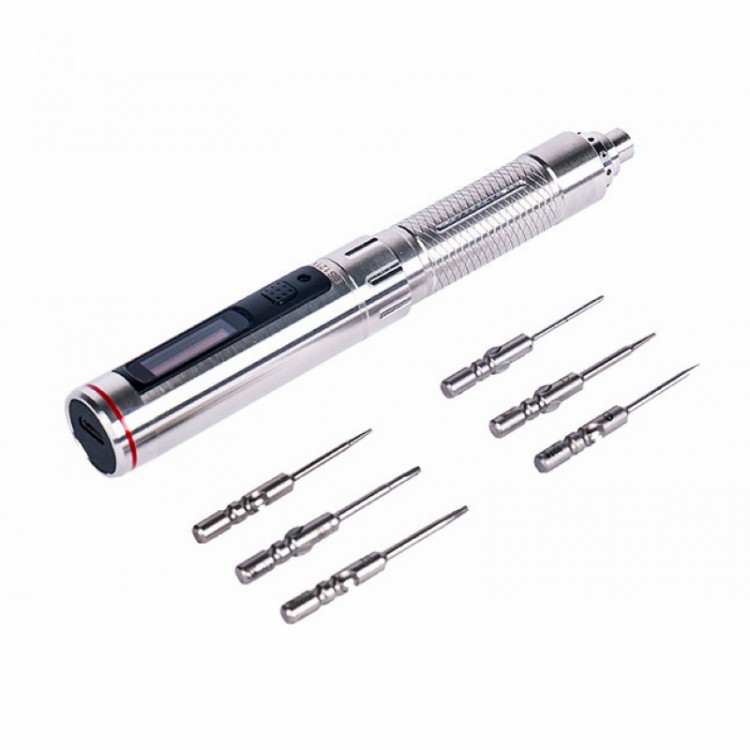

- 1 x Motion Control Electric Screwdriver Host
- 6 x Bits
- 1 x Instructions

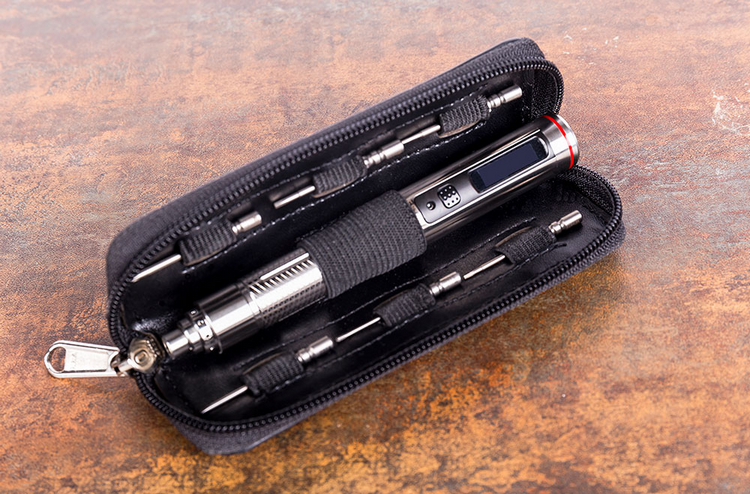

- 1 x Carrying Bag
- 1 x Cleaning Cloth
