Descriptions:
- ES120 Mini Electric Screwdriver has set a new standard for electric screwdrivers. It is an electric screwdriver with a compact structure, smart and exquisite appearance, as well as the function of motion control recognition.
- It has only the length of a Parker pen, while endowed with a comfortable design for holding, and a set of highly energy-efficient accessories. Through an OLED screen, the device displays parameters and rotation modes of motion-control recognition. Under these help, you are able to easily complete the disassembling and assembling of your digital devices.
- ES120 includes a planetary gearbox and a high-speed electric motor, with excellent support from the STM32 embedded micro-processor and angular velocity sensor. It operates at a voltage range of DC3V to 5V, and with various hexagonal screwdriver bits, the device helps you with fast disengaging and engaging of electronic products.
1. Battery low voltage reminder, low voltage protection mode;
2. User ustomized configuration parameters (such as torsion, torque, etc);
3. Open source application layer.
Performance Parameters | Hardware Parameters | ||
Operation Voltage | 3-5V | Body Material | 304 Stainless steel/Copper alloy |
No-load Speed | About 170rpm | Screen | 16*96 OLED |
Electronic Torque | 2.5kgf.cm |
Battery | 300mAh 10440 Lithium-ion battery |
Maximum Torque | 30kgf.cm (manual mode) | Lengh | 131mm |
Screwdriver Bit | 4mm hexagon | Weight | 107g(Steel)/114g(Copper alloy) |
Charging Time | 45min | Rotor | Bidirectional overrunning clutch |
Running Time | 30min (full power) | Gearbox | 1:144 Integrated planetary gearbox |
Charging Mode | Micro USB 5V Input | Motor | 25,000 rpm brush motor |
|
| Main Chip | STM32 |
|
| Sensor | Angular velocity sensor |

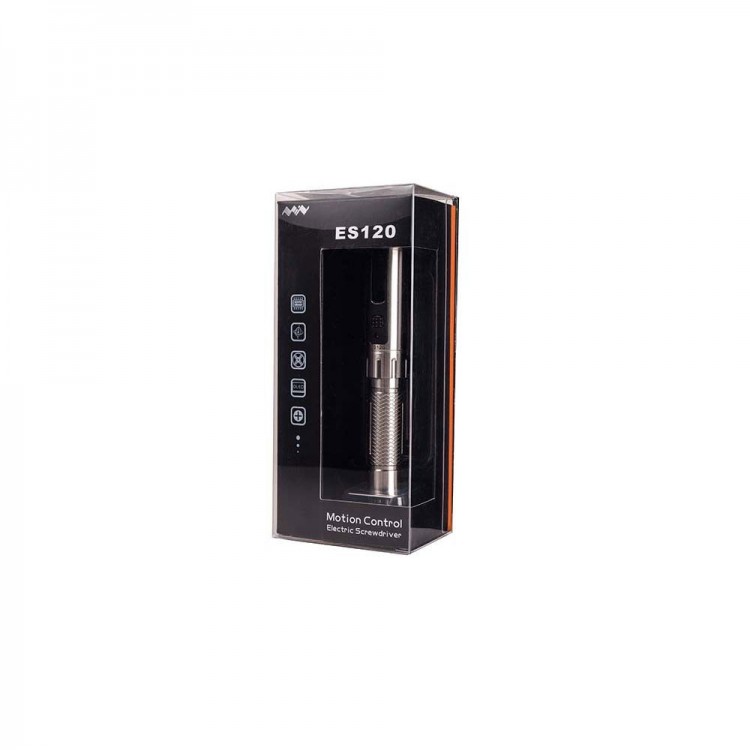

Package list:
- ES120 Mini Electric Screwdriver(Stainless Steel) ×1
- Screwdriver Bits SL2 ×1
- Screwdriver Bits PH0 ×1
- Black Portable Package ×1
