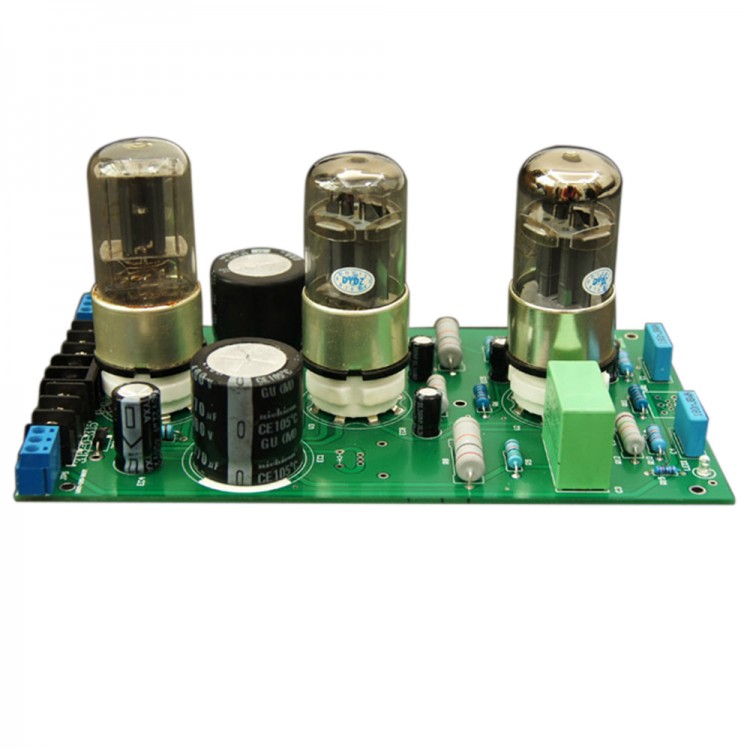

Unassembled QJ002 6N8P Preamp Amplifier Board 6Z5P Compatible with 6SN7 Kit for DIY Audio
Features:
- Five ring metal resistor
- PCB:1.6MM,10Z(35um)
- 6Z5P tube rectifier, multi-stage filtering and MOS tube IRF840 constant pressure, to provide a stable and pure DC power supply before
- Electronic tube filament adopts 3.15V-0-3.15V AC power supply,Bottom noise only 4MV
- Rectifier tube 6Z5P amplifier tube: 6N8P
- ALPS 16 type Volume potentiometer
- Two level direct coupled amplifier circuit

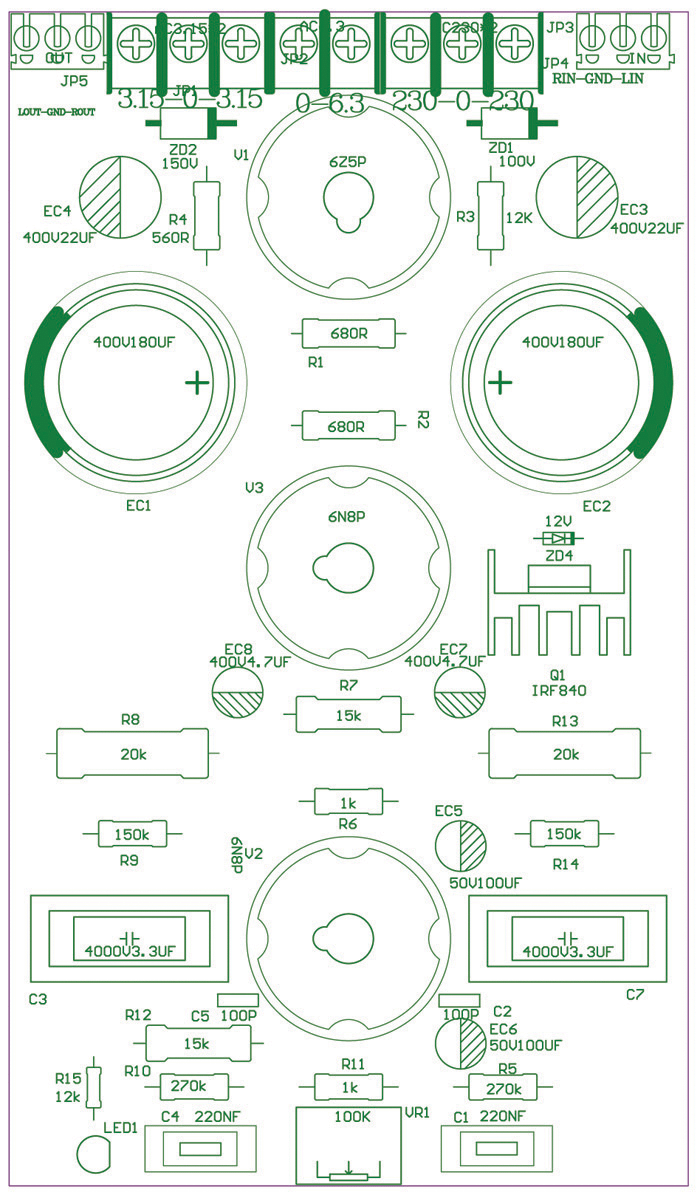

- PCB: 190*110MM
- Voltage: AC230-0-230V 60MA;6.3V-0 1A;3.15V-0-3.15V 1.8A
NOTE:
No transformer.
The kit is spart parts.

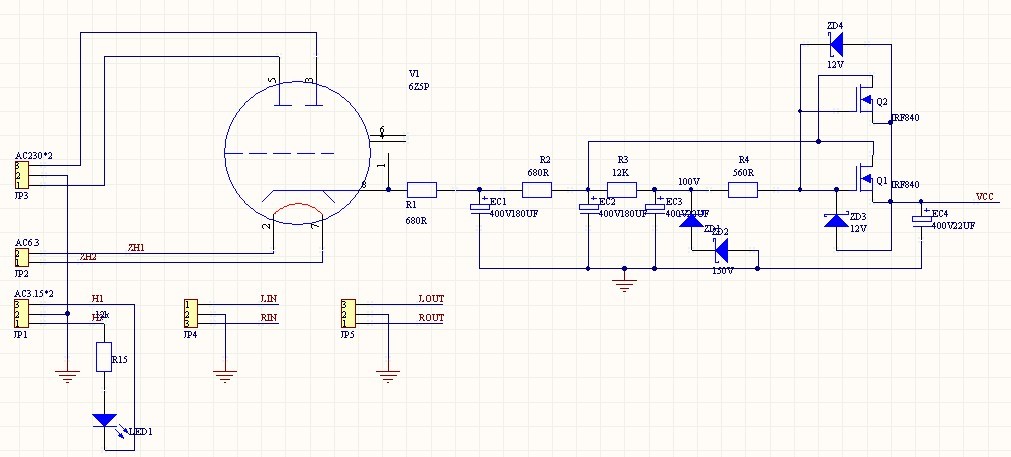

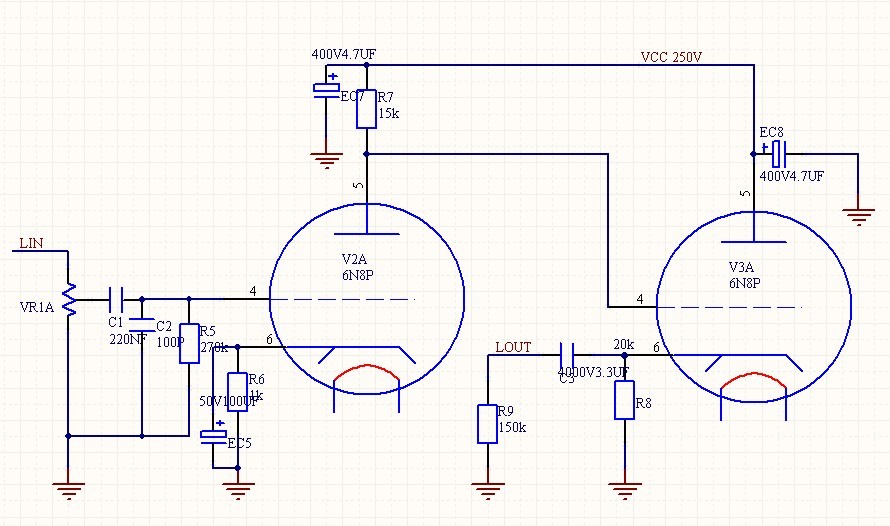

Circuit principle diagram:
Package included:
- 1 x Board
