USB CNC Controller Interface Board 4 Axis Substitute MACH3 CNCUSB MK1 USBCNC 2.1

Availability: In stock, usually dispatched in 1 business day

  • Price:$32.99
  • Price in reward points: 330 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $32.33 $31.67 $30.68 $29.36 Contact US
Quantity:

USB CNC Controller Interface Board 4 Axis Substitute MACH3 CNCUSB MK1 USBCNC 2.1

Features:
- 25 kHz maximum step frequency

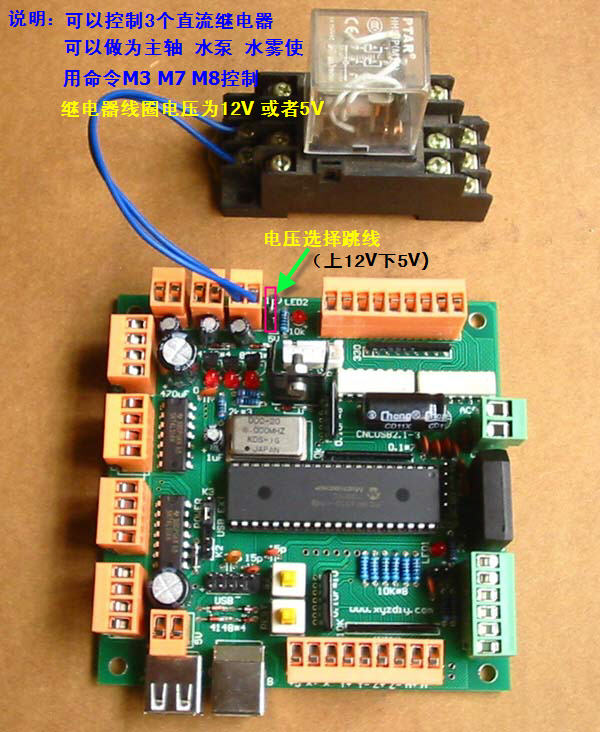

- 3 digital outputs (flood, mist, spindle)
- 12 us minimum pulse width
- manual jog inputs for all axes
- limit inputs for all axes
- control external devices with I2C protocol

Specifications:
- Works on MacOS X (Snow Leopard 10.6.3) with virtual machine emulating Windows XP SP3

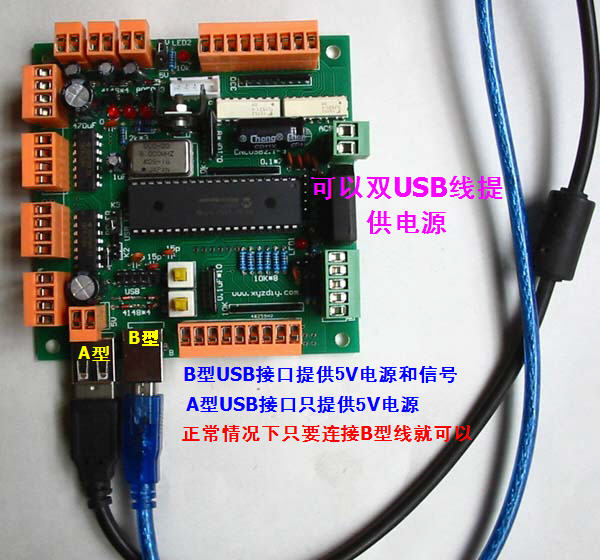

- USB (V2.x) from PC/Laptop running Windows XP, Vista or Windows 7 (32 bit or 64bit)
- Motor driver connector pin-out is compatible with 10 pin open source interface (Linistepper, PICStep)
- Controller works with most step/dir stepper and servo motor drivers available on the market
- Buffered IO for maximum performance
- Advanced interpolation algorithms
- Start, stop, pause and resume execution of program on your machine
- Standard RS274/NGC G-code (EMC2 compatible)
- Advanced G-codes - G40, G41, G42 (Cutter Radius Compensation) supported
- Advanced G-codes - G43, G49 (Tool Length Offsets) supported
- Advanced G-codes - G54, G59.3 (Coordinate System Origins) supported
- Tested with SolidCAM, MasterCAM, ArtCAM, Vectric, CamBam, MeshCAM ... generated G-code
- Profili 4-axes and 3-axes G-code supported
- Import toolpath from DXF files
- Import toolpath from PLT/HPGL files
- Import toolpath from image files
- Import toolpath from NC-Drill (Excellon) files
- Import toolpath from Gerber (RS-274X) files

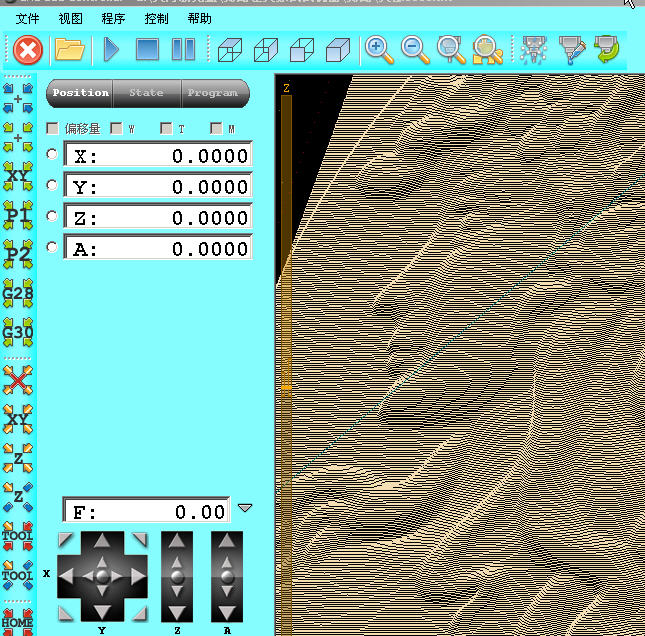

- Toolpath simulation
- Automatic homing procedure
- Advanced toolchange procedures
- Automatic tool length measuring
- Export toolpath to G-code
- Export toolpath to DXF
- SDK (software developers kit) is available
- 25 kHz maximum step frequency
- 3 digital outputs (flood, mist, spindle)
- 12 us minimum pulse width
- manual jog inputs for all axes
- limit inputs for all axes
- control external devices with I2C protocol

Manual Download : USBCN12 User Manual

Package include:
- 1 x 4 axes USB CNC controller
- English user manual
