4 Axis USB CNC Card Controller Interface Board RJ11 4P USBCNC MK1 Replace of MACH3

Availability: Out Of Stock

  • Price:$41.90
  • Price in reward points: 419 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $41.06 $40.22 $38.97 $37.29 Contact US
Quantity:

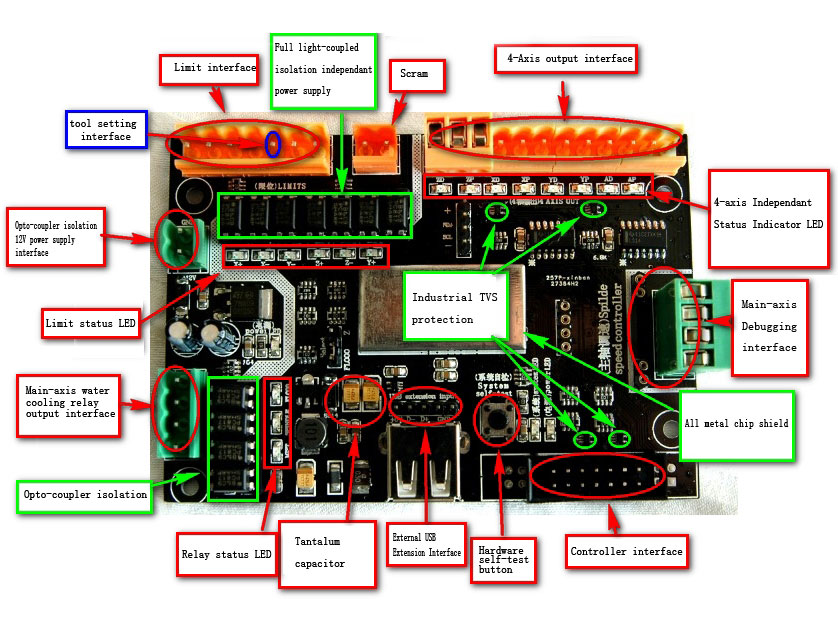

4 Axis USB CNC Card Controller Interface Board RJ11 4P USBCNC MK1 Replace of MACH3



Minimum system requirements:
- 1 GHz or faster processor
- 512MB RAM
- 500 MB available hard disk space
- DirectX 9 graphics device with WDDM 1.0 or higher driver
- USB 2.0 port
- NET Framework 3.5 SP1

Features:
- 25 kHz maximum step frequency
- 3 digital outputs (flood, mist, spindle)
- 12 us minimum pulse width
- manual jog input keys for all axes
- limit keys for all axes
- control external devices with I2C protocol

USB (V2.x) from PC/Laptop running Windows XP, Vista or Windows 7 (32 bit or 64bit)
motor driver connector pin-out is compatible with 10 pin open source interface
controller works with most step/dir motor drivers available on the market
buffered IO for maximum performance
advanced interpolation algorithms
start, stop, pause and resume execution of program on your machine
standard RS274/NGC G-code (EMC2 compatible)
advanced G-codes - G40, G41, G42 (Cutter Radius Compensation) supported
advanced G-codes - G43, G49 (Tool Length Offsets) supported
advanced G-codes - G54, G59.3 (Coordinate System Origins) supported
tested with SolidCAM, MasterCAM, ArtCAM, Vectric, ... generated G-code
Profili 4-axes and 3-axes G-code supported
importtoolpath from DXF files
importtoolpath from PLT/HPGL files
importtoolpath from image files
importtoolpath from NC-Drill (Excellon) files
importtoolpath from Gerber (RS-274X) files
toolpath simulation
automatic homing procedure
automatic tool length measuring
advancedtoolchange procedures
exporttoolpath to G-code
exporttoolpath to DXF



SDK (software developers kit) is available
Package List:
 - 1 * USBCNC card interface board
- 1 * Standard 1.4M 2.0 USB cable
