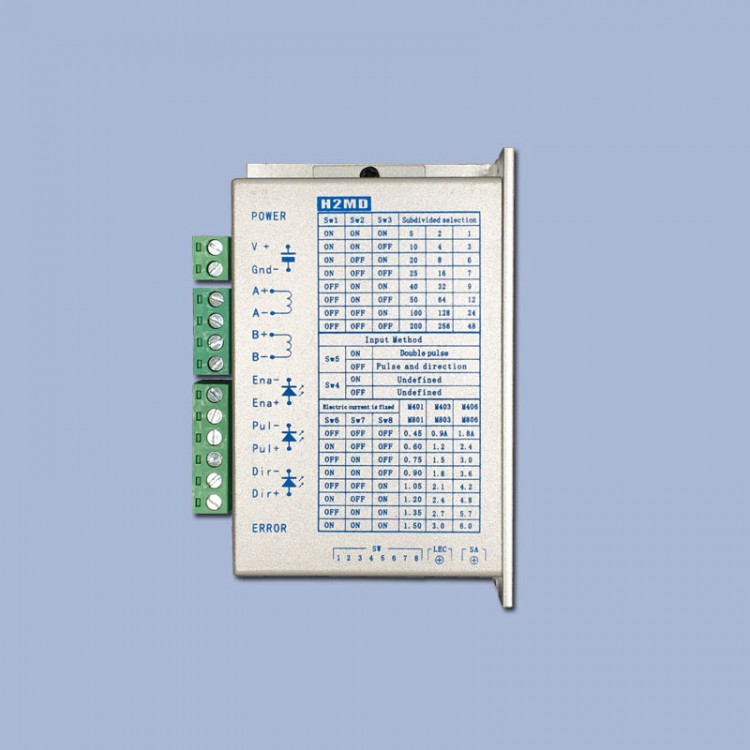

H2MD DC24-120V 6A Engraving Machine CNC Stepper Motor Driver Module Support Phase Dislocation Protection

H2MD DC24-120V 6A Engraving Machine CNC Stepper Motor Driver Module Support Phase Dislocation Protection

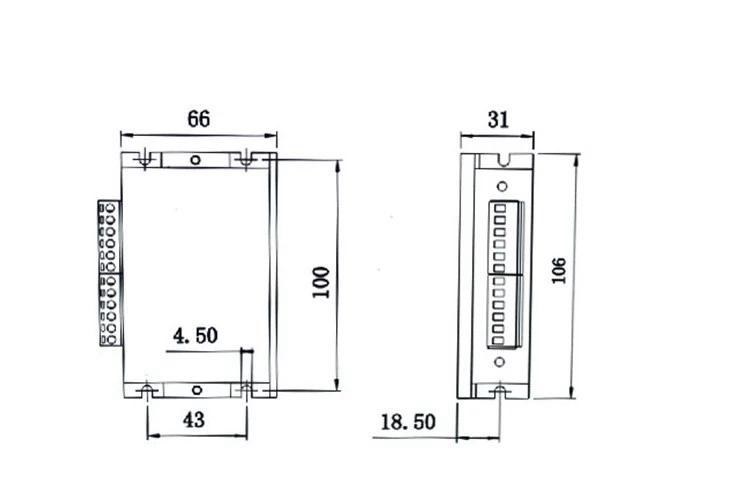

Description:
- The H2MD series driver is a high-performance stepper motor driver developed using standard sine current control technology. It can effectively eliminate current ripple and suppress motor vibration, improve motor performance, and extend service life. The driving voltage is DC20V~DC120V, which can be adapted to various domestic and foreign brands. The current is below 6.0A, and the outer diameter is 57mm~86mm for four-wire, six-wire, and eight-wire two-phase hybrid stepper motors.

Features:
- Low speed anti shake, ultra-low noise.
- Equipped with phase dislocation protection and overcurrent protection.
- Driver overheat protection.
- Optoelectronic isolation signal input.
- Input pulse frequency: 0 ~ 200KHz.
- Automatic low-power operation when stationary.
- Single power input, voltage range of DC20V ~ DC120V.

Precaution:

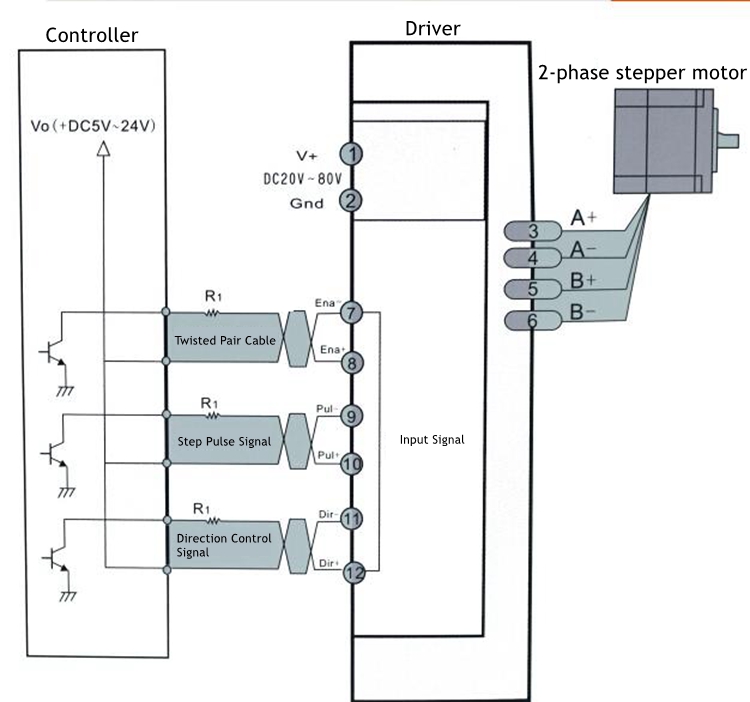

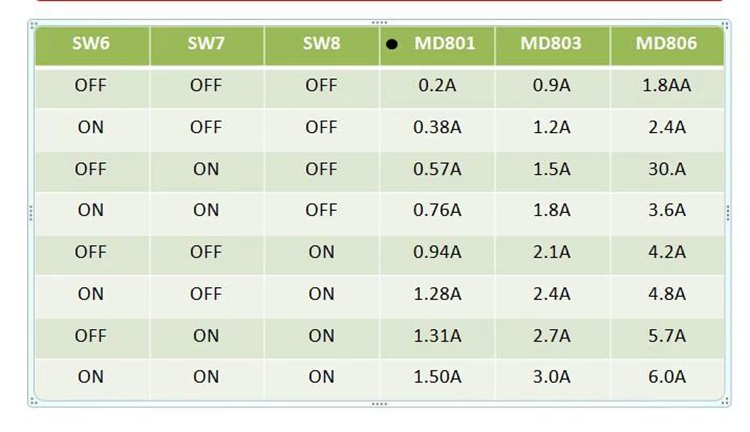

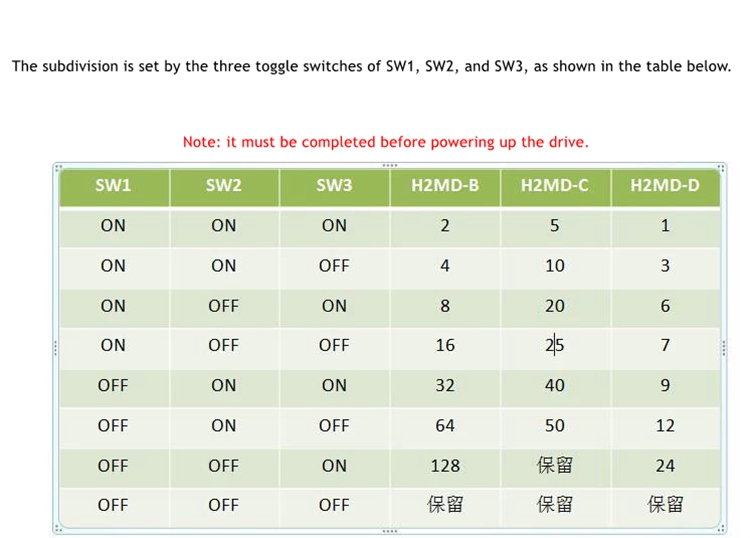

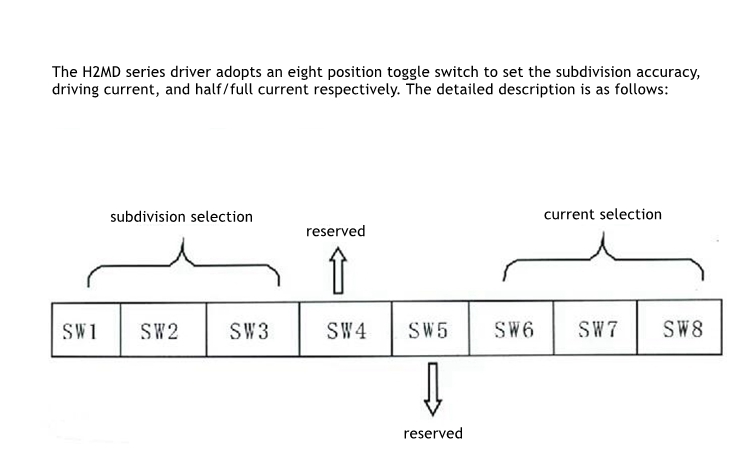

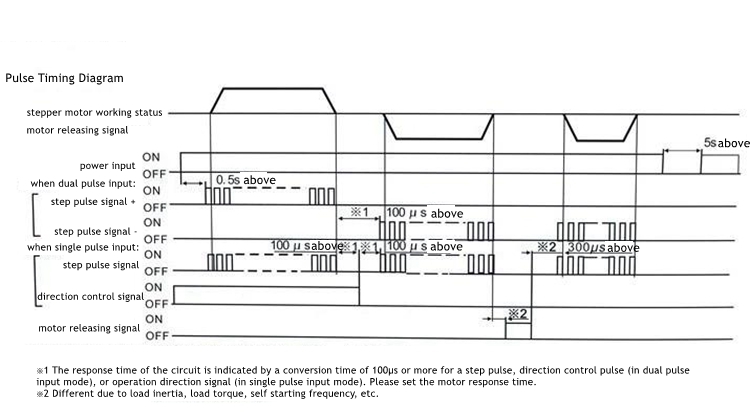

- Please use an input signal voltage of DC5V ~ DC24V. No additional resistors need to be connected along the way. Please use twisted pair wire (AWG22 ~ 20) for the signal line, with a length controlled within 2M. The longer the pulse line, the lower the frequency that can be transmitted. Please use wire with AWG20~18 or higher for power cables, and do not use the same conduit or tie signal cables together with power cables.
- If interference occurs, please shield the motor and power lines with conductive tape or metal wire mesh.
- The polarity error of the DC power input can cause damage to the driver circuit. Please confirm the polarity before powering on.

Package Included:
- 1 x Motor Driver Module
