Introduction:

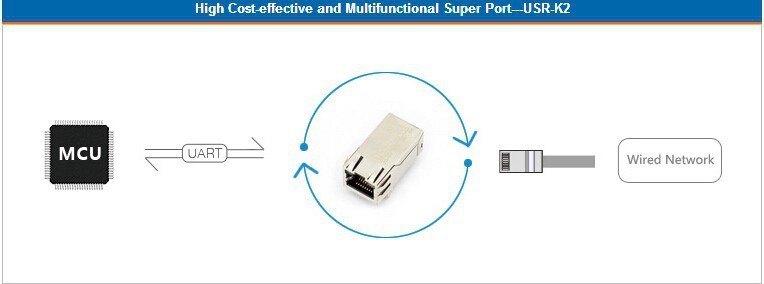

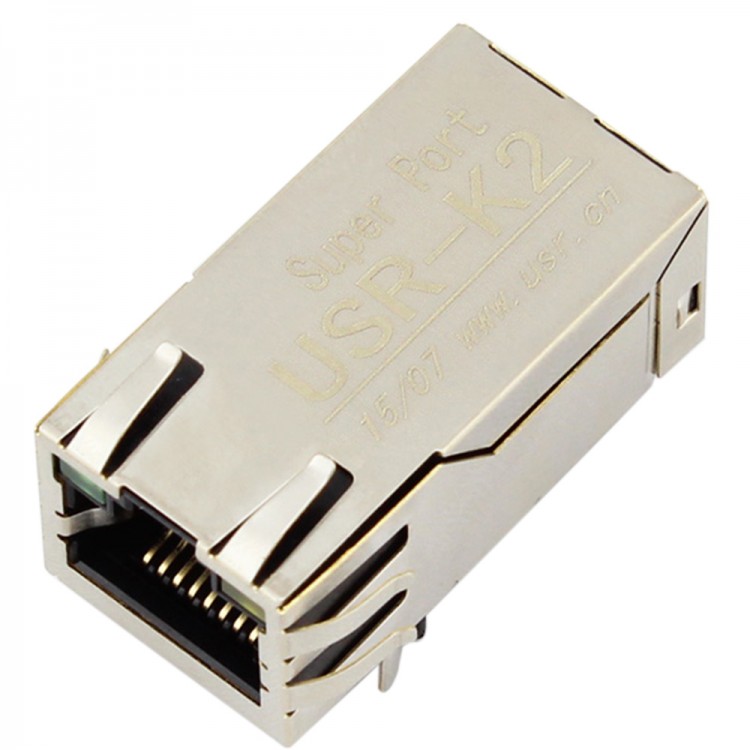

USR-K2 is the low-cost and multifunctional version of Super Port.It is an embedded serial networking module,whose function is to realize bidirectional transparent transmission between TTL and Ethernet.

The amazing part of K2 lies in its Ethernet port integration design.You can apply K2 to your products to realize networking communication.User can directly process data interaction through network and device to realize remote data acquisition, remote control and management.

K2 is based on M0 solution,which has slightly higher price and a bit more functions than K1.
Specification:

System Information
- Kernel: M0 series

Ethernet
- Port Number: 1
- Interface Standard: 8 pin RJ45
- Rate: 10/100 Mbps，MDI/MDIX,auto switch between cross and direct connection
- Protection: 2KV electromagnetism isolation
- Network Protocol: IP，TCP，UDP，DHCP，DNS，HTTP，ARP，ICMP，Web socket，Httpd client
- Buffer: Max. 4k bytes buffer

Serial
- Port Number: 1
- Interface Standard: TTL: pin type 3.3V
- Data Bits: 5，6，7，8
- Stop Bit: 1，2
- Check Bit: None，Even，Odd，Space，Mark
- Baud Rate: TTL:600 bps ~ 1024K bps
- Flow Control:None
- Buffer: send and receive 800 byte bytes respectively
- RS-485 Pull-up and Pull-Down Resistor:  null,reserved 485 send-receive control pin

Software
- Virtual Serial（USR-VCOM): Windows 2000 or higher（32 bit/64 bit）
- Configuration: built-in webpage,computer set-up software,serial command

Basic Parameter
- Size: 33.02 x 19.01 x 19.15 (mm) (including clips)
- Operating Temp.:-40 ~ 85°C(industry)
- Storage Temp.: -40 ~ 85°C，5 ~ 95% RH (no condensation)
- Input Voltage: DC 3.3
- Working Current: 120mA（115~125）@ 3.3V
- Power: <1W

Product information: click here

 Product Characteristics
- 32 bits ARM CPU inside;
- LAN : 10/100Mbps; protect: Built-2KV isolated electromagnetic;
- Serial port baud rate: from 600 to 961.2 KBPS can be set up;
- Network protocol: ETHERNET ARP IP UDP TCP ICMP,DNS,DHCP;
- Software tool: configuration software, TCP/UDP test soft, RS232 debug soft;
- Configuration method: serial com port or via Ethernet, free software available;
- Operating temperature: -25~75°C;
- Storage environment: -40~85°C, 5~95%RH.
- Compact type

Package included:
- 1* USR K2 Industrial Super Port
