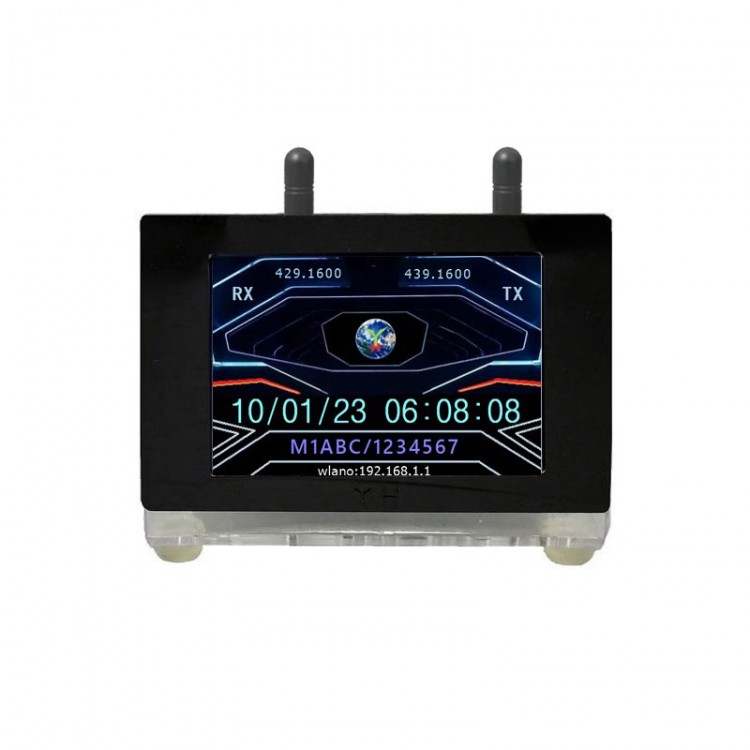

Assembled MMDVM T124B Duplex MMDVM Hotspot with 3.5-inch Color Screen for Digital Walkie Talkie Modem

Assembled MMDVM T124B Duplex MMDVM Hotspot with 3.5-inch Color Screen for Digital Walkie Talkie Modem

Description:
- Through the MMDVM hotspot box, ordinary digital walkie-talkies can realize the interconnection nationwide, thus solving the limitation of ordinary digital walkie-talkie communication distance.

- MMDVM motherboard adopts imported components and temperature compensated crystal oscillator. When running for a long time, its performance remains stable, and the bit error rate is low. The wiring of this board has been optimized, the component layout is more perfect, the heat generation is small, and the heat dissipation speed is fast, so it is suitable for long-term operation!

- For DMR, duplex board have the advantage of TDMA. All debugging parameters are based on the DMR standard to carefully debug each board, the calibrated DMR standard will be more stable in use, and the sound quality restoration will be greatly improved. As for other standards, users can realize the same stability in DMR, D-Star, YSF (C4FM), P25, NXDN and POCSAG modes as long as they are slightly trimmed!

Specifications:
- Frequency: U band (420.000-434.900MHz/438.100-470.000MHz)
- Supported modes: DMR, D-Star, YSF (C4FM), P25, NXDN, and POCSAG
- Power: 20mW
- Shell material: acrylic
- Dimensions: 108 x 83 x 80mm/4.3 x 3.3 x 3.1" (L x W x H)

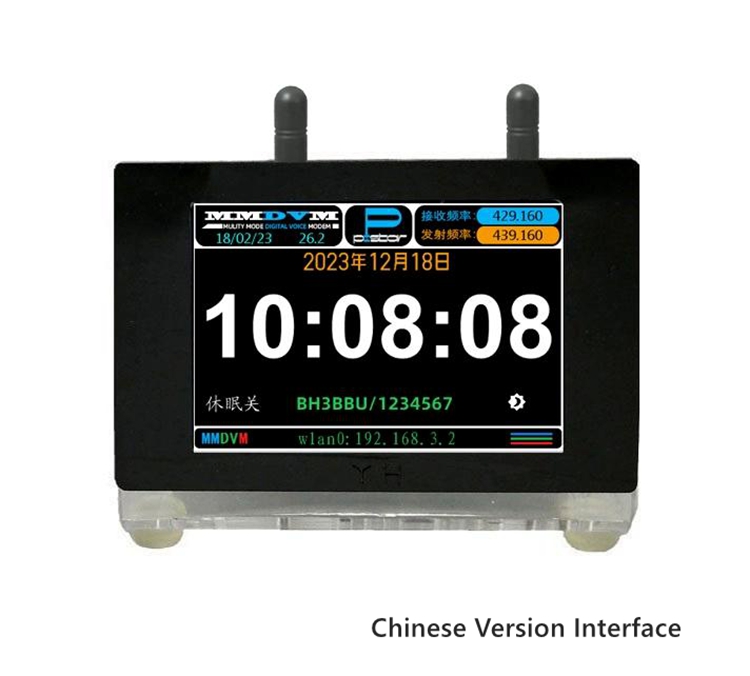

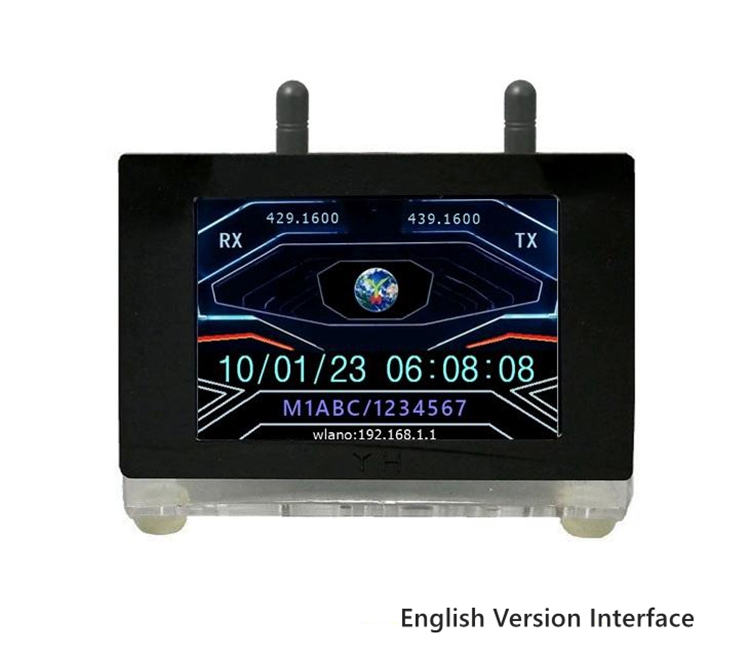

- Screen: 3.5-inch color screen
- External power supply mode: MINI port (for Android) 5V 2A (power supply is not included)

Package Included:
- 1 x for Raspberry Pi 4B
- 1 x MMDVM Duplex Board
- 1 x 16G System Card
- 1 x Antenna
- 1 x 3.5-inch Color Screen

Note:
- The power supply is not included.
