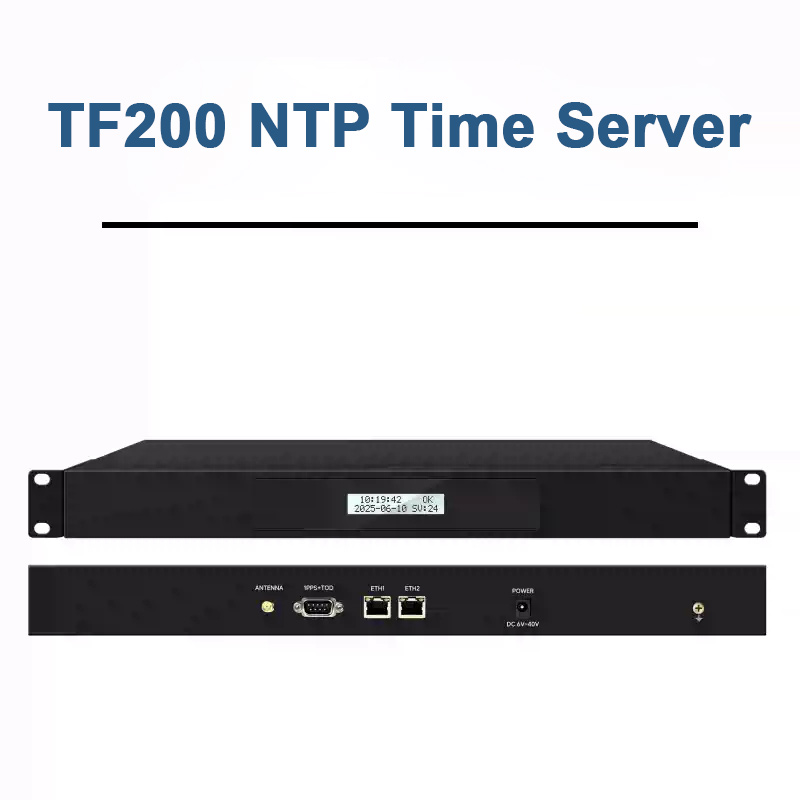

TF200 NTP Time Server NTP Network Time Server Time with 10m Antenna for Beidou GPS GLONASS and QZSS
Features:
NTP Time Server
* Standard 1U 19-inch Chassis
* High Time Synchronization Accuracy
* Supports Beidou Satellite
* No Subsequent Usage Fees
* Web Management
* LCD Display
* 2 Isolated Network Ports
* 7×24 Stable Operation
For Beidou, GPS, GLONASS and QZSS
* Supports China's Beidou, the U.S. GPS, Russia's GLONASS, and Japan's QZSS.
* Capable of receiving usable satellite signals, even with suboptimal antenna installation.

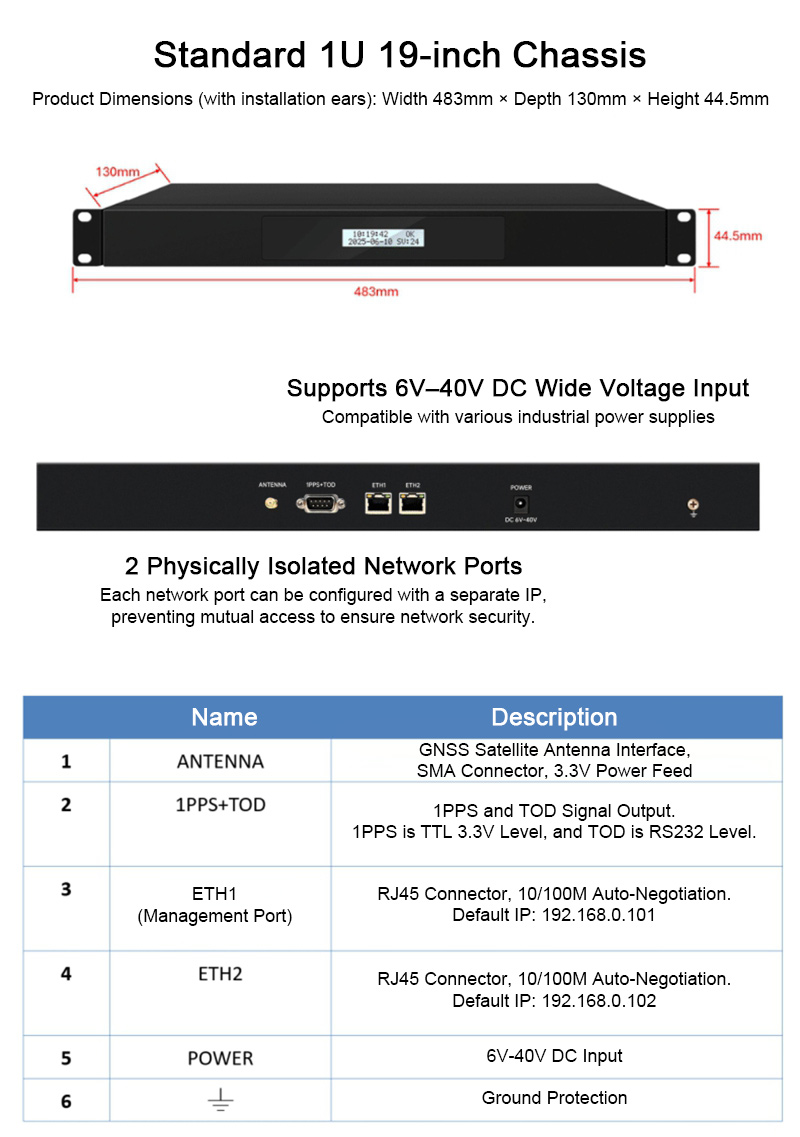

Standard 1U 19-inch Chassis
* Product Dimensions (with installation ears): Width 483mm × Depth 130mm × Height 44.5mm
Supports 6V–40V DC Wide Voltage Input
* Compatible with various industrial power supplies
2 Physically Isolated Network Ports
* Each network port can be configured with a separate IP, preventing mutual access to ensure network security.
Supports Web Management, Simple and Quick
* 1 Port for Management, Default IP Address: 192.168.0.101
* Default Username and Password: admin/admin
Good Compatibility
* Supports All NTP Clients on the Market: for Windows, Linux, Hikvision, Tiandy, Dahua, KEDACOM, Uniview, etc.
* Can automatically retrieve time from the local computer and can still function normally in closed shielded environments without satellite signals
* Supports NTP time synchronization logs

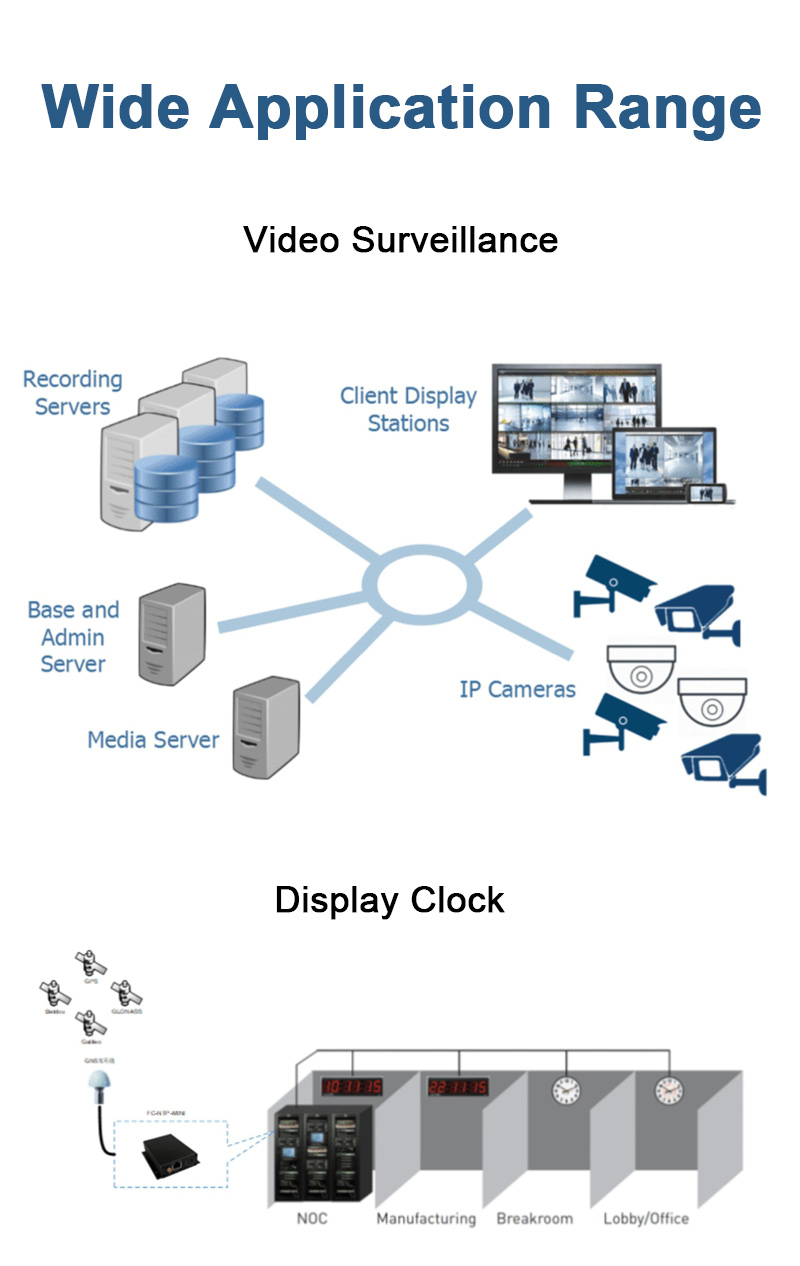

Wide Application Range
* Video surveillance
* Display clock
Specifications:
* Each Network Port Access Capacity: Up to 10,000 times/second
* 2 Physically Isolated Network Ports: No communication between them, ensuring network security
* LCD Display: Easy to view time, satellite, and device status
* WebUI Interface: Convenient and quick management
* Supports NTP Time Synchronization Logs
* LAN Synchronization Time Accuracy: 0.5-2ms
* Internally Integrated High-Precision Time Synchronization GNSS Satellite Receiver
* Equipped with Power-Off Time Keeping Function
* Supports GPS, Beidou, GLONASS, and QZSS
* NTP v2 (RFC 1119)
* NTP v3 (RFC 1305)
* NTP v4 (RFC 5905)
* SNTP v3 (RFC 1769)
* SNTP v4 (RFC 2030)
* Can Obtain NMEA0183 Navigation Message Information Through Network Port
* 1 Port 1PPS Output
* 1 Port TOD Output
* Standard 1U 19-inch Chassis
* Power Consumption: Less Than 5W

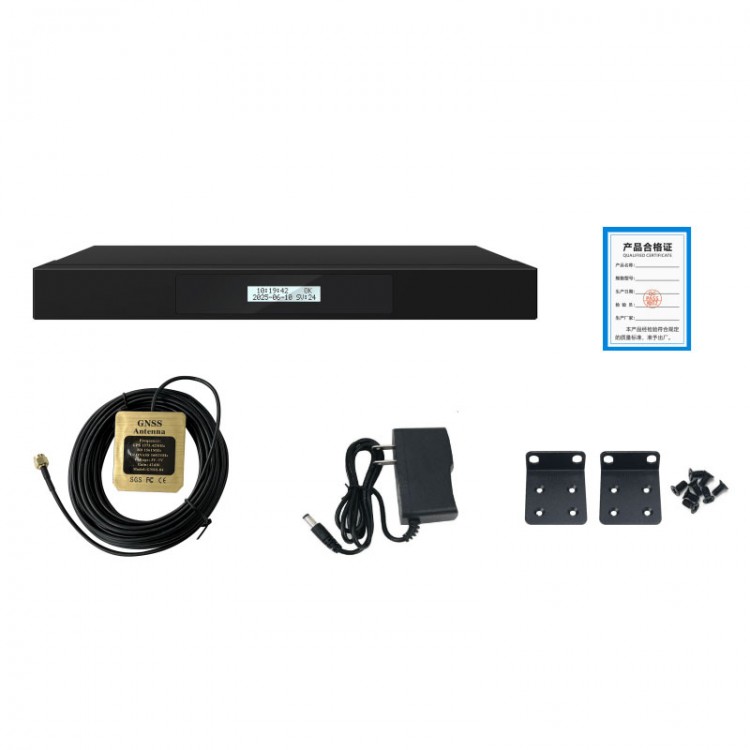

Packing List:
* 1 × Main Unit
* 1 × Certificate of Conformity
* 1 × 10-meter Antenna
* 1 × Power Adapter
* 2 × Installation Ears
* 8 × M3 Screws
Packaging Details:
* Weight: 2.55kg
