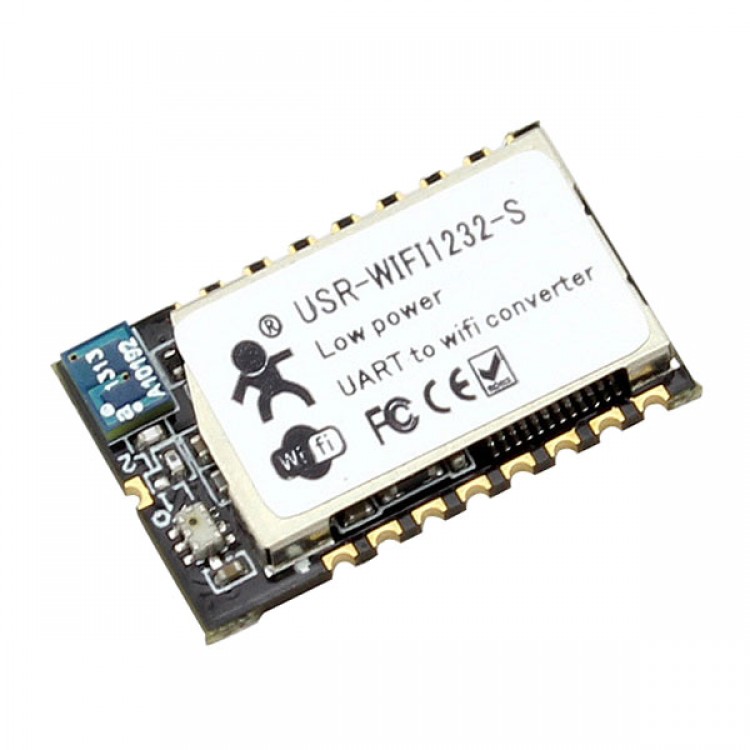

USR-WIFI232-Sa SMD Type Tiny Size UART to WIFI 802.11b/g/n Module
Description:
- Ultra low power: standby power consumption 10ma/3.3v only
- Tiny demensions: 22*13.5*2.3mm
- Support WPS function, have been tested with more than 50 types of routers
- Support AP/STA/AP+STA mode and 5 channnel TCP link
- Support smart link function, provide free Android/Iphone APP
Character:
- Single stream Wi-Fi / 2.4 GHz with support for WEP security mode as well as WPA/WPA2
- Based on Self-developed High Cost Performance MCU
- Ultra-low-power operation with all kinds of power-save modes.
- Includes all the protocol and configuration functions for Wi-Fi connectivity.
- Support Smart Link Function
- Support Dial Switch to Control Power
- Support Max 3 Channel PWM Output
- Compact surface mount module 22mm x 13.5mm x 2.3mm
- Full IPv4 and IPv6 stack.
- Low power RTOS and drivers.
- FCC Certified. RoHS and CE compliant.
- Single supply 3.3V operation
