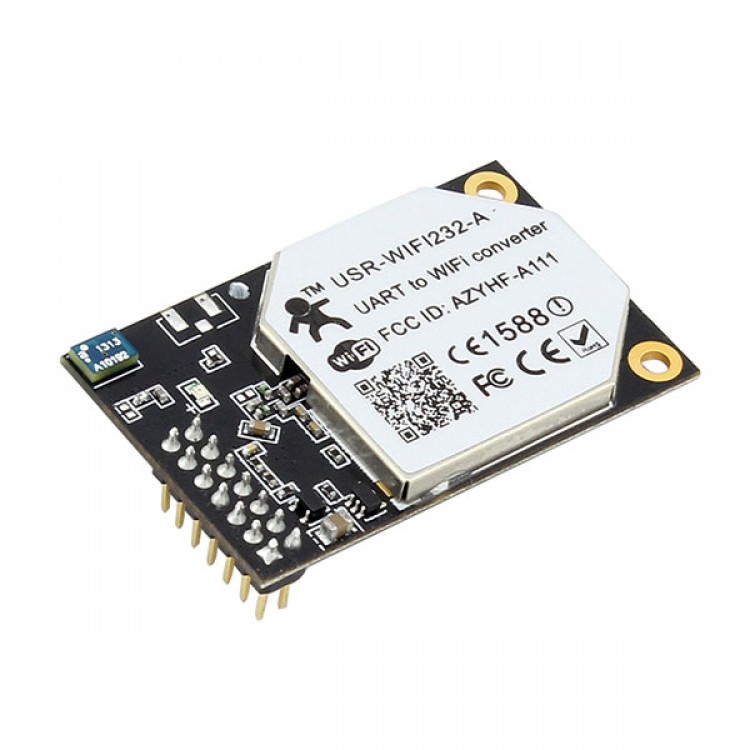

Embedded Wireless Module UART to WIFI Module USR-WIFI232-A W/ Onboard Antenna

Availability: In stock, usually dispatched in 1 business day

Price:$24.28
Price in reward points: 243 Reward Points: 2

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$23.79	$23.31	$22.58	$21.61	Contact US

Product details
Reviews (0)

Embedded Wireless Module UART to WIFI Module USR-WIFI232-A W/ Onboard Antenna

Product:
- USR-WIFI232-A With on-board antenna
- Serial ttl rs232 to 802.11 b/g/n converter Embedded WiFi Module is a tool for MCU link to WIFI network,
- work for Transparent transmission, TCP server ,TCP client and UDP mode can be choose.
- Data from serial to WIFI or WIFI to serial.

1.High performance

2.Unique AP+Station Mode.

3. PCB Library File

4.Start time need 6 second

Support PHY to PHY

Features:

Support IEEE802.11 b/g/n Wireless Standards
Support TCP/IP/UDP Network Protocols
Support UART/GPIO/Ethernet Data Interface
Support Work As STA/AP Mode
Support Router/Bridge Mode Networking
Support Board Antenna and External Antenna Option
Support Transparent/Agreement Transmission Mode
Support AT+ Instruction Set for Configuration
Support Friendly Web Congiration Page
Single +3.3V Power Supply
Smallest Size: 25 x 40mm
FCC/CE Certificated

Embedded WIFI Module Charater + WIFI RS232 Module

Class	Item	Parameters
Wireless Parameters	Certification	FCC/CE
	Wireless standard	802.11 b/g/n
	Frequency range	2.412GHz-2.484GHz
	Transmit Power	802.11b: +20 dBm (Max.)
		802.11g: +18 dBm (Max.)
		802.11n: +15 dBm (Max.)
		Configurable
	Receiver Sensitivity	802.11b: -89 dBm
		802.11g: -81dBm
		802.11n: -71dBm
	Antenna Option	External:I-PEX Connector
	Antenna Option	Internal:On-board chip antenna
Hardware Parameters	Data Interface	UART: 1200bps - 230400bps
		GPIOs
		Ethernet: 100Mpbs
	Operating Voltage	3.3V (+/-5%)
	Operating Current	170mA~300mA
	Operating Temperature	-25°C- 85°C
	Storage Temperature	-40°C- 125°C
	Dimensions and Size	25×40×8mm
Software Parameters	Network Type	Station /AP mode/STA+AP
	Security Mechanisms	WEP/WAP-PSK/WAP2-PSK/WAPI
	Encryption	WEP64/WEP128/TKIP/AES
	Work Mode	Transparent Transmission
	Serial command	AT+instruction set
	Network Protocol	TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP
	Max. TCP Connection	32
	User Configuration	Web Server+AT command config.
