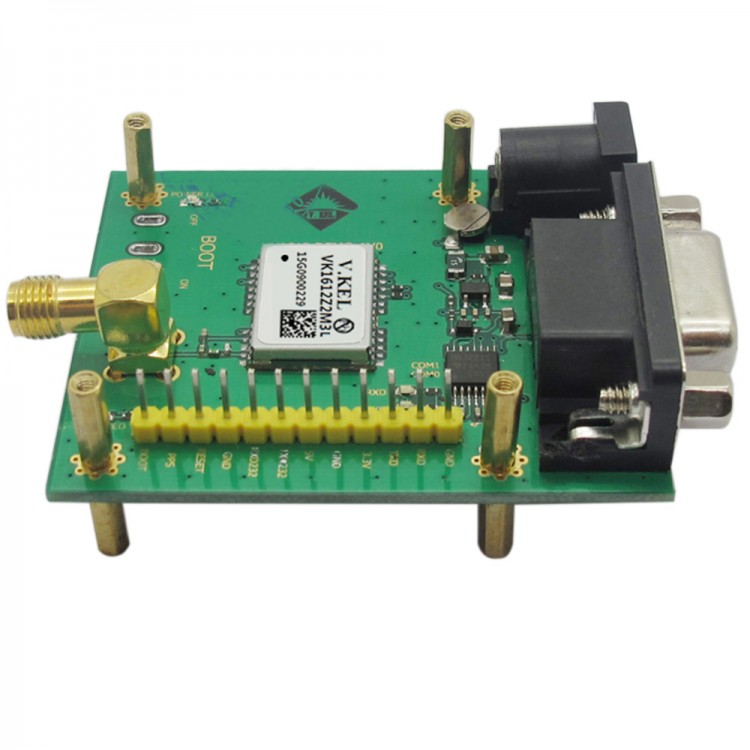

V.KEL VK1612Z2M3L GPS Beidou Module Test Board Development Module with LNA
Features:
- Adopt KDS 0.5 PPM High Precision TCXO
- Lead-free technology, conforms to the RoHS standard.
- Built-in RTC crystal
- Built-in LNA,Low-noise amplifier
- Profound output rate: 9600bps(default) [optional:1200,2400,4800，19200，38400，57600，115200，230400，460800,921600]
- Support AssistNow Online and AssistNow Offline
- GPS,GLONASS,GALILEO,SBAS(WAAS,EGNOS,MSAS,GAGAN) Hybrid Engine
Specification:
- Chip:AT6558
- Receive frequency:BDS/GPAS/GLONASS/GALILEO/QZSS/SBAS
- Protocol: NMEA 0183
- Horizontal position accuracy:HorizontalPosition:Autonomous<2.5maverage, SBAS < 2.0m average
- Maximum altitude:18,000 m
- Maxium speed: 515m/s
- Acceleration:<4g
- Tracking sensitivity:-163dBm
- Catch sensitivity:-148dBm
- Warm root time:32s(in average)
- Hot root time:1s(in average)
- Rate:4800,9600,19200,38400,57600,112500
- Operation temperature:-40 ~ +80 degree
- Dimension:16mm * 12.2 mm * 2.4mm
- Working humidify: 5% to 95% non-condensing
Package included:
- 1* V.KEL VK1612Z2M3L GPS test board
