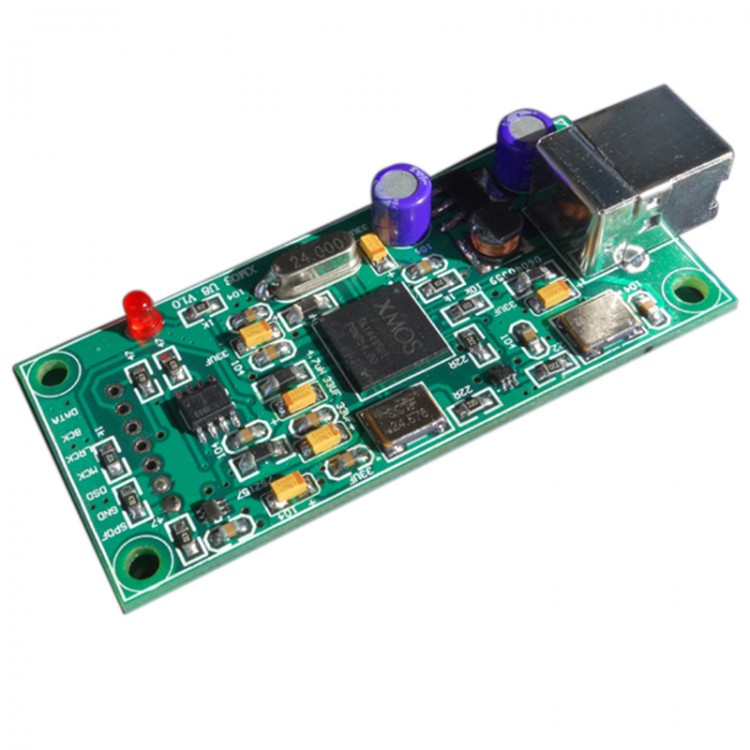

XMOS U8 Sub Card Digital Audio Card Support IIS Output Coaxial DSD for DIY
Description:
The size is compatible with Amanero usb IIS digita interface
Lastes XMOS 2.26 drive: Click here
XMOS 2.19 drive (WIN10 needs this one) : Click here
FOOBAR2000 download: Click here
Specification:
- Brand: Melodious-Audio
- Name: XMOS Digital audio card
- USB input for DAC
- Size: 69 mm * 32mm
- Process: four plate design
- Input: USB data line
- Output: coaxial SPDIF, IIS
- Bit depth: 24bit 32bit 16bit
- For: XP /WN7/WIN8/MAC/ Windows mobile devices (mobile phones, tablet PC)
- Sampling rate support:
PCM : 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz
DSD: DSD64 , DSD128, DSD256(2.822, 3.072, 5.644, 6.144, 11.2896 and 12.288MHz)
The above 352.8kHz and 384khz and DSD needs to support DAC, ordinary DAC typically supports only PCM44. Part of the DAC does not support 1-192K, and 176.4K 88.2K . Mobile devices at present after testing ,the Samsung NOTE3/4 and matchless S4, inserted by default all the audio output of XMOS. Theorily can support most Android devices that need special OTG data line, because Android device models and system too messy, not one by one test. Aldo support jailbreak version iPad ISO7.0, does not support iso8.0 .
DSD must be IIS transmission, DAC chip should support it. Ortherwise cannot playing DSD.
SPDIF output, should install RF FM plug, and hifi coaxial cable.
Driver download: Click here
When receiving DSD signal, DSD pin=1
SPDF is coaxial signal output
Package included:
- 1 x XMOS U8 Sub Card
