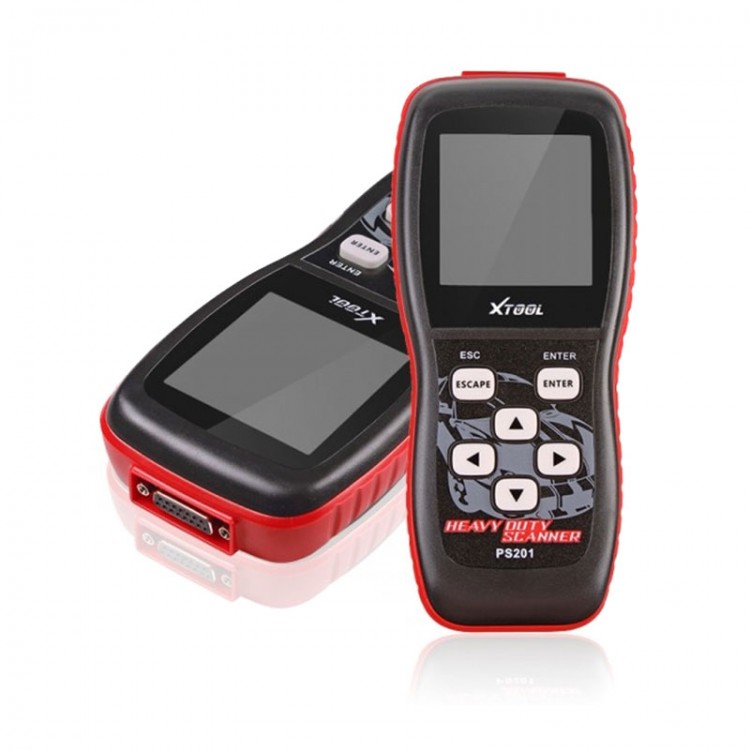

XTOOL PS201 Heavy Duty CAN OBDII Code Reader Diesel OBD2 Scanner Diagnostic Tool

XTOOL PS201 Heavy Duty CAN OBDII Code Reader Diesel OBD2 Scanner Diagnostic Tool

Top 7 Reasons to Get XTOOL PS201:
- New operation interface
- Easy-to-read large color screen
- Large easy-to-operate buttons
- High Quality Material ABS, Comfortable & Durable
- ARM Chip, High Speed
- Advanced Diagnostic Software System runs fast and stably
- Software Updating Online

XTOOL PS201 Feature:
- Class 4 - Class 8 truck coverage featuring "Automatic Protocol Search".
- HD J1587 / J1708 and J1939 CAN, Engine, Transmission/ABS coverage and more!

Live vehicle data such as:
- Engine speed
- Engine ECU temperature
- Percent acceleration pedal position
- Engine intercooler temperature
- Engine coolant temperature
- Battery volts
- Alternator volts
- Ambient air temperature
- Air inlet temperature

General Features (Including Global OBD II coverage):
- Read and clear diagnostic trouble codes
- Global OBD II - All 9 Modes.
- Fast Global OBD II Quick Test
- Gasoline and diesel engine coverage.
- Support multiple Global OBD II trouble code requests, generic codes (mode 3), pending codes (mode 7), enhanced codes, and GM DTC status.
- On-screen definitions of diagnostic trouble codes.
- Set measurement units in SAE English/Metric.
- Internet upgradable.

Application
- Passenger cars, and commercial vehicles
- Tow trucks, recreational vehicles, cement trucks, dump trucks, garbage trucks, buses,step vans, municipal vehicles, refrigerated trucks, and conventional trucks
- Heavy-Duty Standard compliant construction, marine, agriculture, and other industrial diesel power plant configurations
- ISO 14230, ISO 15765, SAE J1850, SAE J1939, SAE J1708/J1587

1. LCD screen: 160*160
2. "ENTER" button: confirm a selection of a menu list
3. "ESC" button: return to the previous screen
4. "Up"/"Down" button: move the cursor up or down
5. "Left"/"Right" button: turn pages

Package Including:
- 1pc x PS201 Main unit
- 1pc x 6+9PIN Extension cable
- 1pc x OBDII connectors
- 1pc x Card reader
- 1pc x User's manual
- 1pc x Nylon bag
- 1pc x Standard carton BOX
