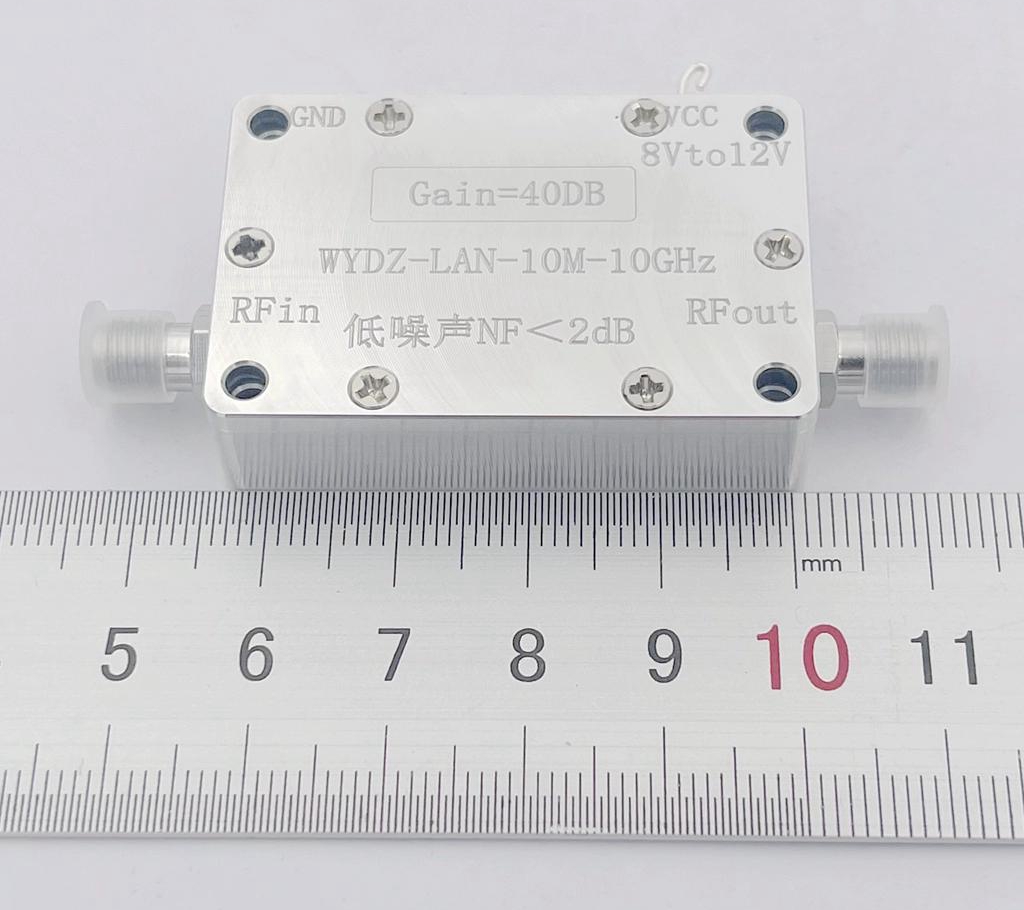

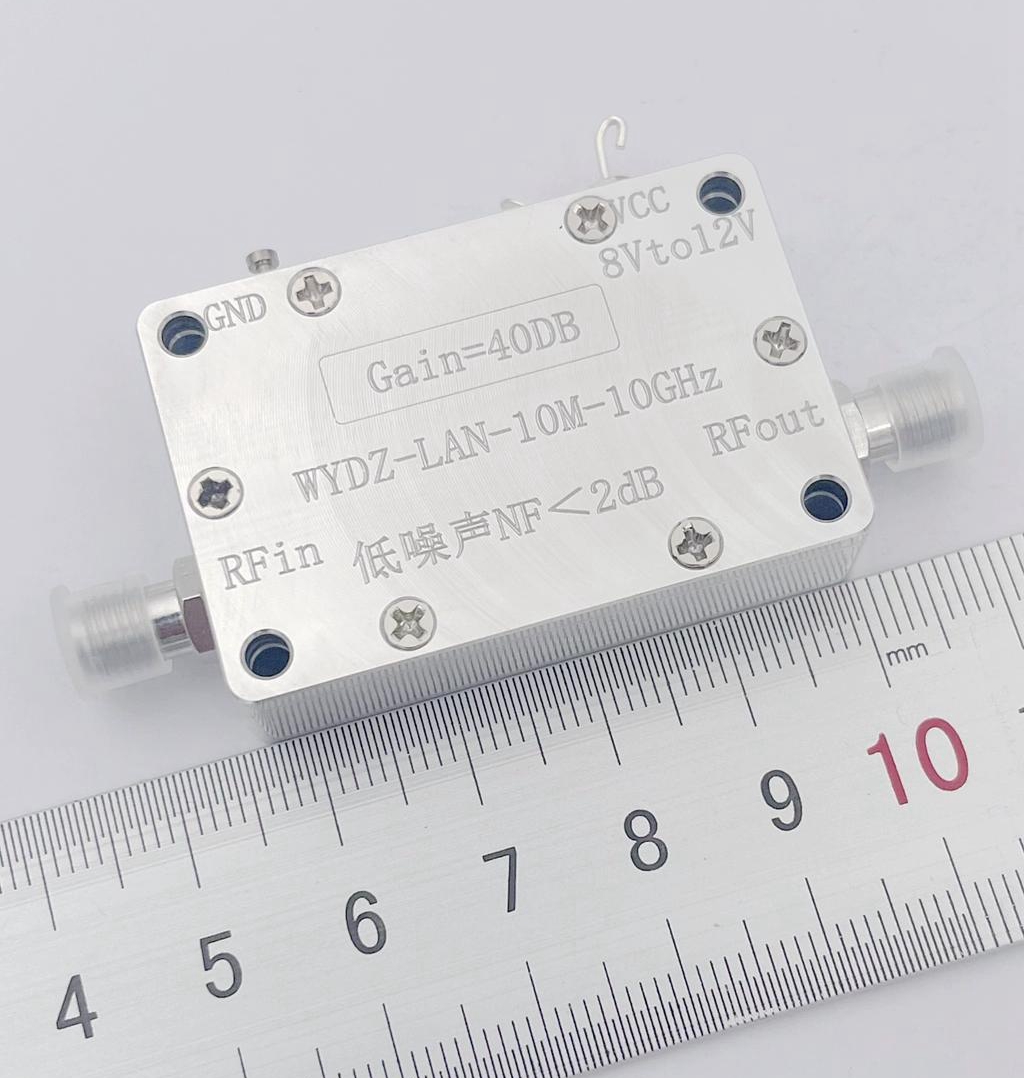

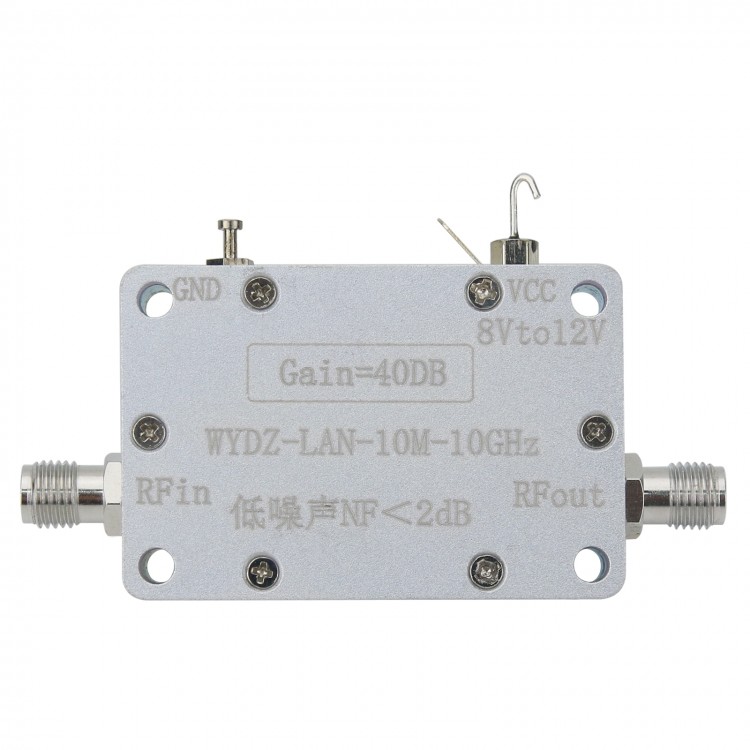

0.01-10G 40dB 50ohms Gain LNA RF Wideband Low Noise Amplifier with SMA Female Connector RF Accessory
Description:
- It is an ultra wideband low phase noise amplifier with the full frequency band of 10M-10000M, noise coefficient ≤ 2.5, GdB gain > 40dB, good flatness in the full frequency band, which can be used for power supply from +8 to +12V, and can be used as an input low noise amplifier for broadband receivers or as a driving stage for mixer local oscillator signals. The module provides size diagrams, which can be directly applied as a system module or as a verification platform.
Specification:
- Working frequency: 10M - 10000MHz
- Working voltage: 9V/160mA (power supply range: +8V to 12V)

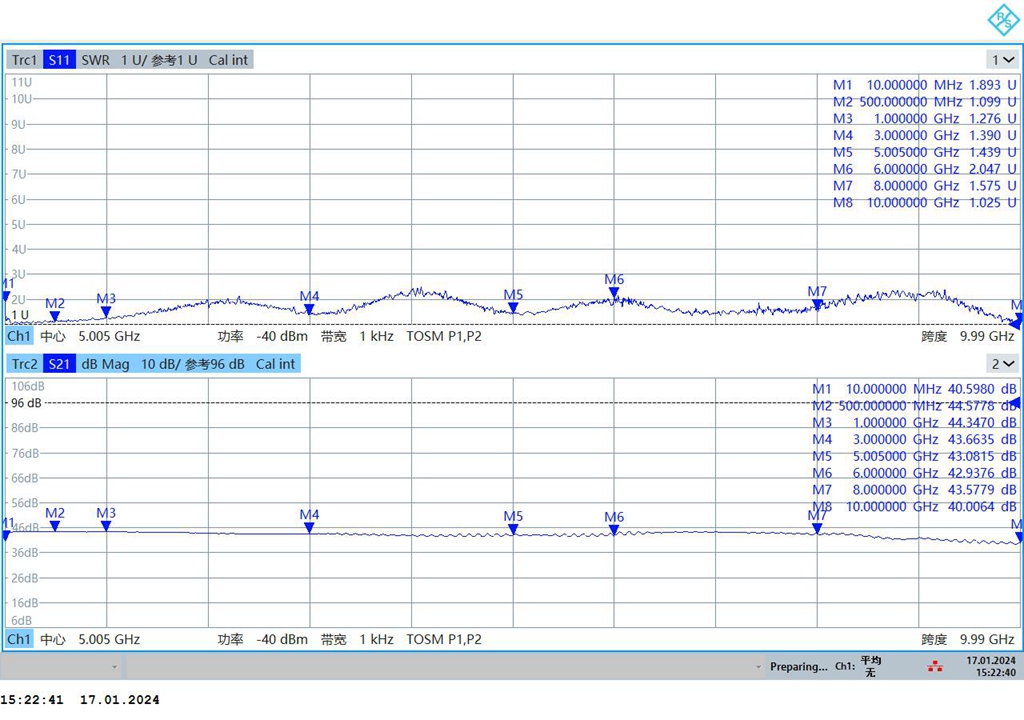

- Gain: 40dB at 10M - 10000M
- NF: 2.5dB at 10M - 10000M
- P1Db: > 20dBm

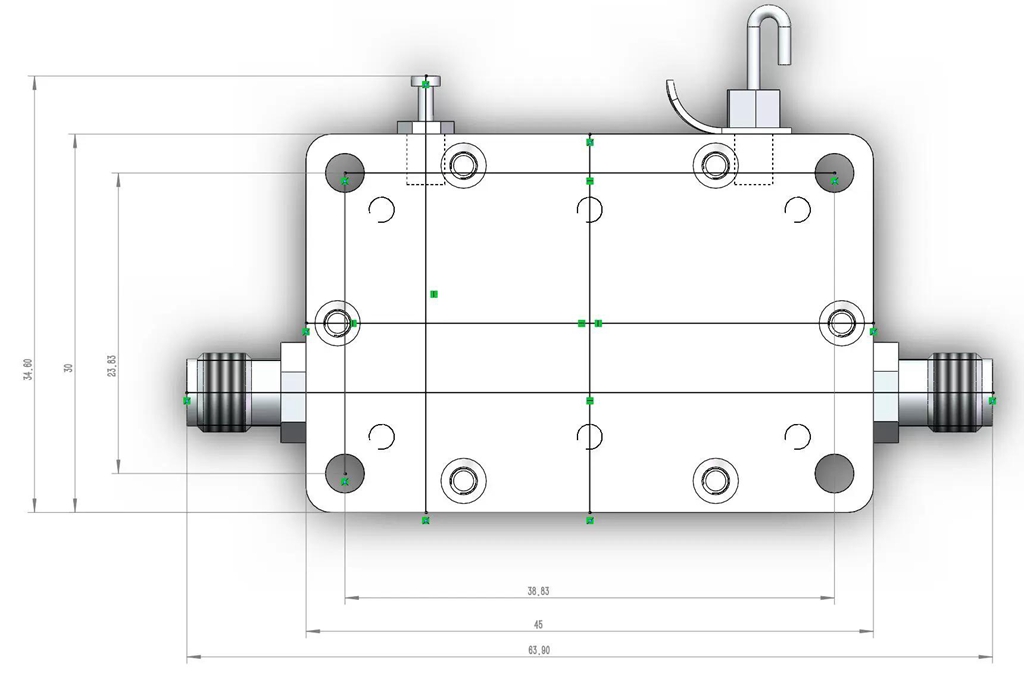

- Product size: 45 x 30 x 12mm (excluding the connector length)
- Input and output impedance: 50ohms
- Connector: SMA female connector
Package Included:
- 1 x Low Noise Amplifier
