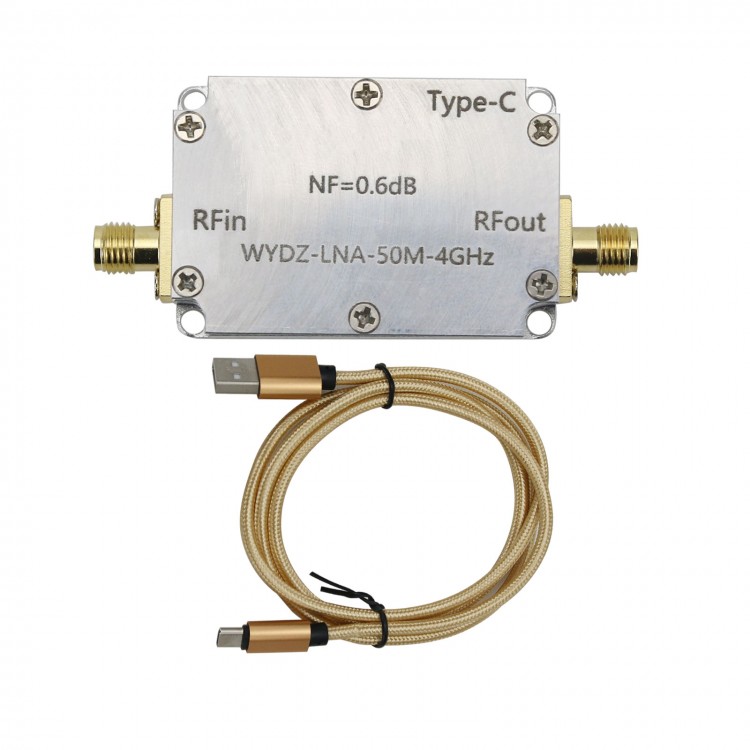

0.05-4GHz RF Amplifier Low Noise Amplifier LNA Amplifier Noise Figure 0.6DB For GPS Beidou Receivers
Application Scenario:
Full aluminum alloy shield, measured S parameter and noise figure NF with noise analyzer
1. For Beidou/GPS receiver
2. Receiver system (FM radio receiving, radar receiving, etc.)
3. Electromagnetic compatibility receiving system
4. Software radio receiver
Core Chip Manual:
Index Parameters:
1. Power supply: TYPE-C cable
2. Module frequency range: 50M-4GHz (0.05-4GHz)
3. Noise figure: NF=0.6dB (refer to the measured curve for different frequencies)
4. Gain: 18DB (refer to the measured curve for different frequencies)
5. Volume: 4.5*3*1.4cm (excluding sizes of protruding SMA); Product weight: 66g (including host + TYPE-C cable)
6. Current: <100mA
7. P1dB=22.7dBm at 1.96GHz
8. Output interface: SMA female, input and output impedance: 50 ohms
Package Included:
- 1 x RF Amplifier w/ Aluminum Alloy Shell
- 1 x Type-C Cable
