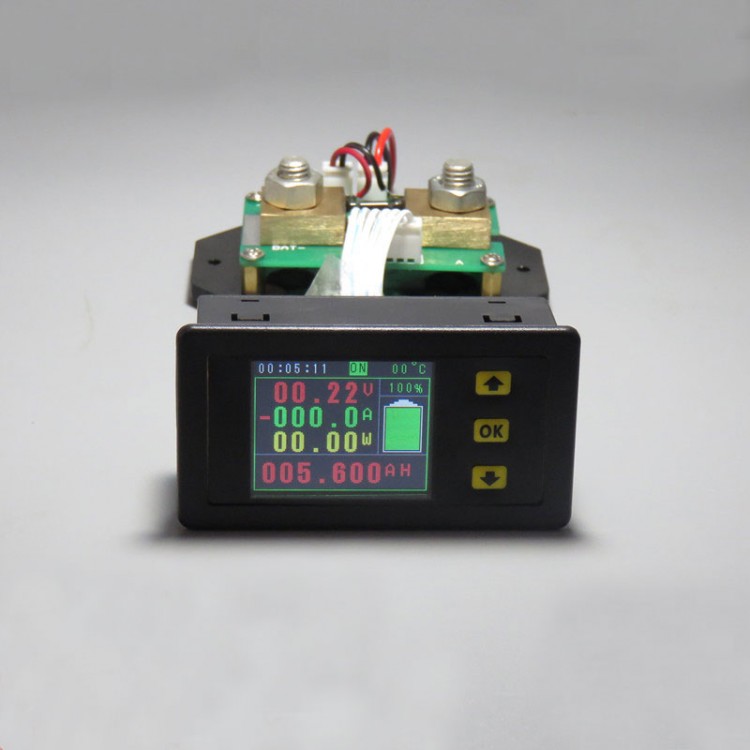

0-120V 0-100A DC Digital Volmeter Ammeter Multimeter Voltage Ampere Power Watt Coulomb Capacity Time Temp

Availability: In stock, usually dispatched in 1 business day

  • Price:$20.03
  • Price in reward points: 200 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $19.63 $19.23 $18.63 $17.83 Contact US
Quantity:

0-120V 0-100A DC Digital Volmeter Ammeter Multimeter Voltage Ampere Power Watt Coulomb Capacity Time Temp

Features:

- Bidirectional Detection: this bidirectional meter can detect and display current to charging and discharging
- Power Off Memory Function: this battery tester can automatically save the parameters of AH & WH when the display power off; if the monitor module also needs to power off, press OK button can save the parameters
- Clear Function: clear function of time and AH value without affecting the measurement for the next time
- Multimeter: this multifunctional meter can detect DC voltage, current, capacity of charging, time, power and other physical information at the same time
- With function button makes it flexible to open or shut down the output
- Protection Function: over-voltage, over-current, over-temperature and other protection functions
- Online calibration to facilitate customers to correct errors in time
- Turn off the LCD display when necessary to reduce the power consumption of the product
- 18inch LCD color display makes it easy to read
- Application: it is quite suitable for monitoring the output voltage and current, as well as applications such as battery charge and discharge

Technical Parameters:
- Model: VA7510S
- Testing Range of Self Power Supply: 6V-75V
- Testing Range of External Power Supply: 0-120V
- Testing Range of Input Current: 0-100A
- External Power Supply Voltage: 6-60V
- Display: 1.8'' Color LCD Display

Testing Range:

- Voltage: 0.01V-120V
- Current: 0.1A-100A
- Capacity: 0.001AH-65000.00AH
- Power Consumption: 0.00KWH-99999.9WH
- Time: 0-100 hours
- Power: 99KW
- Temperature: 1-100℃

Accuracy:
- Voltage: ±1%±2 digits
- Current: ±2%±5 digits
- Temperature:±1℃

- Rate of Testing Speed: 5 times/second

Protection Type & Setting Range:

- OVP (Over-voltage Protection): 0.01-500V
- LVP (Less-voltage Protection): 0.01-500V
- OCP (Over-current Protection of Charging): 0-1000A
- NCP (Over-current Protection of Discharging): 0-1000A
- OTP (Over-temperature Protection): 0-100℃

Size:
- Display Panel: 78 x 42 x 26 mm
- Testing Panel: 87 x 49 x 14 mm

Package Included:
- 1 x Multifunctional Bidirectional Meter
- 1 x Testing Panel
