| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $18.57 | $18.19 | $17.62 | $16.87 | Contact US |
OC3-ADJ 75ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 75ohms 3.3Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 50ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75

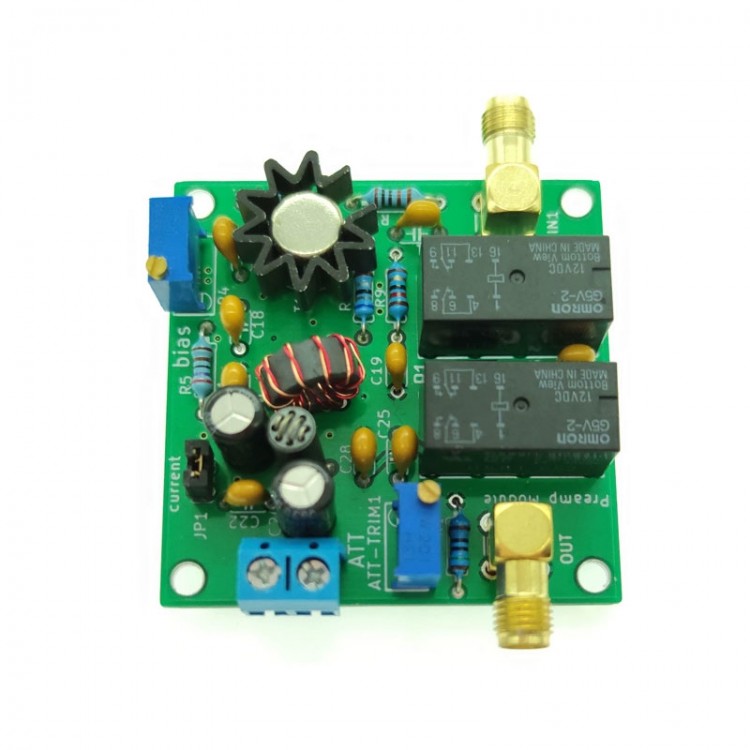

0.1MHz - 60MHz Medium and Shortwave Amplifier Low Noise and High Gain Preamplifier for RX Antenna
Specification:
- NPN transistor
- Supply voltage: 11 - 14 V, 180mA (actual use)
- Broadband: 0.1 MHz to 60 MHz (11 dB at 150 MHz)
- Gain: Up to 18 dB
- Low noise figure (NF) 1, 2 dB (20mA 50MHz)
- Low Noise Figure (NF) < 2 dB (60mA 50MHz)
- Low noise figure (NF) 2, 3 dB (20mA 150MHz)
- IP3 34dBm
- High output power up to 26dBm
- Variable ATT gain: 0 - 18dB
- Operating frequency: 0.1 MHz - 60 MHz;
- Power supply: DC11-14V, 200mA
- Weight: 36g
- Connector: 2 x SMA female
Application:
- High IP, Low Noise RX Preamplifier - RX Antenna
- Buffer amplifier
- Driver amplifier
Package Included:
- 1 x Preamplifier Board
