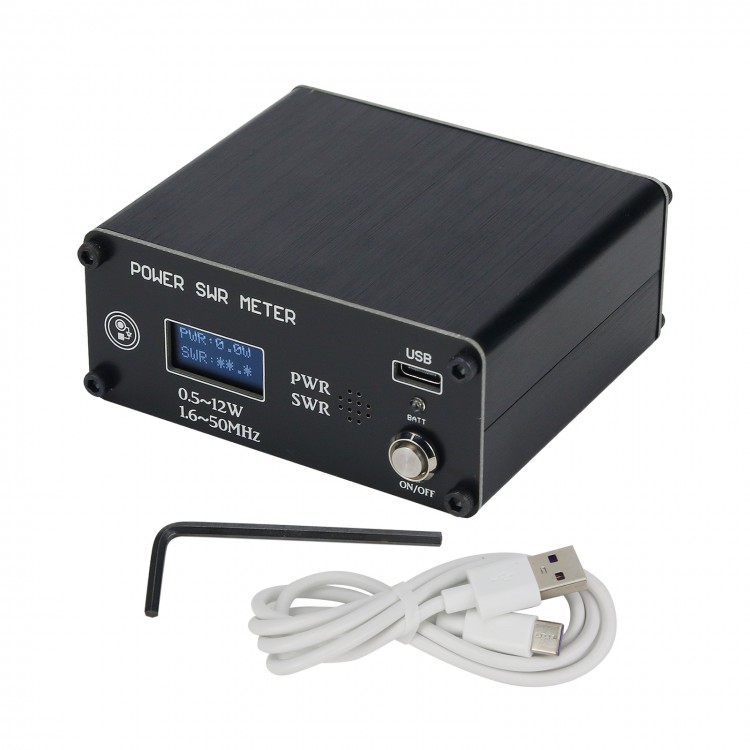

0.5-12W 1.6-50MHz SWR Power Meter Shortwave PWR SWR Meter OLED12864

Availability: In stock, usually dispatched in 1 business day

  • Price:$44.50
  • Price in reward points: 445 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $43.61 $42.72 $41.39 $39.61 Contact US
Quantity:

0.5-12W 1.6-50MHz SWR Power Meter Shortwave PWR SWR Meter OLED12864

Application:

- Open source project: https://g8gyw.github.io/
- Open source project based on G8GYW
- Power measurement and standing wave measurement

Features:
- Frequency range: 1.6-50MHz
- Power range: 0.5-12W
- Power Measurement Accuracy: Better than ± 5% (at 22°C)
- Standing wave range: 1.0-19.9
- Insertion loss: < 0.15dB
- Instrument standing wave: < 1.02 at 50 Ω
- RF Interface: BNC by default (M-type/N-type can be customized)
- Charging interface: type-C
- Dimensions: 88 x 38 x 70mm/3.5 x 1.5 x 2.8" (without protrusions)
- Built-in battery: 800mAh

Introduction:
- After booting, it will show the display version information as well as the battery voltage information
- After 2s, it will display power and standing wave measurement interface
- Red light will be on when it is charging; when it is fully charged, the red light will be off

Package Included:
- 1 x Power SWR Meter
- 1 x Type-C Data Cable
