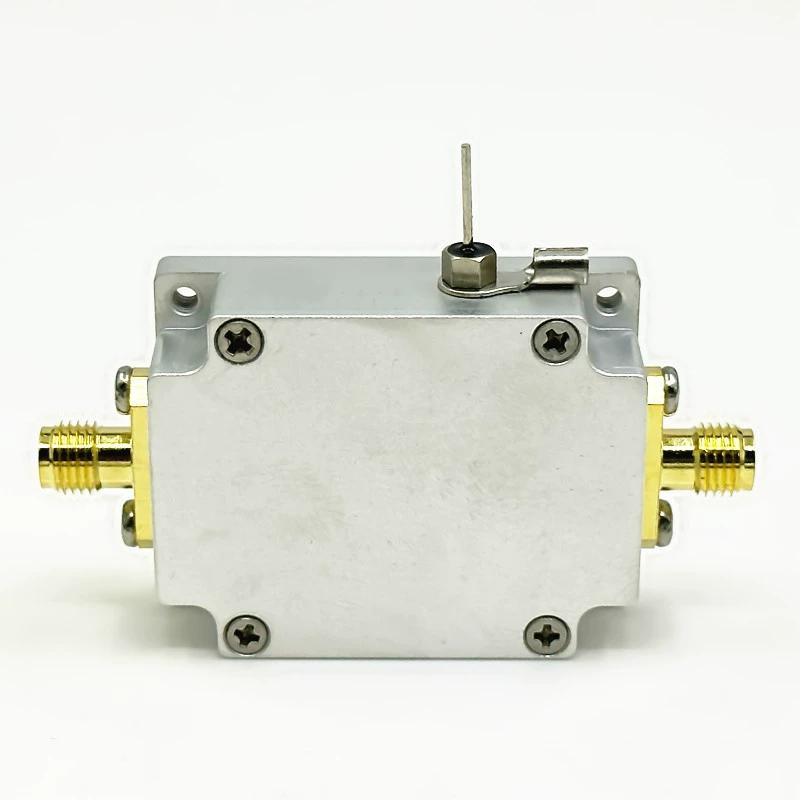

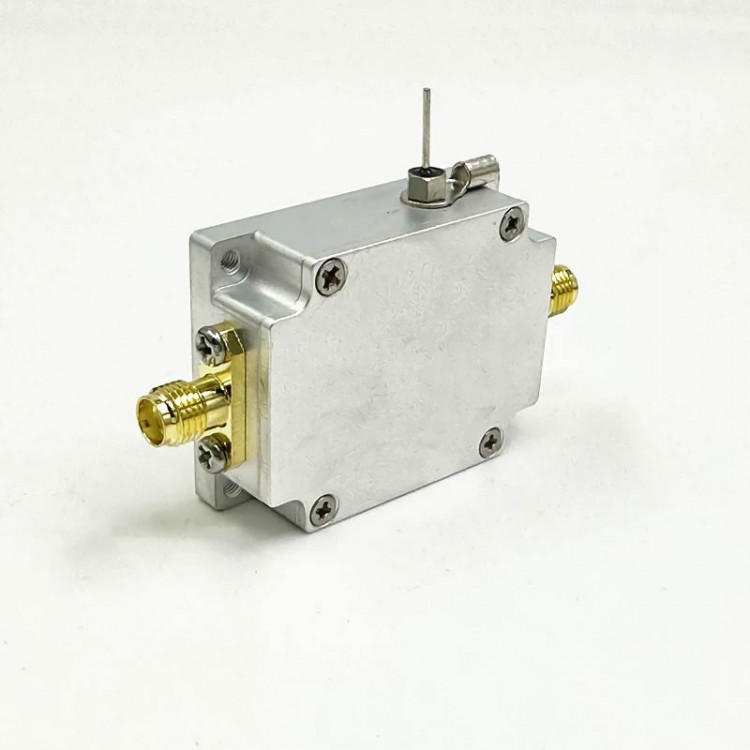

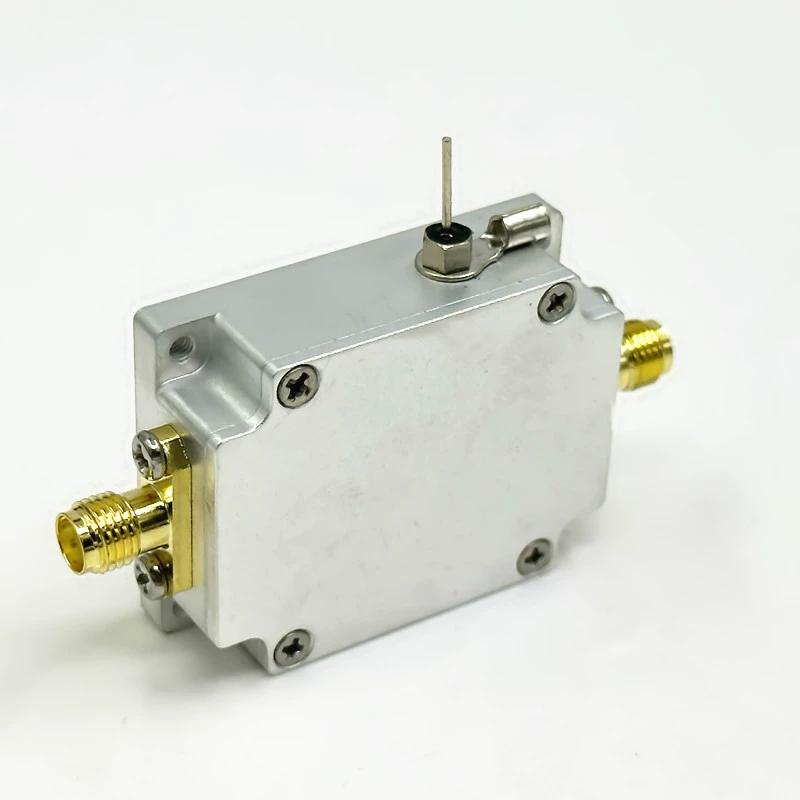

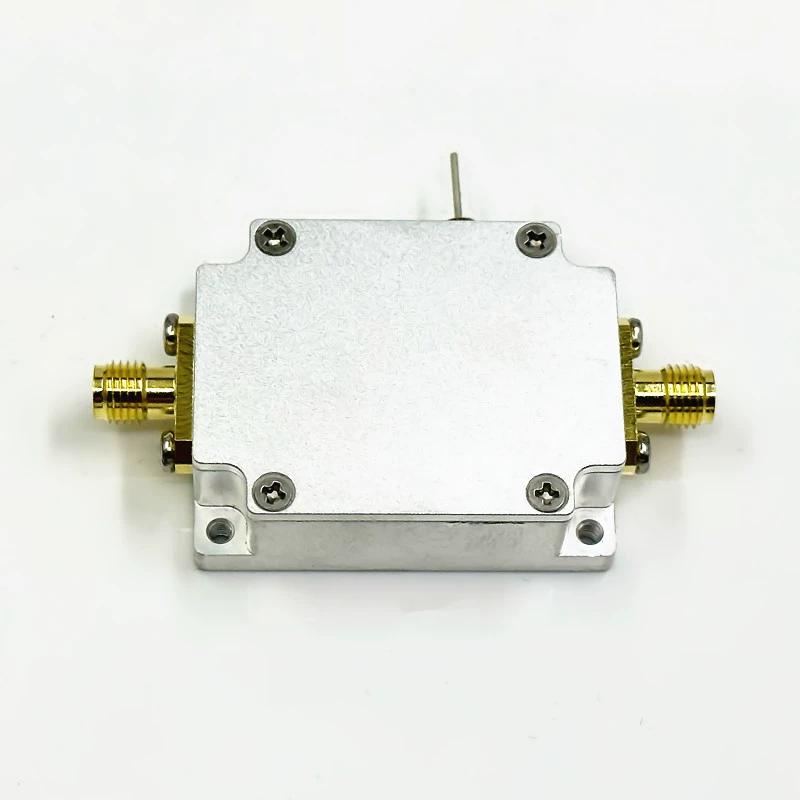

0.5-6.3GHz LNA 33dB High Quality Low Noise Amplifier 5V/130mA with SMA Female Connector RF Accessory
Specification:
- Working frequency: 0.5 - 6.3GHz
- Working voltage: 4.5 - 5.5V (5V is recommended)
- Working current: 130mA
- Amplification gain: 33dB
- SNR: 1.0dB (Typ.)
- Output power: 20dBm (100mW Typ.)
- Working status: class A amplifier
- Connector type: SMA female connector
- Size: 32 x 43 x 17mm
- Product weight: 200g
Wiring method:
- RFin: signal input (signal needs amplification)
- RFout: signal output (output terminal after amplification)
- VCC: power supply positive (through capacitor power supply)
- GND: power supply negative (wire nose and shield case)
Package Included:
- 1 x LNA
