0.5-8G Broadband Low Noise Amplifier Microwave Low Noise RF Amplifier +5V Power Supply
Description:
Low noise amplifier is generally used as high-frequency or intermediate-frequency preamplifier for various radio receivers, as well as amplification circuits for high-sensitivity electronic detection equipment. In the case of amplifying weak signals, the noise of the amplifier itself may seriously interfere with signals, so it is desirable to reduce this noise to improve the output signal-to-noise ratio.

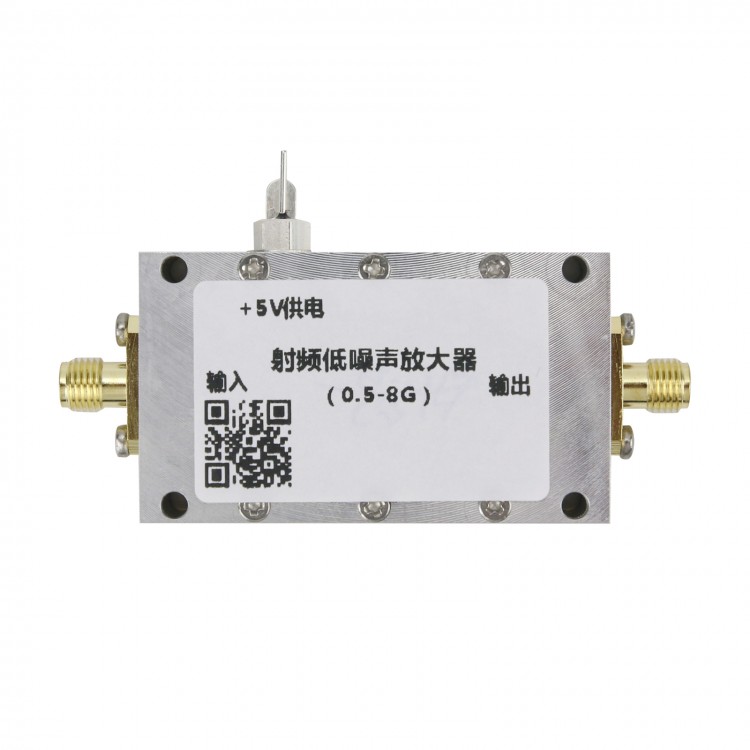

This module adopts imported LNA die and CNC shell, with excellent electromagnetic shielding performance. It can work in the range of 0.5-8G, covering UHF, VHF, L, S, C band receiver systems. It has 30dB high gain and can be widely used in the front end of the wideband receiver system, and can be added to the input end of the spectrum analyzer to improve sensitivity.
Module Parameters:
- Working voltage: +5V single power supply
- Working current: 100mA (low power consumption)
- Operating frequency: 0.5-8GHz

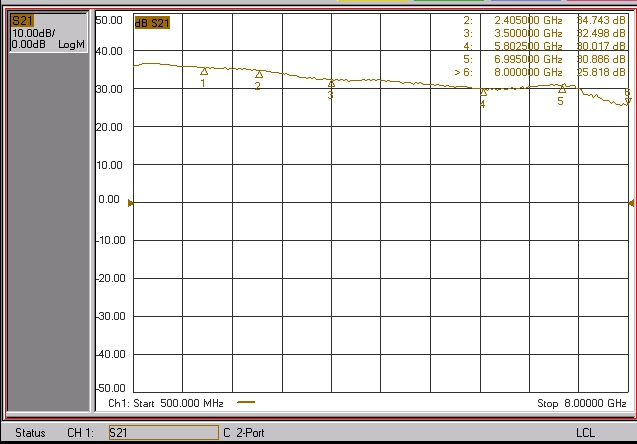

- Gain: 30dB typical (see test curve below)
- P1dB output power: 14dBm at 6GHz
- Noise figure: 1.5dB
- Input and output interface: SMA female connector
- Module size: 53 x 30 x 13mm/2.1 x 1.2 x 0.5" (without the size of connectors)
- With mounting holes
Package Included:
- 1 x Low Noise Amplifier
