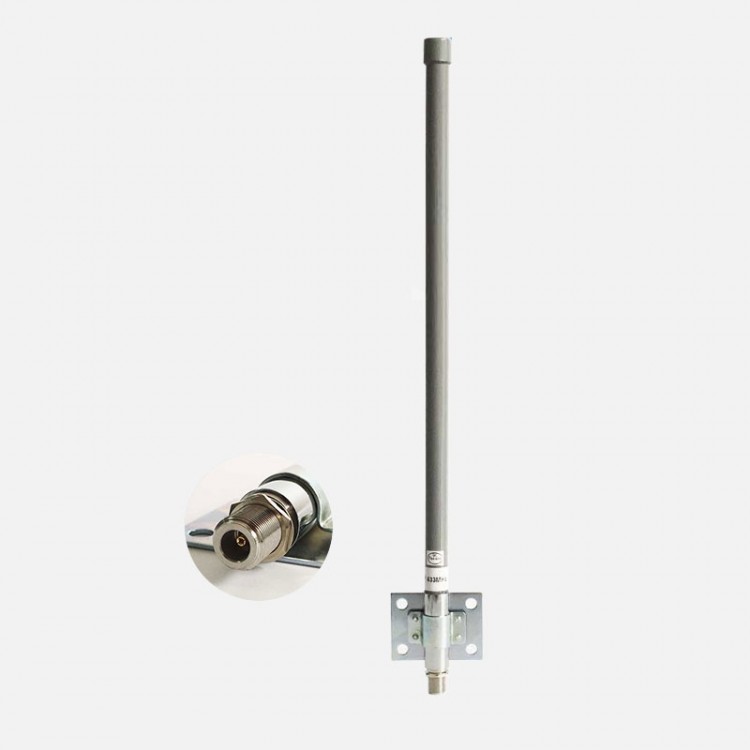

0.6M 1090MHz ADS-B Antenna Omnidirectional Antenna 6DBi + 8M Feeder Line For FlightAware Piawarehan

Availability: In stock, usually dispatched in 1 business day

  • Price:$58.59
  • Price in reward points: 586 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $57.42 $56.25 $54.49 $52.15 Contact US
Quantity:

0.6M 1090MHz ADS-B Antenna Omnidirectional Antenna 6DBi + 8M Feeder Line For FlightAware Piawarehan

Description:

1090MHz ADS-B outdoor omnidirectional fiberglass antenna supports for FlightAware Piawarehan, etc.

Features:
- High-quality FRP: High-quality FRP materials, sturdy and durable, anti-corrosion, can effectively protect the internal vibrator
- Sealed and waterproof treatment: the joints of FRP are all double-sided waterproof treatment, making the antenna suitable for rainy environments
- Pure copper vibrator: pure copper loop vibrator is used inside the antenna, with stable performance, high gain, and low VSWR bandwidth
- Pure copper connector: The antenna connector adopts pure copper connector, with low signal loss
- High transmission efficiency of glass fiber reinforced plastic antenna: The glass fiber reinforced plastic antenna contains pure copper vibrator inside, and the receiving sensitivity is high, and the transmission efficiency is higher than that of the sucker antenna. Compared with the suction cup antenna of the same size, the transmission efficiency of the fiberglass antenna is 20% higher, and the transmission efficiency can reach 90%. The reception sensitivity of the fiberglass antenna is 10bB higher, and the effect is better when used.
- Longer communication distance: Built-in pure copper vibrator, impedance matching accurately, longer communication distance
- FRP protection grade IP67, anti-ultraviolet, no cracking, waterproof, windproof, antifreeze, dustproof, and strong airtightness. Widely used in harsh environments such as the field
- Application field: Automatic dependent surveillance-broadcast (ADS-B)

Specifications:
Electrical parameters:
- Frequency range: 1060-1120MHz
- Bandwidth: 60MHz
- Horizontal lobe width: 360°
- Vertical lobe width: 28°
- Gain: 6dBi
- Standing wave ratio: ≤1.5
- Direction type: omnidirectional
- Maximum withstand power: 100W
- Polarization method: vertical polarization
- Impedance: 50 Ohms

Mechanical parameters:
- Antenna length: 60cm
- Connector type: N female
- Weight: 0.6kg

Fixed accessories:
- Color: gray
- Installation method: fixed to pole

Environmental parameters:
- Wind resistance: 100km/h
- Operating temperature range: -40℃ to 60℃

Package Included:
- 1 x Set of ADS-B Antenna
