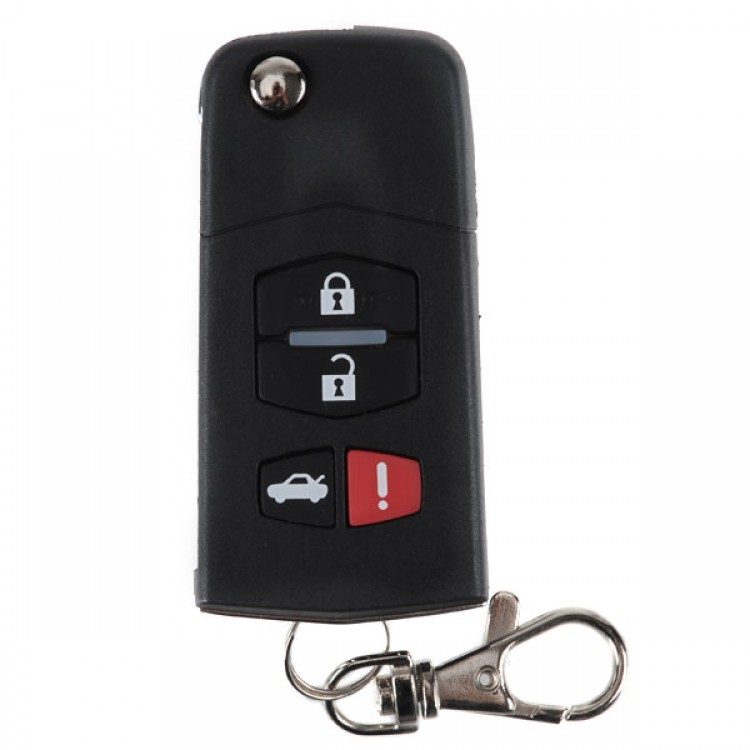

04-2A 315MHz Universal Wireless RF Remote Control Duplicator

04-2A 315MHz Universal Wireless RF Remote Control Duplicator
Features:
- Universal remote control duplicator can easily copy code from other RF remote control without copying device and control the same original receiver.
- Copy the code one by one, saving the copy memory of each button separately.
- Repeatedly copy code from other RF remote control for million times.
- High quality RF remote with chrome metal frame and 4 chrome buttons.

No.	Item	Specification
1	Working voltage	DC12V (27A battery)
2	Working current	≤12mA
3	Operating frequency	315MHz
4	Frequency windage	±0.2MHz
5	Transmitting power	≥10mW
6	Transmitting distance	50~100meters (open space)
7	Transmitting speed	50-60KHz

Application:
- Home/store anit-theft alarm, E-bikes /motorcycles/car alarms, all kinds of door/window controllers, LED and other industrial control
How to use:
- Before starting to copy the code, you need to know the function of each button
- 1. Code Clear
   It’s necessary to clear the original codes of the copy code remote control. Press and hold the “arming” button and “disarming” button simutaneously for 2 seconds till the LED indicator flashes 3 times. Keep pressing the “arming” button and release the “disarming” button, then press the “disarming” button for 3 times within 5 seconds. The LED indicator slowly flashes 3 times then becomes fast flash to indicate the code clear is finished
- 2. Code Copy
    With the original remote control on your one hand, with the copy code remote control on the other hand, approach the two remote controls to each other as close as possible. Press and hold the button to be learned on the original remote control and the button you want to learn on the copy code remote control simutaneously for 3 seconds, the LED indicator flashes 3 times then becomes fast flash, indicating the code is learned/copied successfully. Repeat the above steps to copy the code of other buttons
- 3. Code Retrive
   In case if you lost the codes you are using by accident, don’t worry you can retrive them by following the step below: press and hold the “starting” button and “muting” button simutaneously for 3 seconds, the LED indicator flashes 3 times then becomes fast flash, indicating the codes are retrived now.
