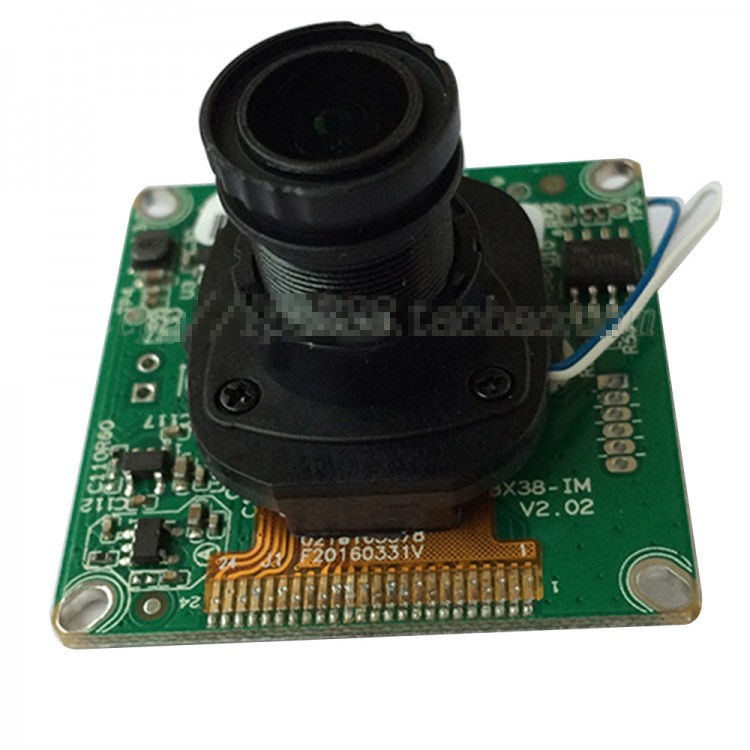

1.0MP Coaxial HF Camera Main Board 720P 3.6mm Analog Monitor Cam Module
Specification:
- 1/4" 1.0 Mage CMOS
- Integration IR-CUT day and night switching
- AHD chip XM310+H42, AHD-M (720P) coaxial HD output
- 1* Photosensitive resistor interface, 1*IR-CUT driver interface (has been connected with the IR-CUT)
- 1* Coaxial video output interface, 1*DC 12V power input interface
- 38mm*38mm single board
- ESD ESD protection 4KV, the default support for UTC coaxial control
Parameter:
- Sensor: 1.0MP 1/4" H42 sensor
- Video resolution: PAL/NTSC: AHD-M resolution (TVL) equates to webcam HD 720P camera
- Minimal illumination: Color: 0.01Lux@(F1.2,AGC ON),0Lux with IR, black and white: 0.001Lux@(F1.2,AGC ON),0Lux with IR
- 1*Photosensitive resistance interface,support photosensitive resistance input signal and image, IR-CUT, infared light linkage
- Shutter: 1/50(1/60)s-1/10,000s
- Support IR-CUT switch
- Lens: M12
- SNR: >58db
- Working temperature: -10~60 deg C, humidity<90%
- Power supply: DC12V-+10%
- Power consumption: <5W
- Size: 38*38mm hole
- Coaxial control: Yes
Package List:
- 1 x Camera module
