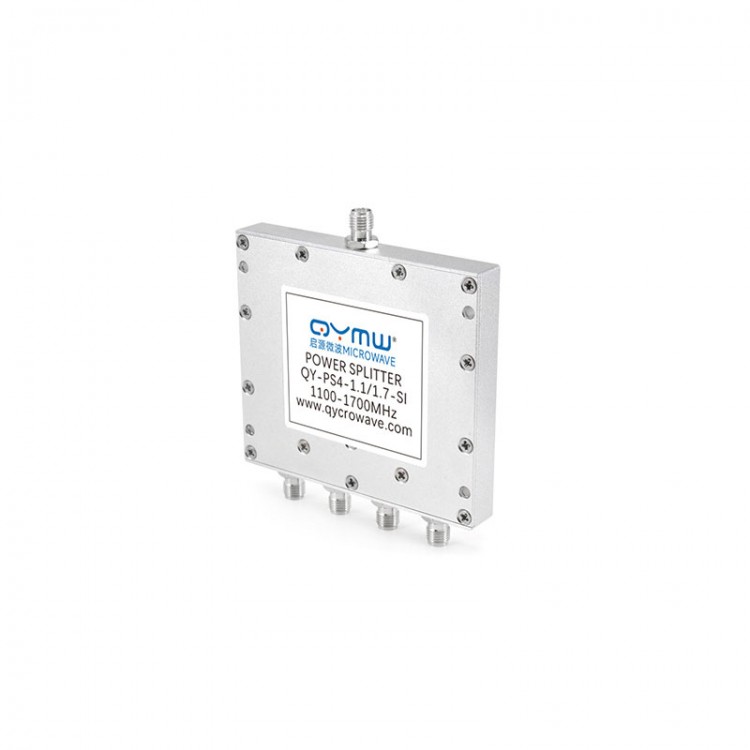

1.1-1.7GHz One to Four RF Coaxial Power Splitter GPS/GNSS Satellite Signal Distributor with SMA Female Connector
Features:
- Microstrip type
- SMA female connector
- 1.1 - 1.7GHz
- Low insertion loss/low SWR/high isolation degree
Application:
- PCS/DCS
- Wireless communication
- Satellite communication/satellite navigation
Electrical Characteristics:
- Frequency band: 1.1 - 1.7GHz
- Insertion loss: ≤0.5dB (excluding the theoretical loss 3.0dB)
- Combined VSWR: typ. 1.2 / max. 1.30
- Distribution CSWR: typ. 1.15 / max. 1.20
- Isolation: typ. 20dB / min. 19dB
- Amplitude balance: ±0.3dB
- Phase balance: ±5°
- Impedance: 50ohms
- Power rating: 35W for divided channel; 2W for combined channel
Mechanical Characteristics:
- Connector type: SMA female connector
- Operating temperature: -40℃ ~ +125℃
- Product size: 66.4 x 75 x 14.7mm
- Net weight: 62g
Package Included:
- 1 x Power Splitter
