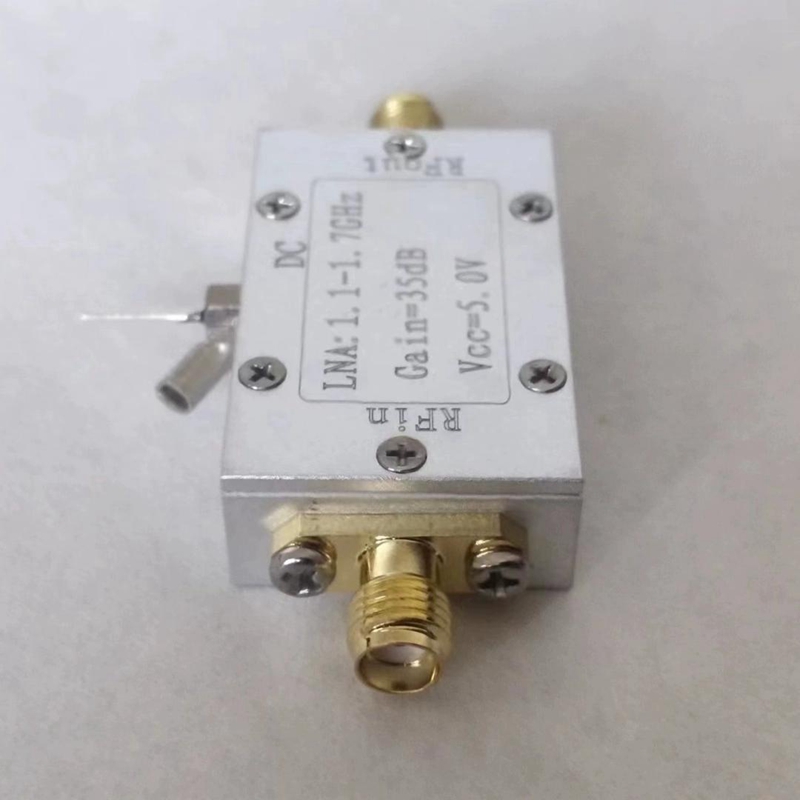

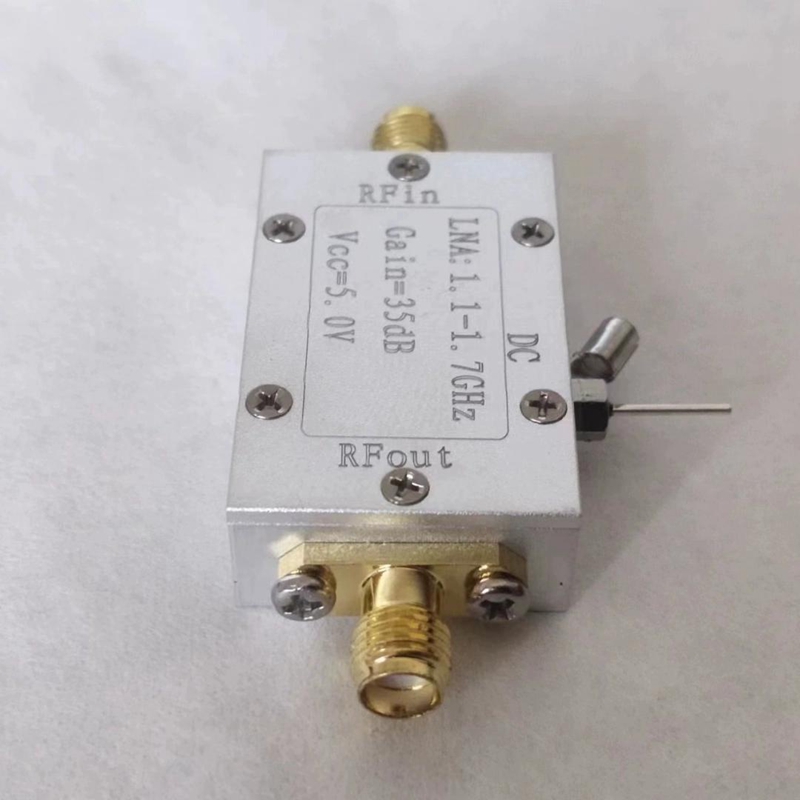

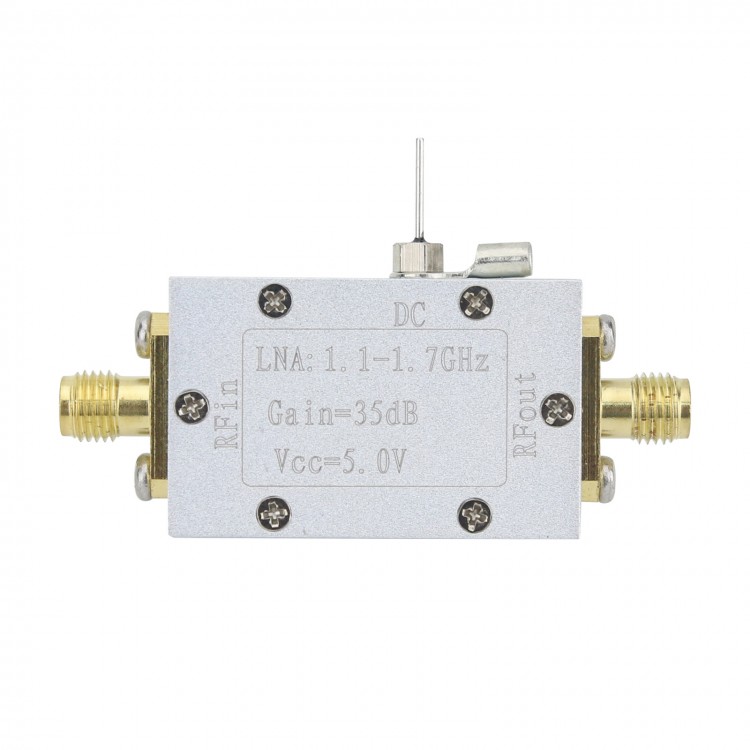

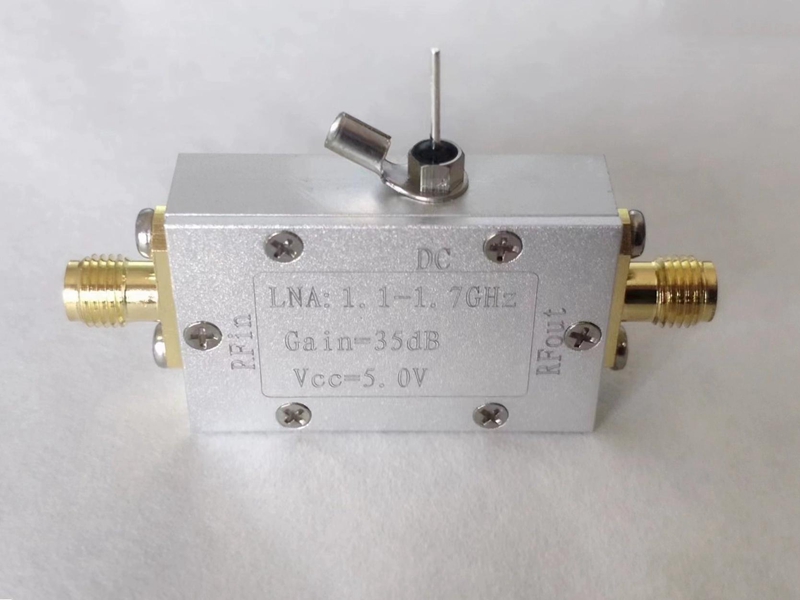

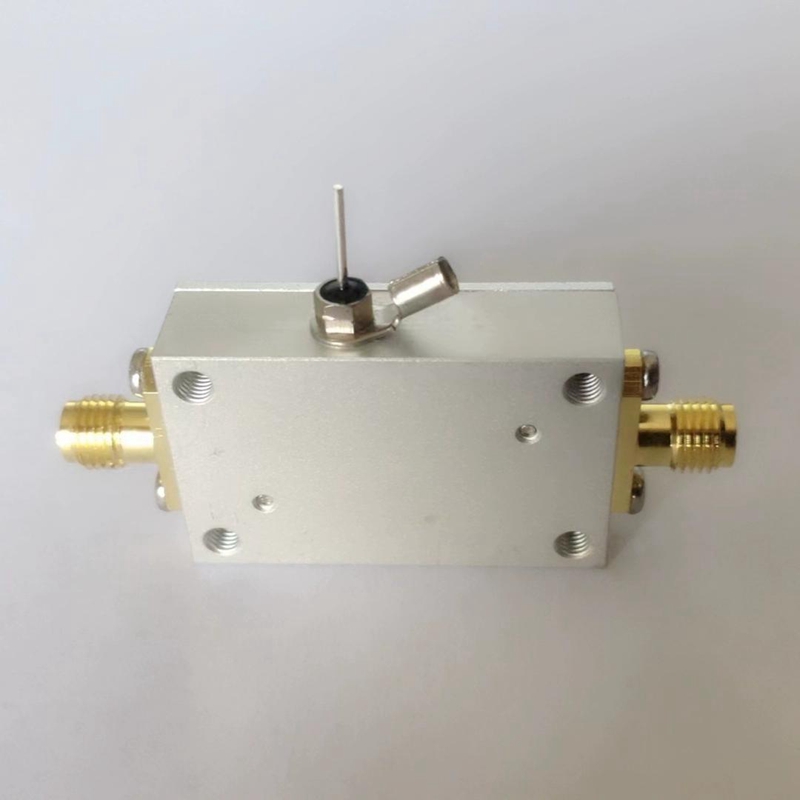

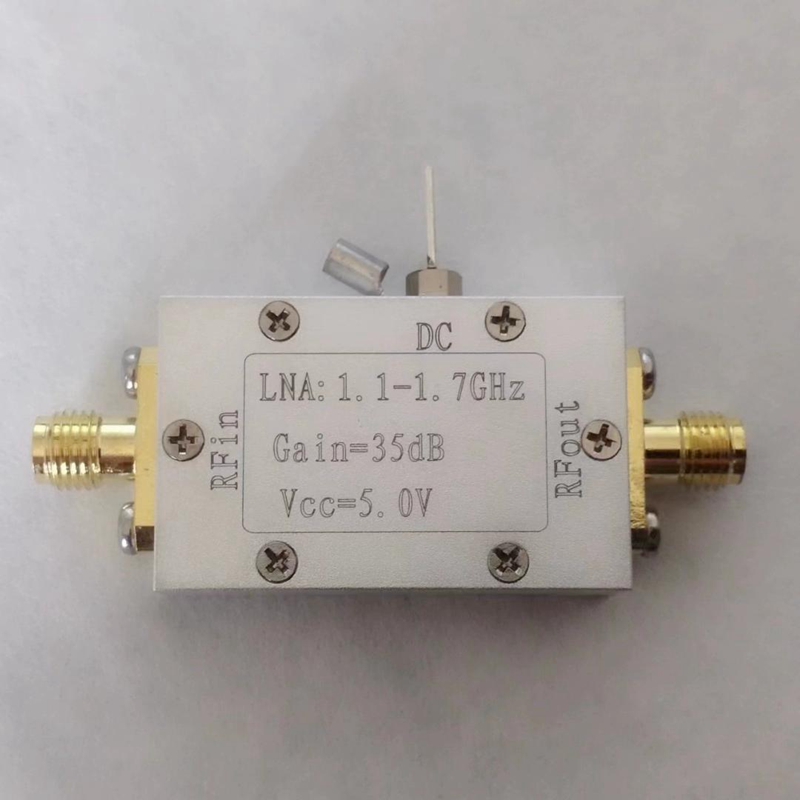

1.1-1.7GHz Wideband LNA 35dB Gain Low Noise Amplifier for GPS/Beidou/GNSS Amplifier High Quality RF Accessory
Description:
- This amplifier has a wide frequency range, stable gain, low noise figure, and a large dynamic range (+20dBm at 1dBP). It is particularly suitable for various satellite positioning systems to receive front-end circuits and improve reception sensitivity. Widely used in Beidou BD, GPS, GLONASS, and Galileo satellite navigation systems.
Specification:
- Working frequency: 1.1 - 1.7GHz
- Amplification gain: 35dB (Typ.)
- SNR: 0.6dB (Typ.)
- Maximum output power: +20dBm (100mW) at 1dB compressed point
- Working current: 130mA (5V)
- Power supply voltage: 5.0V
- System impedance: 50ohm
- Product size: 35 x 22 x 11mm
- Product weight: 22g
Amplifier Gain:
- F= 1.100GHz, Gain=35dB
- F= 1.268GHz, Gain=35dB
- F= 1.561GHz, Gain=35dB
- F= 1.575GHz, Gain=35dB
- F= 1.616GHz, Gain=35dB
- F= 1.700GHz, Gain=35dB
Precaution:
- Please use a linear power supply or battery (not included). The switching power supply itself has a high level of noise, which can cascade into the amplification circuit. It is important not to use a switching power supply.
Package Included:
- 1 x Low Noise Amplifier
