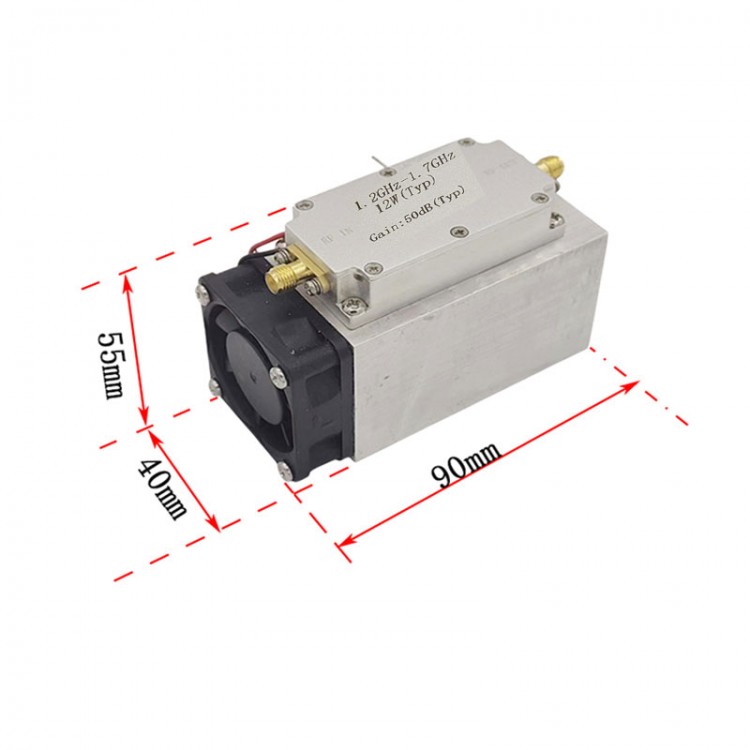

1.2GHz–1.7GHz 12W RF Power Amplifier RF Power Amp with SMA Female Connector (with Cooling System)
Important Notes Before Purchase:
* When using an antenna for transmission, make sure to select an antenna with a VSWR below 2 at the corresponding frequency.
* Always connect a load to the output before applying DC power. Operating the module without a load may cause damage.
Specifications:
* Operating Frequency: 1200MHz – 1700MHz
* Input/Output Impedance: 50Ω
* Maximum Input Power: 3dBm at 2mW
* Output Power: 10W at 24V DC, 12W at 28V DC
* Power Supply Voltage: 24V–28V (24V recommended)
* Operating Current: 1.5A–2A (varies with frequency and supply voltage)
* Connectors: SMA female on both ends
* Enclosure: Sandblasted aluminum casing
* Cooling: Aluminum heatsink with normally-on cooling fan
Attention:
* Ensure the input (RFin) and output (RFout) ports are connected first, and only then connect the DC power supply.
* When supplying DC power to the module, make sure the positive and negative terminals are connected correctly. Do not reverse the polarity, as this can damage the module!
Packing List:
* 1 x RF Amplifier
Packaging Details:
* G.W.: 0.22kg
