1.3G 7W Microwave Wireless Image Audio Video Transmission Transmitter Receiver Enhanced Version

1.3G 7W Microwave Wireless Image Audio Video Transmission Transmitter Receiver Enhanced Version

Product Description:
Taiwan origin inport large power,cost-saving,convenient proble and migration.
The utility model is especially suitable for complicated blocking interference city environment.Compared with the conventional 1.2G/2.4G band transmitter on the market, it has better encryption, anti-interference and penetration.
- The transmitter and the receiver co-channel pairing use,better encryption, anti-interference and penetration.
- Good confidentially and image sound little distortion,strong anti-interference, you don not need to wire.
- Dual channel audio output,little image sound distortion
- Compatible DVD,DVR,Camera,IPTV,Satellite set-top box,Digital TV set-top box and other audio video output device.Used to monitor or family audio video
- Wireless receiver image clear and stable,colourful,Clear timbre, no noise
- Support PAL/NTSC standard video transmisson
- All hardware design,you don't need to install software,plug and play,simple and convenient
- Tranmition distance:6~8KM (Open area no block use with high gain antenna)
- Because this equipment transmitter power is bigger, therefore heating power is higher, this is common sense and normal phenomenon. Customer can install cooling fan or aluminum case to cool down, or wrap the thin wood board and insulated bag to heat insulation,preventing scalding.

Note:The larger the transmitter power is,the bigger the size is,the farther signal transmition distance is,the higher product temperature is.

Function property:
- Taiwan origin device, pure imports,use international advanced transceiver components manufacture meticulously, quality assurance, long life.
- Strong anti-interference. This machine uses very high frequency microwave transmission mode with carrier frequency up to 1.3 GHZ. It can not only effectively avoid the crowded 900MHZ band wireless phone signals or all kinds of household appliances and electric spark interference,but also greatly avoid the interference for the emission frequency on the other receiving devices, encryption is higher, more secure.
- Small image sound distortion.This machine adopts the superior performance frequency adjustment mode,audio / video broadband characteristics, and the signal-to-noise ratio is very high, the sound distortion is small, and the real stereo wireless transmission.

1.3GHz microwave wireless image transmitter technology parameter:
Transmitter frequency:1.280GHz   1.300GHz  1.320GHz  1.340GHz
Transmitter power:7W
Working voltage/current:12V/750mA
Image signal:NTSC/PAL，1Vp-p（2KOnm)
Transmitter dimension:12X6X2.2cm(antenna connector is included)
Receiver dimension:11X6X2.6cm(antenna connector is included)
Matching antenna:5 Db  Length:17cm
Transmitter 250g+antenna 18g:268g
Receiver 83g + antenna18g:101g
Full set: about 645g

Problems:
- The transmission distance is completely different in different environment,because there are high barriers, bottom wall thickness,sparse trees and so on, For example,the 2000mW transmitter can pass 1-1.5 km no-barrier in open environment.
In the open urban barrier free environment ,It can transfer 500-800 meters.
But it can merely transfer two hundred meters or few tens of meters in the crowed building environment and it can not transfer possibly.
If in the barrier environment,you can choose to add outdoor antenna and you place outdoor antenna frame to the highest position.Make the distance between the antenna and the antenna broadened and can see each other, then the transmission distance is the transmission distance   marked on the date.
- How do you test the wireless video transmission system you just bought?
Answer: A.First,make the camera (camera) power on, connected to the monitor (TV), confirmed that the camera (camera) and monitor (TV) can work properly; B.Connect the camera to the transmitter,receiver and power supply, connect the receiver,the monitor and power supply, and then adjust button on the the receiver to select channel, make sure that the receiver channels and transmitter channels exactly the same; you can use this equipment normally.
- Our transmitter receiver system can provide 4 channels.That' to say,you can use 4 points at mot in the same area present.
- Can other people receive my signal durning using the wireless video transmitter receiver system?
It there is someone uses our wireless video transmitter receiver system in the nearby area,he may receive your signal.If you have some special needs,we can provide image/sound encode transmission service.

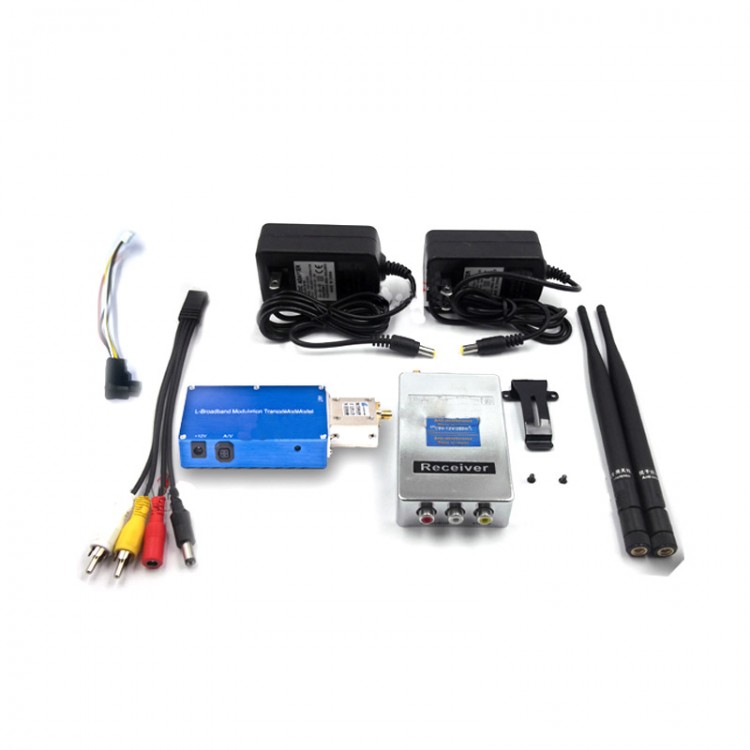

Package List:
- 1 x Transmitter
- 1 x Receiver
- 2 x Omnidirectional small antenna
- 1 x Transmitter 4P connection wire
- 1 x Four colour
- 1 x Tieline
- 2 x Power supply (The transmitter uses 2A current power adapter;The receiver uses 1A current power adapter)
- 1 x Instruction
- 1 x Black top grade seal box

Attention:Receiver AV connecting wire in not oncluded.You need to buy extra.
