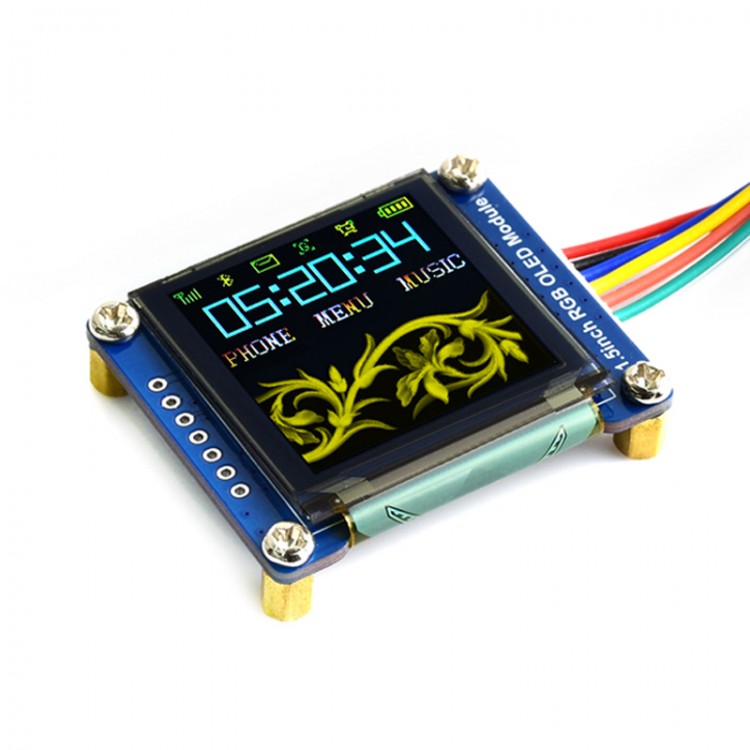

1.5 Inch RGB OLED Display Module Display Screen Expansion Board For Jetson Nano Raspberry Pi
Overview:
This is a 1.5inch RGB OLED display Module, 128x128 pixels. It can display 65K colors, with embedded controller, communicating via SPI interface.
Features:
- 128x128 high resolution, 65K colors, clearly displays colorful images
- Supports 4-wire SPI or 3-wire SPI interface, communication way can be selected via onboard resistor
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications:
- Driver chip: SSD1351
- Interface: 4-wire SPI, 3-wire SPI
- Display color: 16bit, 65K colors
- Resolution: 128x128
- Viewing angle: >160°
- Operating voltage: 3.3V / 5V
- Dimension: 44.5 x 37 (mm)
Package Included:
- 1 x Set of OLED Display Module
