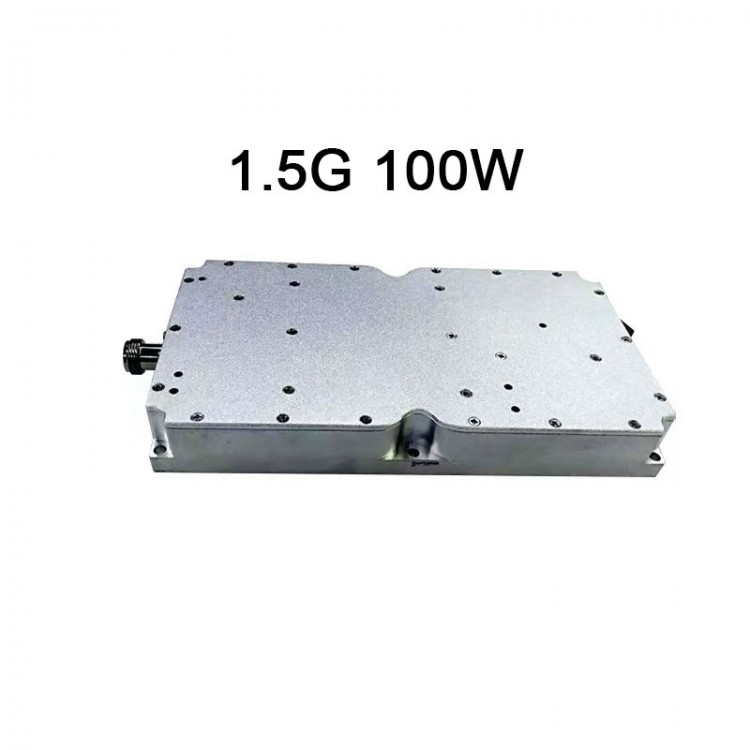

1.5G 100W RF Power Amplifier Module RF Power Amp with N Female Connector as RF Output Connector
Specifications:
* Operating frequency: 1.5G
* Maximum output: ≥ 50dBm
* Output power: ≥ 100W
* In-band gain flatness: ≤ 1±0.5dBm
* Working current: ≤ 8-12A
* Standing wave of output port: ≤ 1.5
* Clutter suppression: ≥ 65dBm
* Harmonic suppression: ≥ 11dBm
* RF output connector: N female
* 27V power supply interface: 2W 2-pin
* Scan frequency: 60-250KHz
* VCC supply reference: 28V (24-28V)
* Weight: 1kg/2.2lb
* Hole spacing: 191.5 x 101.5mm/7.5 x 4"
* Dimensions: 200 x 110 x 27mm/7.9 x 4.3 x 1.1"
* Operating temperature: -20°C to +60°C
* Installation: Heat sink is needed for the power amp
* Standing wave protection: The standing wave protection turns off the power amplifier when there is no antenna connected
* Temperature protection: When the temperature exceeds 80°C, the power amplifier will be automatically turned off
Package Included:
* 1 x Power amplifier module
