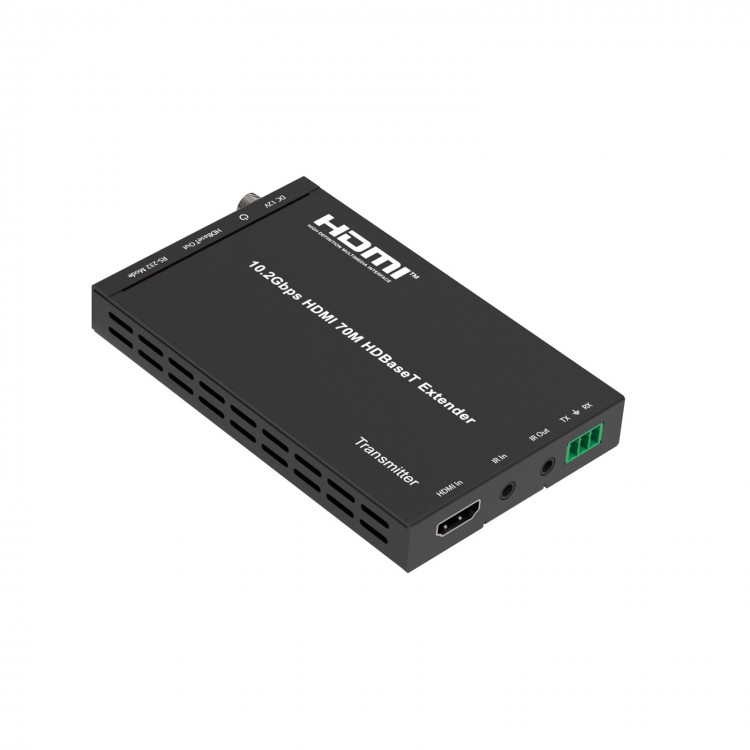

10.2Gbps HDMI Extender Over Ethernet Cable Cat5e Cat6 UTP 4K 3D 1080P 70M HDC-E70C

Availability: In stock, usually dispatched in 1 business day

  • Price:$116.15
  • Price in reward points: 1162 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $113.83 $111.50 $108.02 $103.37 Contact US
Quantity:

You might like

  • $0.00
  • $0.00
  • $0.00

10.2Gbps HDMI Extender Over Ethernet Cable Cat5e Cat6 UTP 4K 3D 1080P 70M HDC-E70C

Description:

The 10.2Gbps HDMI Extender extends HDMI signals and bidirectional wideband infrared control signals to 70 meters (Cat6 cable up to 70 meters) through Cat5e or Cat6 network cables (Cat5e/6).

It converts HDMI signals to standard signals for HDBaseT and then transmits them via LAN cable. It can easily control signal source device or display device from a remote end through a bi-directional infrared interface. It supports RS-232 signal transparent transmission with a resolution of up to 4K x 2K @ 30Hz.

It can be widely used in video conferencing systems, multimedia signal broadcasting, HDMI signal extension and other fields.

Features:
- Compliant with HDCP 2.2.
- Support POC (Power Over Cable) function. Simply connect an external 12V / 1A power supply to TX or RX device. The other device does not require external power supply, and the POC power consumption is less than 10W.
- Support the use of a UTP network cable (Cat5e/6) to achieve long distance transmission
- Transmission distance: over Cat6 network cables
*70M: 1080P @ 60Hz / 36bit; 3D 1080P @ 30Hz / 36bit;
*40M: 1080P @ 60Hz / 48bit; 1080P @ 120Hz / 24bit;
*3D 1080P @ 60Hz / 36bit; 4K x 2K @ 30Hz / 24bit.
- Support display resolution up to 4K x 2K @ 30Hz
- Support two-way 20-60KHz wideband infrared control signal transmission
- Support two-way RS-232 control signal transparent transmission

Technical Parameters:
Parameters:
- HDCP standard: HDCP 2.2
- Video bandwidth: 10.2Gbps
- Video resolution: up to 4Kx2K @ 30Hz 4: 4: 4
- Transmission mode: For HDBaseT
- Transmission distance: 1080P≤70m; 4K x 2K≤40m
- Static protection: ±8kV (air discharge), ±4kV (contact discharge)

Transmitter Connection:
- Input: 1 x HDMI Type A [19-pin female port]
- Output: 1 x HDBT Out [RJ45]
- Control:
* 1 x IR In [3.5mm Stereo Mini-jack]
* 1 x IR Out [3.5mm Stereo Mini-jack]
* 1 x RS-232 [Terminal]

Receiver Connection:
- Input: 1 × HDBT Out [RJ45]
- Output: 1 × HDMI Type A [19-pin female port]
- Control:
* 1 × IR In [3.5mm Stereo Mini-jack]
* 1 × IR Out [3.5mm Stereo Mini-jack]
* 1 × RS-232 [Terminal]

General Specifications:
- Shell: Metal case
- Colour: Black
- Size: Transmitter/Receiver: 120 x 74 x 16mm (LxWxH)
- Weight: Transmitter/Receiver: 240g
- Power supply: Input AC100 ~ 240V 50 / 60Hz; Output DC 12V / 1A (US / EU standard, CE / FCC / UL certification)
- Power consumption: 10W (maximum)
- Operating temperature: 0℃ to 40℃/ 32℉ to 104℉
- Storage temperature: -20℃ to 60℃ / -4℉ to 104℉
- Relative humidity: 0 ~ 90% RH (non-condensing)

Package Included:
- 1 x HDMI Extender Transmitter
- 1 x HDMI Extender Receiver
- 2 x IR Transmitting Cables
- 2 x IR Receiving Cables
- 1 x 12V/1A Power Adapter
- 1 x User Manual
- 4 x Lifting Ears
- 8 x Screws
- 2 x 3-Pin Terminals
- 8 x Feet Pads
