10-6000MHz Bias Tee DC Blocker RF Microwave DC Bias DC Feed For Active Antenna Wideband Amplifier

Availability: Out Of Stock

  • Price:$7.08
  • Price in reward points: 71 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $6.94 $6.80 $6.58 $6.30 Contact US
Quantity:

10-6000MHz Bias Tee DC Blocker RF Microwave DC Bias DC Feed For Active Antenna Wideband Amplifier

Applications:

- RF power supply of active antenna
- DC blocking of output of wideband amplifier
- Communication data is injected through RF end

Parameters:
- Frequency Range: 10-6000MHz
- Insertion Loss: 0.3dB@512MHz; 0.45dB@1575MHz
- Maximum Voltage: 50V
- Maximum Current: 500mA
- RF Connector: SMA-K (external thread inner hole)
- System Impedance: 50 ohms

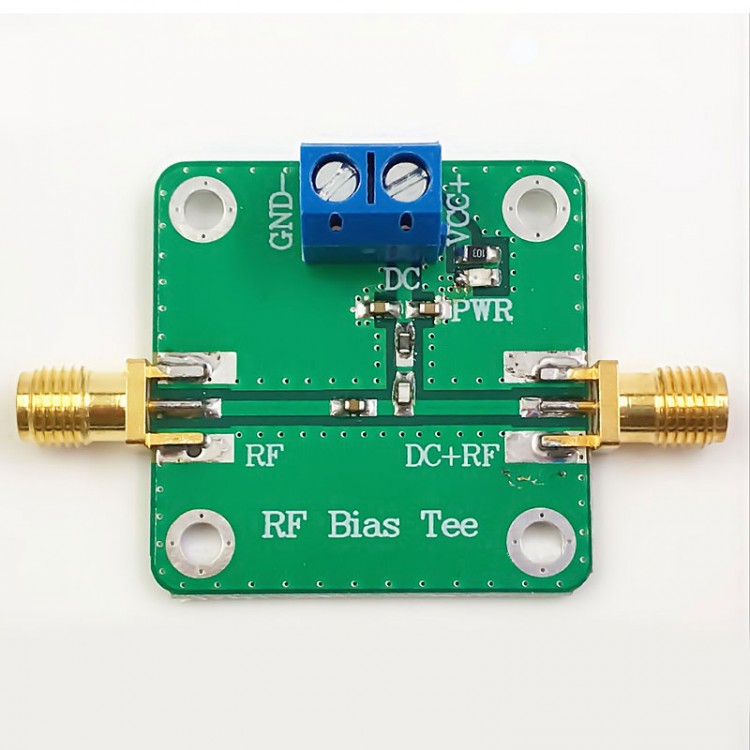

Wiring:

- DC: To external DC power supply
- RF: RF signal terminal (this port can only transmit RF signals)
- RF + DC: RF DC bias (This port can transmit RF and DC bias)
- GND-: Common ground terminal for DC power supply
- VCC +: DC power supply terminal

Package Included:
- 1 x Bias Tee
