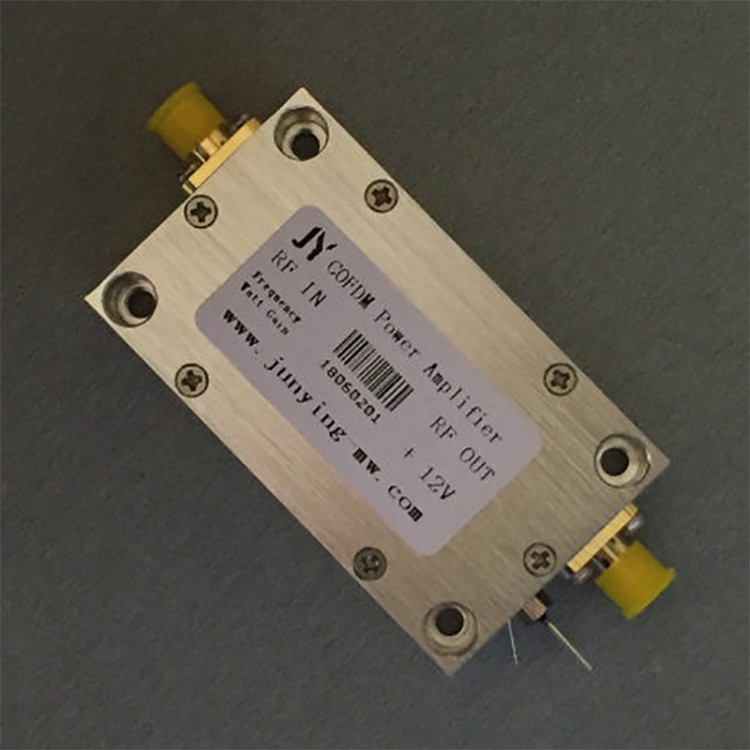

100-550M Linear Power Amplifier RF Power Amp Module 1W 12V For UAV COFDM Digital Image Transmission
Specifications:
- Frequency range: 100-550MHz; continuous 32MHz
- Power gain: 29±1dB
- Input power: 0±1dBm
- Output power: 29.5±0.5dBm for COFDM
- Spectrum shoulder distance: ≤ -32dBc
- Power supply voltage: +12V
- Working current: 450±50mA
- Temperature range: -25 to 55℃
- Module weight: 60g
- Module size: 62*36*14 mm (exclude the size of connectors)
- RF connector: SMA-K
- Impedance: 50 ohms
Package Included:
- 1 x Set of Linear Power Amplifier
Note: The module needs to use a radiator for auxiliary cooling.
