Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $97.05 | $95.07 | $92.10 | $88.14 | Contact US |

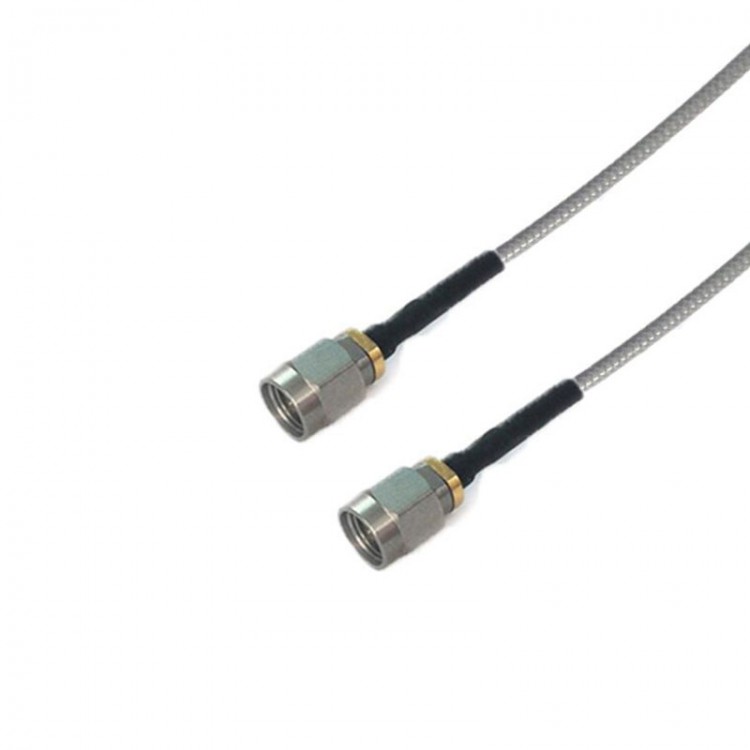

1000mm 2.92mm Male to 2.92mm Male RF Cable DC-40GHz 50ohm with Low Loss and Stable Phase
Specification:
- Impedance: 50ohm
- Frequency: DC-40GHz
- Return loss/VSWR: 1.35 to 40GHz
- Phase stability vs. flexure: N/A
- Amplitude stability: N/A
- Shielding effectiveness: ≤ -100dB at 1GHz
- Phase matching: On request
- Signal delay: On request
- Power handling: 90watt at 2GHz at sea level, VSWR1.0
- Distortion: 4.4dB/m at 40GHz
- Diameter: 2.2mm
Package Included:
- 1 x RF Cable
