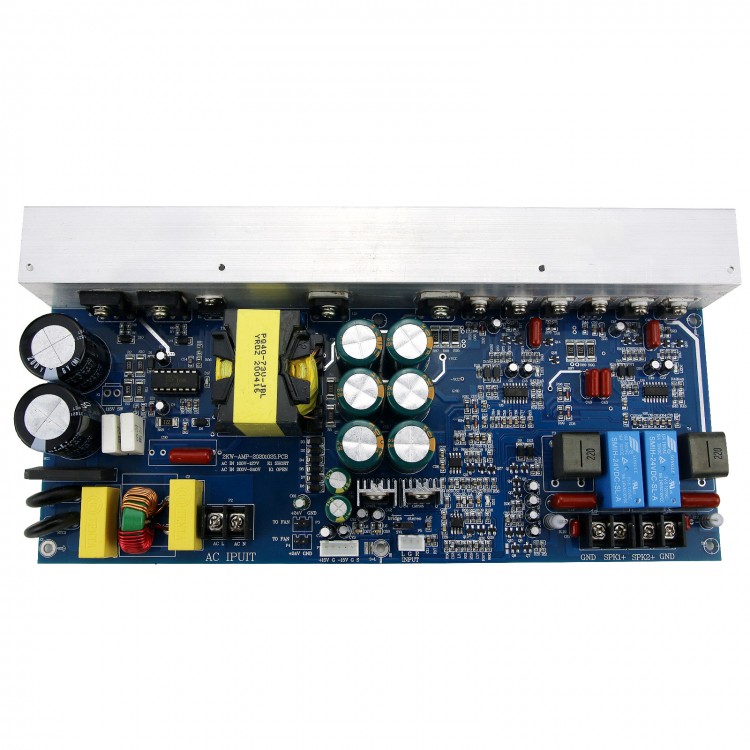

1000W Digital Amplifier Board Stereo 2 Channel Power Amp Board 500W+500W with Switching Power Supply

Availability: In stock, usually dispatched in 1 business day

  • Price:$97.04
  • Price in reward points: 970 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $95.10 $93.16 $90.25 $86.37 Contact US
Quantity:

1000W Digital Amplifier Board Stereo 2 Channel Power Amp Board 500W+500W with Switching Power Supply

Features:

1. Size: length 270mm, width 130mm, height 50mm.
2. Power 500W+500W.
3. The load speaker impedance is 4-8 ohms.
4. Power supply is AC 220V.
5. With temperature protection, power overload protection, speaker short-circuit protection, output DC protection.
6. With DC 24V output interface for DC fan.
7. Auxiliary power supply +15V 0 -15V output, output current 1A can be used for the pre-amp board.
8. With pressure limit circuit, 2-channel red LED lights are on to represent the pressure limit, preventing sound overload and distortion.
9. Three-core row seat L G R is the signal input.
10. The five-core row seat G S is connected in parallel with the left channel input.
11. SW1 bridge input and stereo input conversion. Only the left channel can be bridged. The power amplifier bridges the output speaker 8 ohm to the two ports of SPK1+ and SPK2+.

Package List:
1 x Amplifier Board
