100KHz-1.7GHz RTL08THFR+ SDR Radio Upconverter+1PPM TXCO RTL-SDR Receiver RTL2832U+R820T2 SDR
Description:
-Software Defined Radio (SDR) is a new type of radio broadcasting communication technology, which is based on a software-defined wireless communication protocol instead of hardwired implementation. Frequency bands, air interface protocols and functions can be upgraded through software downloads and updates, without completely replacing the hardware.

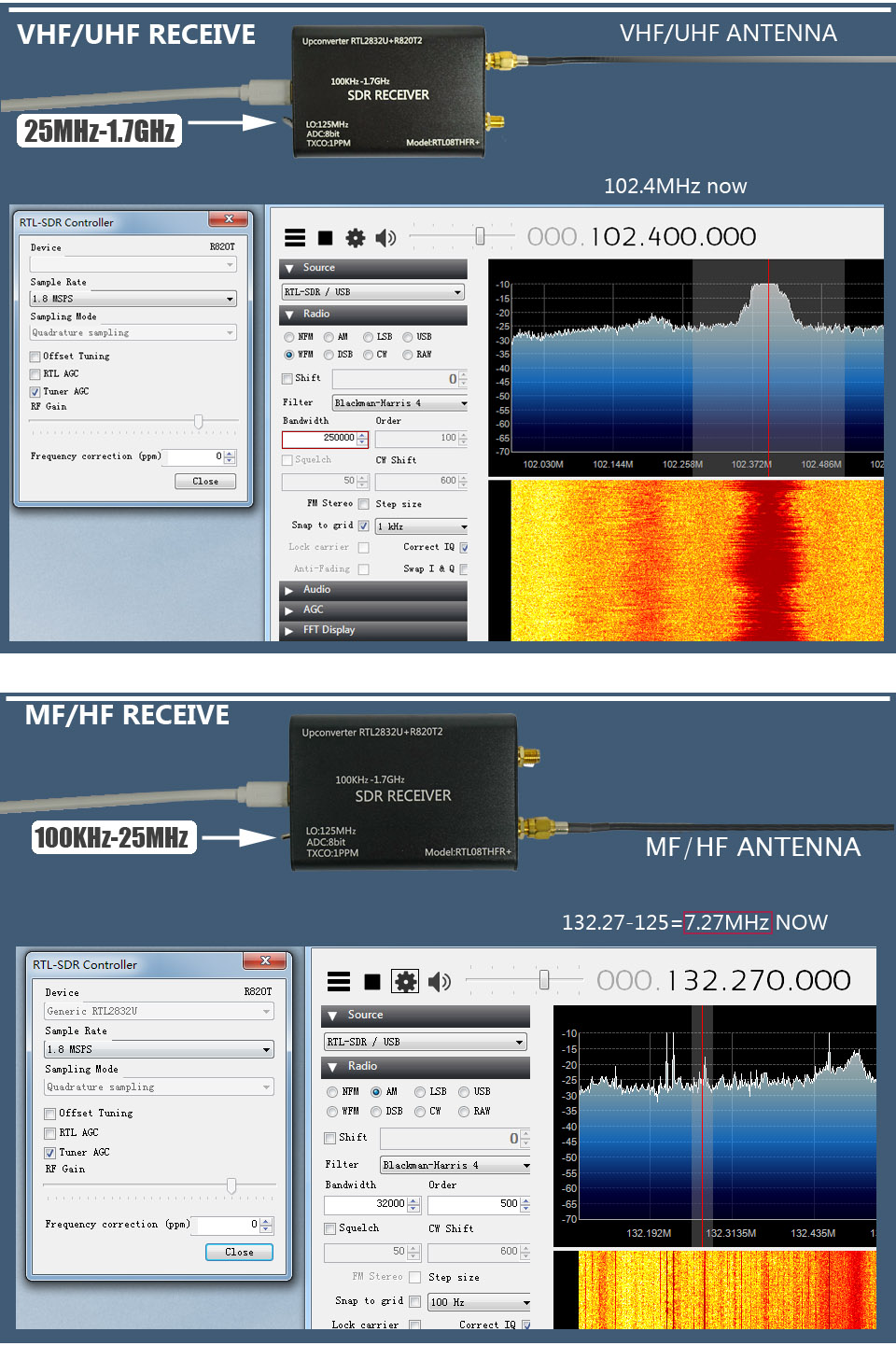

-100KHz-1.7GHz full-band RTL-SDR receiver, can be connected to computers, Android phones and other devices, use SDR software to receive 100KHz-1.7GHz electromagnetic waves, support AM, FM (NFM, WFM), CW, DSB, LSB, USB demodulation. It can be used to receive medium wave, short wave, FM radio, short wave single sideband communication, intercom call, aviation band, etc. (added the function of detecting mute, CTCSS, DCS, scanner, digital signal, automatic scanning, etc.).
Specification:

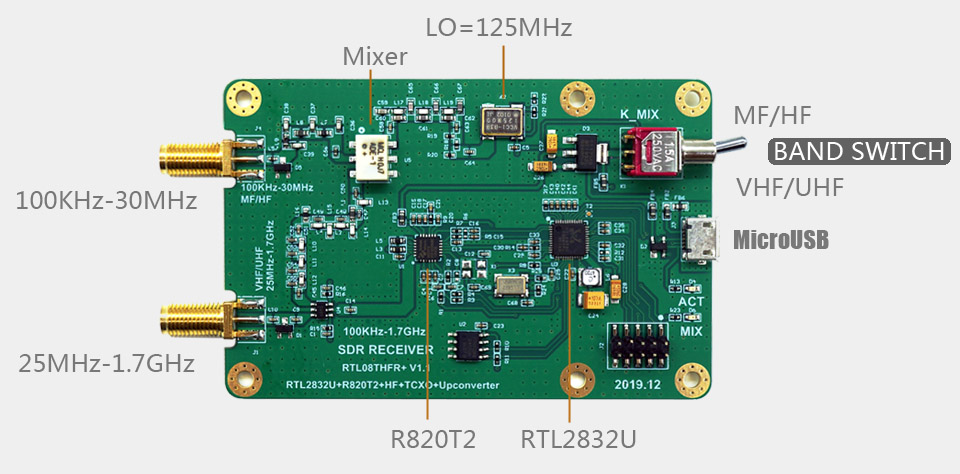

Model: RTL08THFR+
Frequency range: 100KHz-1.7GHz
Chip: RTL2832U+R820T2
ADC bits: 8bit
TCXO: 1ppm
Bandwidth: 3.2M
Local oscillator: 125MHz
Feature:
The frequency conversion size and hole positions on the TCXO temperature compensated crystal oscillator are the same as the Raspberry Pi motherboard.

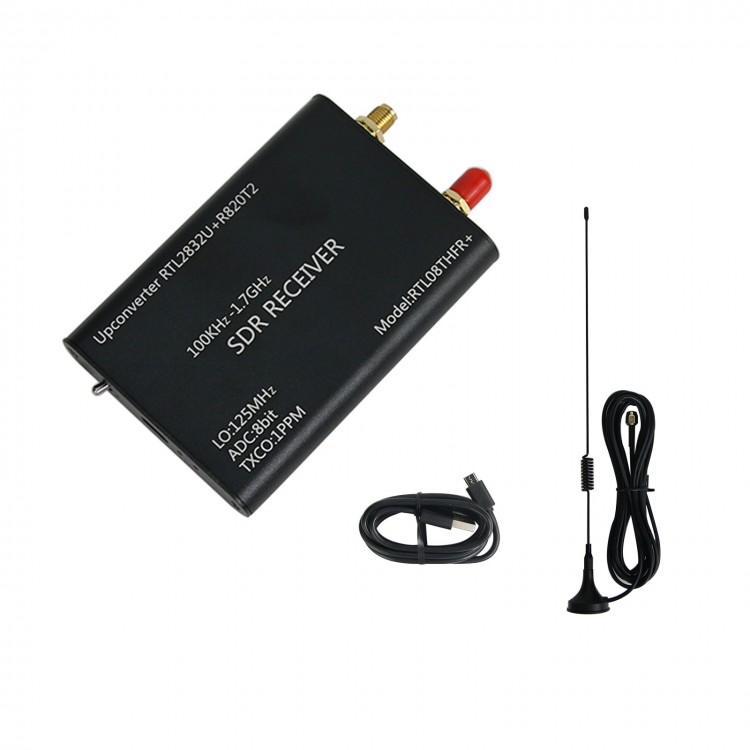

Package List:
-1 x RTL08THFR+ SDR
-1 x MicroUSB Data Cable
-1 x GSM Antenna
