100W*2 Bluetooth HiFi Amplifier DAC Headphone Amplifier Amp BT5.0 PA-01 Silver + Power Cord Adapter

100W*2 Bluetooth HiFi Amplifier DAC Headphone Amplifier Amp BT5.0 PA-01 Silver + Power Cord Adapter

Features:
-3-In-1: Power amplifier, decoder and headphone amplifier in one.
- ES9018K2M Decoder Chip: Supports 192KHz/32bit sampling. SNR is up to 127dB. THD is lower than -120dB. It creates HiFi sound for users.
- Soft Start Power Switch: It protects your speakers from impact and interference when the amplifier is on/off.
- High-frequency Loop Resistance CV Power Management System: It is safe to plug into DC power supply without electric arc generated.
- Against Surge: Protects speakers from being damaged when it turns off.
- BTM308-C Bluetooth Audio Module: With QCC3008 chip, it supports A2DP, AVRCP, HFP, TWS, AAC, I2S, APTX, APTX-LL. 16M SPI FLASH memory chip is used.
- Bluetooth 5.0 Chip: Ensures quality communications, excellent compatibility and amazing performance.
- Compatibility: Fits 99% of mobile phones and tablet PC with Bluetooth. Effective range is up to 10m.
- 3pcs Independent op amp. It is easy to adjust bass and treble. Original relay is used for lossless switching of audio input signals.
- 2-Channel: With total output power up to 200W, 2pcs amplifier IC can drive 6" and 8" speakers.
- Special inductors create clearer, more delicate and dynamic sound. Ring closure package, with better anti-interference effect, makes it perfect for high-end digital circuits.
- Enjoy Your Music: With professional HiFi headphone amp chip, you can enjoy music even at night.

Specifications:
- Model No.: PA-01
- Device Power: 100W*2
- Headphone Amplifier: 700mW*2@32Ω. 156mW@300Ω
- Power Supply: DC15-24V (Port with outer diameter 5.5mm and inner diameter 2.5mm)
- Impedance: 4-8Ω
- Dimensions: 133 x 36 x 149 mm
- N.W.: About 0.5kg

Package Included:

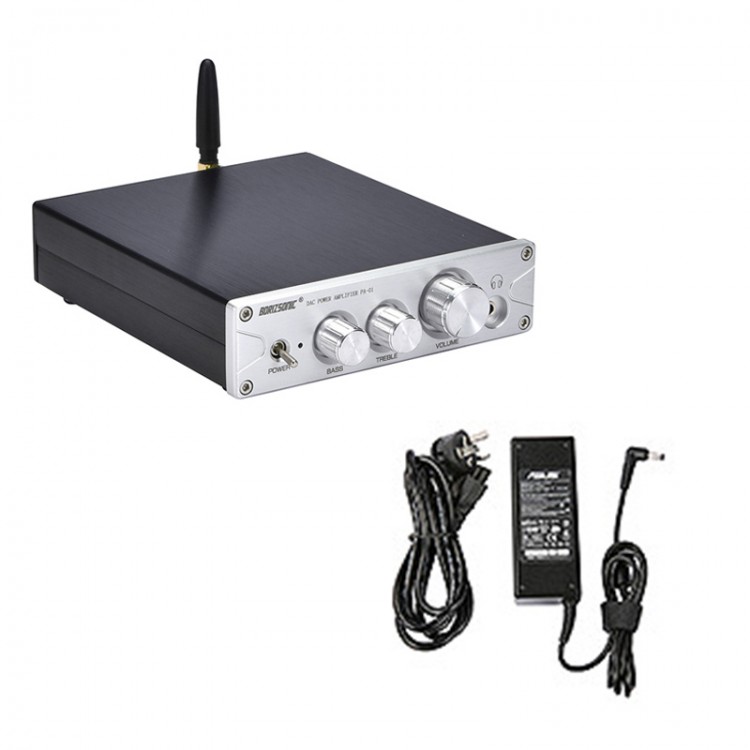

- 1 x PA-01 Power Amplifier with Antenna
- 1 x Power Cord
- 1 x Power Adapter
