1080P USB3.0 Video Card HDMI PS4 Douyu OBS Mobile Game Live

1080P USB3.0 Video Card HDMI PS4 Douyu OBS Mobile Game Live

Product Description:
- USB3.0 free drive high definiotion acquiition box,upport 1080P/60Hz input,compatible WIN7/8/10/Linux/OS,compatible OBS,EDIUS,Xsplit,Douyu,YYPP
- LeTV live broadcast,video conferencing,webcast.Through converter it can storage and broadcast mobile game,PS4 game,camera video.
- Broadcast live iphone game converting wire:Click here
https://item.taobao.com/item.htm?spm=2013.1.0.0.LwA7H2&id=551497550656
- The HDMI acquisition card is specially designed for video broadcast.USB3.0 free drive,plug and play,support 1920*1080,60 pin/second with special software,achieving HD live broadcast,video conferencing,medical device acquisition,video storage.
- Solve the audio and frame ssynchronous problems.

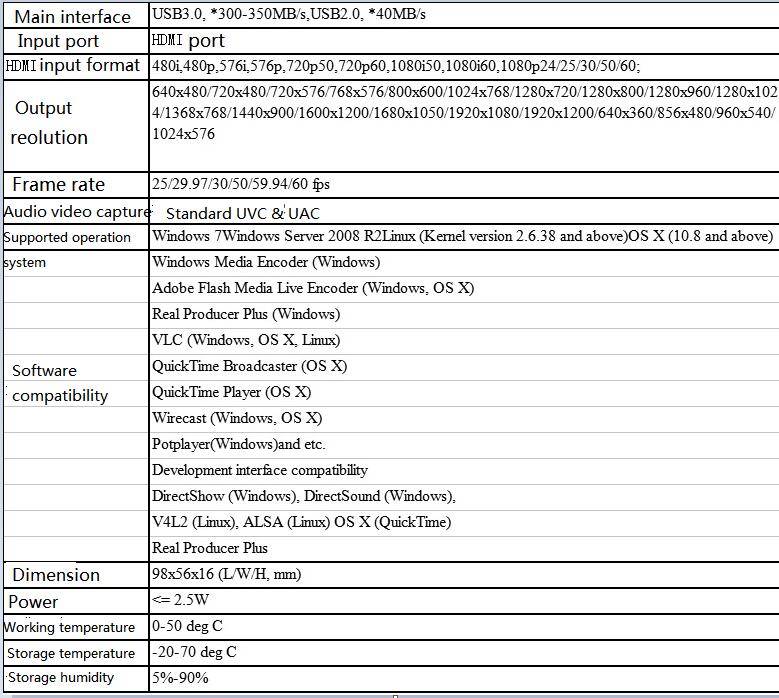

Product Parameter:
- Interface:USB3.0
- Input interface:1 pcs HDMI interface
- HDMI video input:one-channel 1080P/60Hz HDMI HD
- HDMI audio input:one-channel LPCM audio signal
- Standard:HDMI input format
- Correspond to the HDMI 1.4a standard,the highest supports 1080p/60Hz 8-bit,(RGB,YUV)
- Output format resolution:640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440x900/
- 1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576
- Frame rate:25/29.97/30/50/59.94/60 fps
- Video sampling rate:HDMI:165MHz
- Audio video acquisition:conform to UVC (USB video class),UAC (USB audio class) specifications
- Output Colour space:YUY2,RGB24
- Dimension:98x55x16mm
- Video processing:colour space convert,hardware colour convert,picture zoom,hardware zoom,image adjust brightness,
contrast ratio,hue,saturation...,ect image adjustion function.
- Achieve low delay video stream design through USB3.0
- The acquisition card USB3.0 standard,uses uncompressed original dates game and near zero-delay speed output.no frame tearing and artifact phenomenon,just over-process video stream


Product Features:
- You don't need to install drive,plug and play
- Compatible Windows, Linux, OS X operation sytem
- USB3.0,300 - 350 mb/s throughput,compatible USB 2.0
- The audio video transmiion is through softdog,It can not take up CPU memory.
- It can collect single-channel HD HDMI video signal.
- It can automatically detect input video frormat and adjust the size and the frame rate for outout video
- The input and output signal can reach 1080p/60 Hz.
- Compatible UVC video acquisition and YUV422 video output.
- USB3.0 video acquisition
- USB3.0 audio acquisition
- HDMI input port:connect to the HDMI output port for DVD,PS3,set-top box and notebook computer
- USB3.0 output port:Connect to the USB3.0 port for the computer or notebook computer
- Power LED indicator:When the device connects to the computer USB port,the light is on.
- Signal LED indicator:When the device normally receive video signal,the light is on.

Connection and application:
- 1.Connect to the signal source with HDMI interface through HDMI wire.Such as blu-ray player,play station,audio/video receiver,satellite receiver.
- 2. Connect to the computer through USB3.0 wire.
- 3.HDMI USB3.0 video softdog is based on UVC (video),UAC (audio) standard.

Note: You don't need to install drive or conduct setting.After operation system is done,related audio video device is added in,equipment Icons can be seen in the windows.

Package List:
- 1 x  Main unit
- 1 x Instructure
- 1 x USB3.0 wire
