10A LS1024B EPsolar LandStar PWM Solar Battery Charge Controller with WIFI

Availability: In stock, usually dispatched in 1 business day

  • Price:$46.99
  • Price in reward points: 470 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $46.05 $45.11 $43.70 $41.82 Contact US
Quantity:

10A LS1024B EPsolar LandStar PWM Solar Battery Charge Controller with WIFI

Description:


New LandStar series is Epsolar’s new generation programmable solar charge controller.  All the models adopt aluminum heat sink  which enables the reliability in high temperature enviroments.RS-485  connects to a remote meter or PC for real-time monitoring, custom setting and control etc.

Features:
- Three system voltage configuration : 12V, 24V or 12V/24V auto work
- High efficiency PWM charging with temperature compensation
- 3 LEDs shows PV charging, battery and load status
- External temperature sensor interface
- RS-485 bus communication
- Open standard Modbus communication protocol
- Software update function

More powerful function via MT50 or PC
- Diversified load control modes : Manual, Light ON/OFF, Light ON+ Timer, Time Control
- Battery type selection: Gel, sealed, flooded and User type
- Real-time monitor
- Programmable parameters
- LVD  or SOC load disconnect function
- Energy statistics function

Electronic Protections
- PV short circuit
- PV reverse polarity
- Battery overcharge
- Battery over discharge
- Battery reverse polarity
- Load short circuit
- Load overload
- Overheating



Specifications:

Electrical parameters LS1024B LS2024B LS3024B
Nominal System Voltage 12 / 24VDC
Rated Battery Current 10A 20A 30A
Maximum PV input voltage 50V
Grounding Common positive
Self-consumption 8.4mA(12V),7.8mA(24V)
Temp. compensation -3mV/C/2V(25 C ref)
Equalize charging voltage Sealed: 14.6V,  Flooded: 14.8V,  User-defined: 9~17V
Boost charging voltage Gel: 14.2V,  Sealed: 14.6V,  Flooded: 14.8V, User-defined: 9~17V
Float charging voltage Gel /Sealed /Flooded: 13.8V,  User-defined: 9~17V
Low voltage reconnect voltage Gel /Sealed /Flooded: 12.6V,  User-defined: 9~17V
Low voltage disconnect voltage Gel /Sealed /Flooded: 11.1V, User-defined: 9~17V
Working temp. -35~+55C
Humidity ≤95% (NC)
Enclosure IP30
Dimension 138.6×69.3x37mm 159.6×81.4×47.8mm 200.6×101.3x57mm
Terminal 4mm2 10mm2 10mm2
Net weight 0.13kg 0.3kg 0.5kg

Package included:
- 1x LS1024 Solar Charge Controller

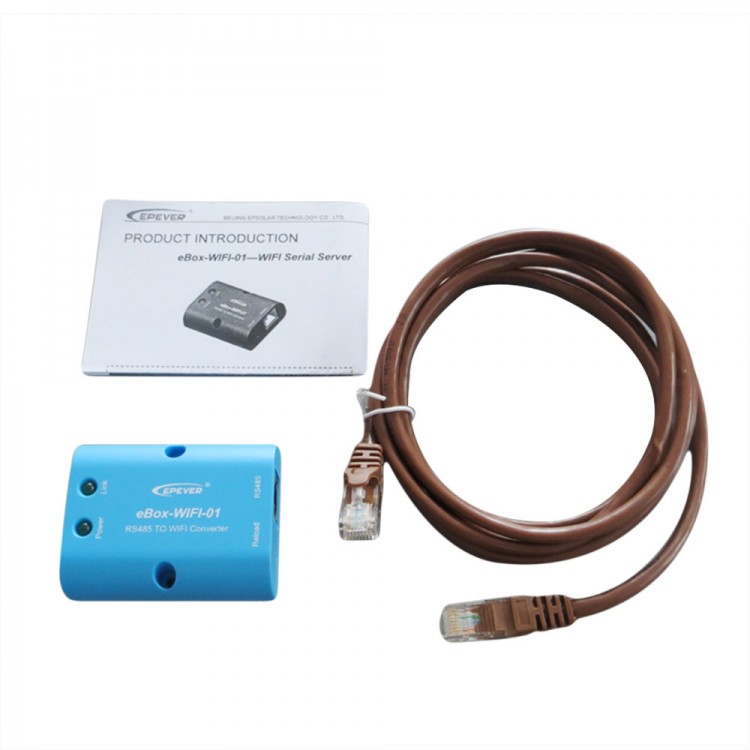

- 1x eBox-WIFI-01 wifi Serial Servere
- 1x User Guide
