Description:
- The connector adopts internal drum shaped reed connector, male and female connector and c-omponent junction box connector are used together, using PPO material, the joint has the ability of aging resistance, which meets the use requirements of the power station under harsh conditions.
Features:
- Adopts high strength waterproof r-ing, waterproof and dust proof, waterproof level is IP67.
- Connections are connected by compression, male and female heads ith self-locking mechanism, open and close freely.
- The product's contact heads are provided with guide insulator, p-lay a role in guiding and preventing electric shock.
- Simple operation steps, convenient wiring.
- This solar panel connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions.
Specifications:
- Power voltage: 1000V
- Rated current: 4mm2-25A, 6mm2-30A
- Test voltage: 6KV (50Hz)
- Protection rating: IP67
- Insulation material: PPO
- Contact material: tinned copper
- Operating temperature: -40°C to 90°C
- F-lame retardant grade: UL94-V0 grade
- Plug connector: ≤5mΩ contact resistance
- Inserting force: ≤ 50n
- Take power: ≥50n
- Suitable cable: 2.5mm2, 4mm2, 6mm2 (AWG14/12/10)
- Package size: 100 * 100 * 50mm / 3.9 * 3.9 * 2.0in
- Package weight: 280g / 9.9ounce

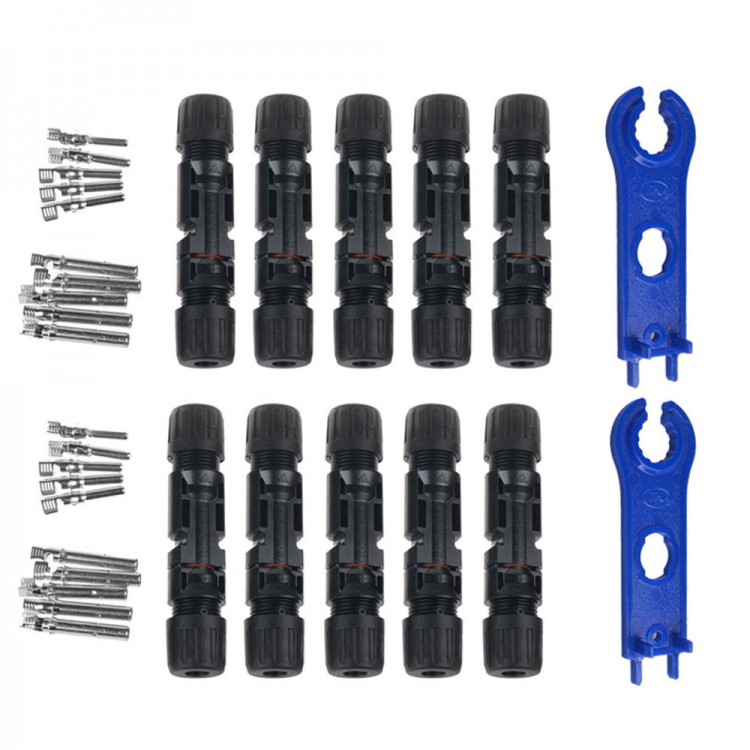

Packing List:
- 10 * Pairs of Solar Connector
- 2 * Wrench
