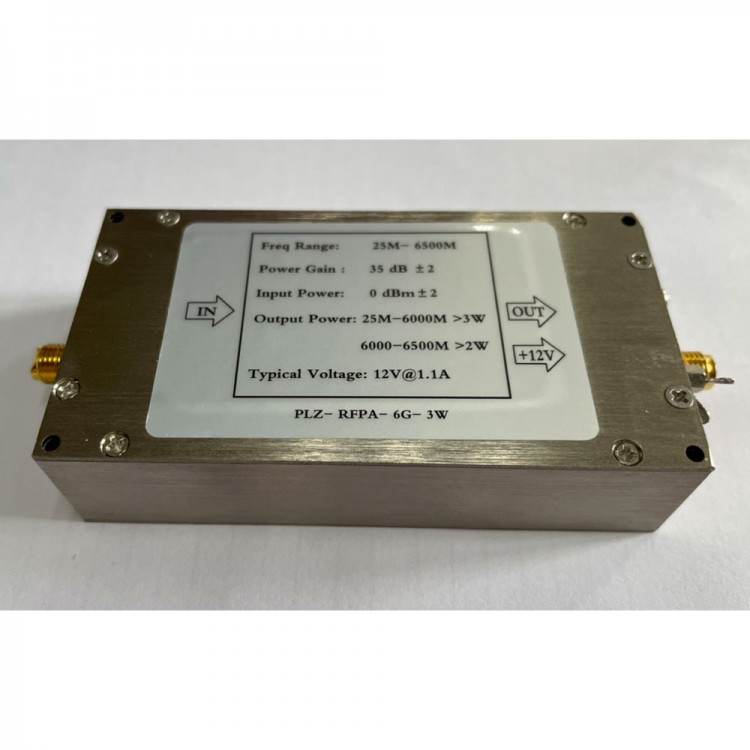

12V 30 - 6500MHz 3W RF Power Amplifier Signal Source and Interference Source Amplifier with Ultra Wide Band and High Gain
Description:
- The amplifier is powered by 12V, with a static current of 330mA and a working current of 1.0A~1.3A. It has a small size and a wide operating frequency band, covering the U/V/L/S/C band with a low frequency of 30M to a high frequency of 6500M. In the full frequency range of 30M-6500M, the output power is 2 - 4W, which can be used as an output power amplifier for signal sources, EMC testing, output power interference amplifier for unmanned aerial vehicles, and as a driver stage for ultra-wide band high-power amplifiers.
Specification:
- Working frequency: 30M - 6500MHz
- Typical voltage: 12V/1.1A
- Input power: 0dBm
- Gain: 23 ~ 27dB
- Size: 60 x 45 x 17mm
- Saturation power: > 3W at 30M - 6000MHz; > 2W at 6000M - 6500MHz
Package Included:
- 1 x RF Power Amplifier
