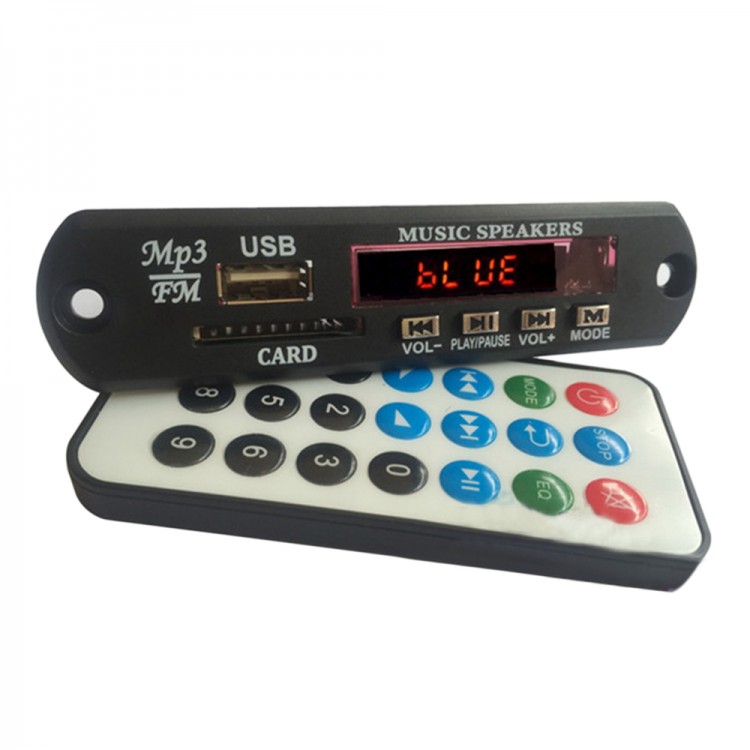

• 12V Bluetooth Lossless Decoder WAV+FLAC+MP3 Decoding Board Player for Amplifier DIY

12V Bluetooth Lossless Decoder WAV+FLAC+MP3 Decoding Board Player for Amplifier DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$12.19
  • Price in reward points: 122 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $11.95 $11.70 $11.34 $10.85 Contact US
Quantity:

12V Bluetooth Lossless Decoder WAV+FLAC+MP3 Decoding Board Player for Amplifier DIY

Description:

Support computer USB sound card; support Bluetooth music transmission; 3.5mm AUX input ;
Support lossless FLAC, WAV, wma, MP3 decoding; support fast forward, rewind and play.
No amplifier.

Specification:
- Panel size: 108*26*25mm
- Opening size: 84*20mm
- Center hole: 94mm

Card reader and USB sound card operation instructions:
1. USB cable connect to USB of the computer. The computer will automatically install the USB driver, SD card file on the decoder upload to the computer or the computer file download to the SD card (at this time display shows "PC").
2. At this time can also open the computer (PC) player through the decoder to play the computer (PC) side of the music (that is, USB sound card function).

Bluetooth instructions:
Press the MODE button to switch to blue (Bluetooth) state, set the phone to find Bluetooth options, search for Bluetooth devices, the search to the Bluetooth product name, and paired connection, individual mobile phone to enter the password (0000) were paired, mobile phones and Bluetooth module matching connection, through the phone MP3 or lossless ape file will be through the Bluetooth mobile phone to send to the Bluetooth receiving module play (this product without Bluetooth calls function ).

Connection description:
- 2P elements: +B connected to the 7-12V DC power supply, GND cathode;
- 3P elements: RIN outside the sound of the left channel, G outside the sound, LIN outside the sound track;
- 3P elements: R left channel output, G audio, L right channel output;
- Ant1 white transposon is the position of the welding radio antenna and radio antenna can be more than 1 meter copper wire or rod antenna selection and radio effect depending on the different geographical environment and different.

Note: This product can be used 7V-12V DC power supply; also can be changed to DC 5V power supply (Short circuit the 78M05 two pin on the decoder board)

Package included:
- 1 x Decoder
- 1 x Remote controller
- 1 x Power cord
- 2 x 3P audio cable
